O2 Sensor

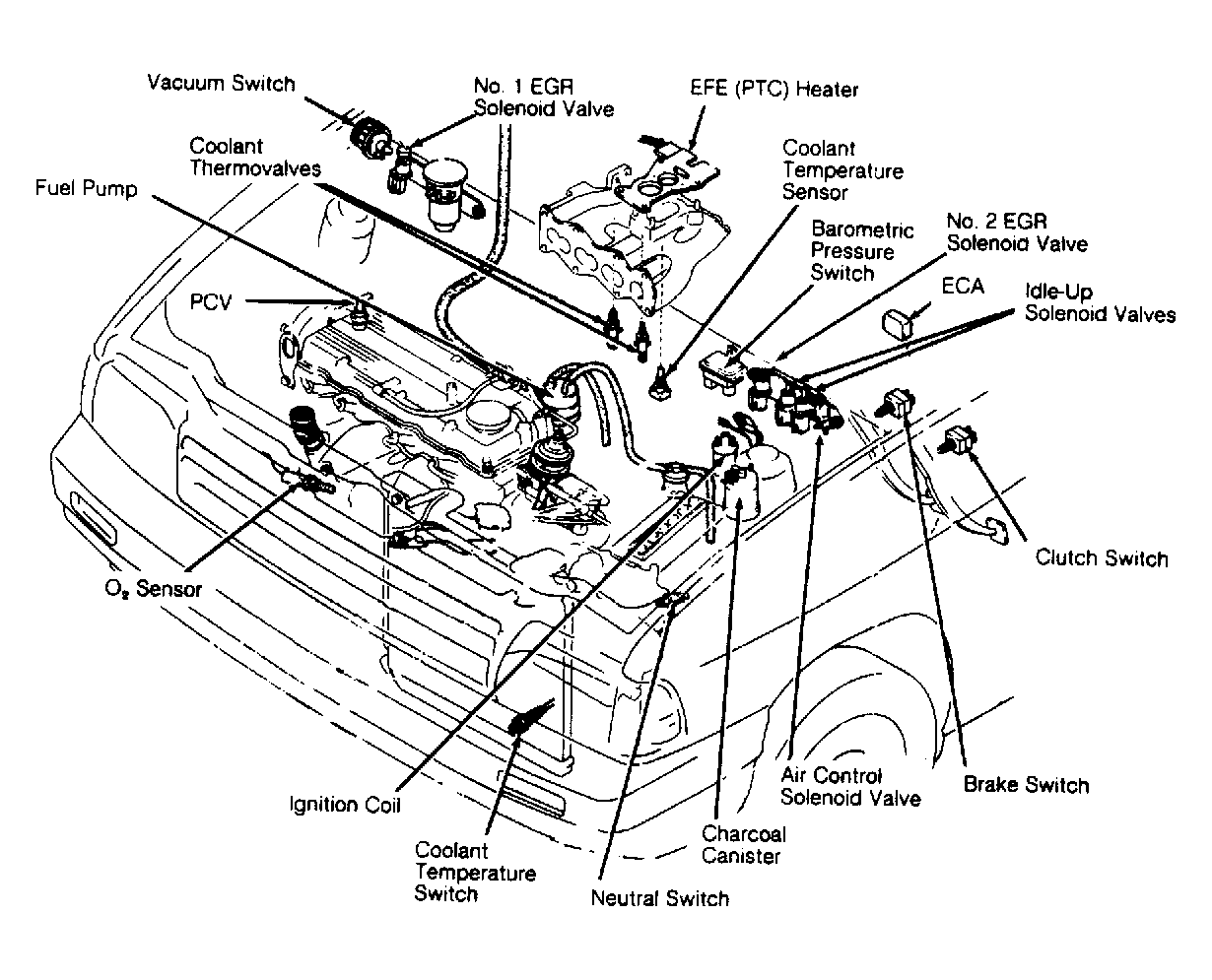

  1. Warm engine to normal operating temperature and allow to idle. Connect voltmeter between O2 sensor connector and ground. See Figure .
  2. Run engine at 4000 RPM until voltmeter reads .7 volts. Increase and decrease engine RPM suddenly and several times. When engine RPM is increased, voltmeter should read .5-1.0 volt. When engine RPM is decreased, voltmeter should read 0-.4 volt. Replace defective O2 sensor.
