Toe-In (Front)

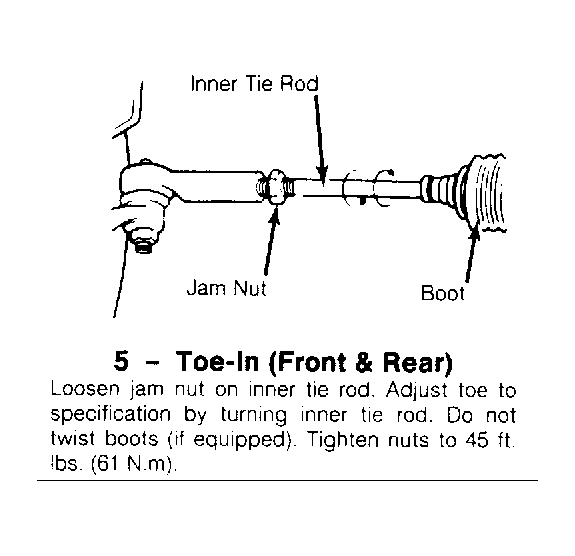

Loosen jam nut on inner tie rod. Adjust toe to specification by turning inner tie rod. DO NOT twist boots (if equipped). Tighten nuts to 45 ft. lbs. (61 N.m). See Fig 1 .
Loosen jam nut on inner tie rod. Adjust toe to specification by turning inner tie rod. DO NOT twist boots (if equipped). Tighten nuts to 45 ft. lbs. (61 N.m). See Fig 1 .
