Code Format Diagrams

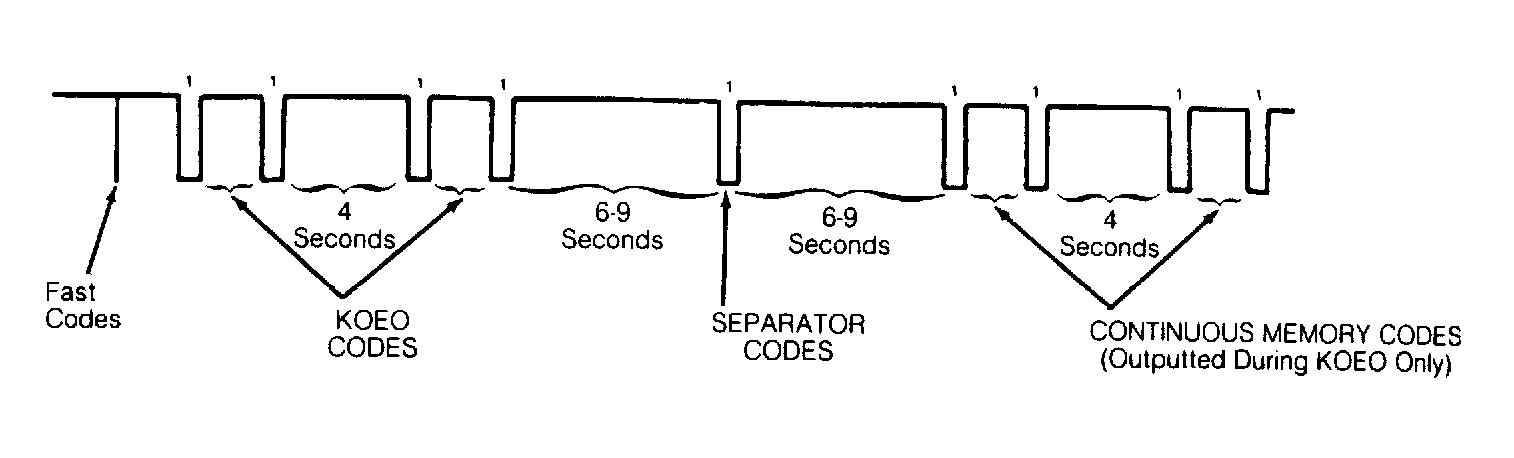

Fig 1: Code Format Diagrams (Part 1 of 3)
G108532Courtesy of FORD MOTOR CO.

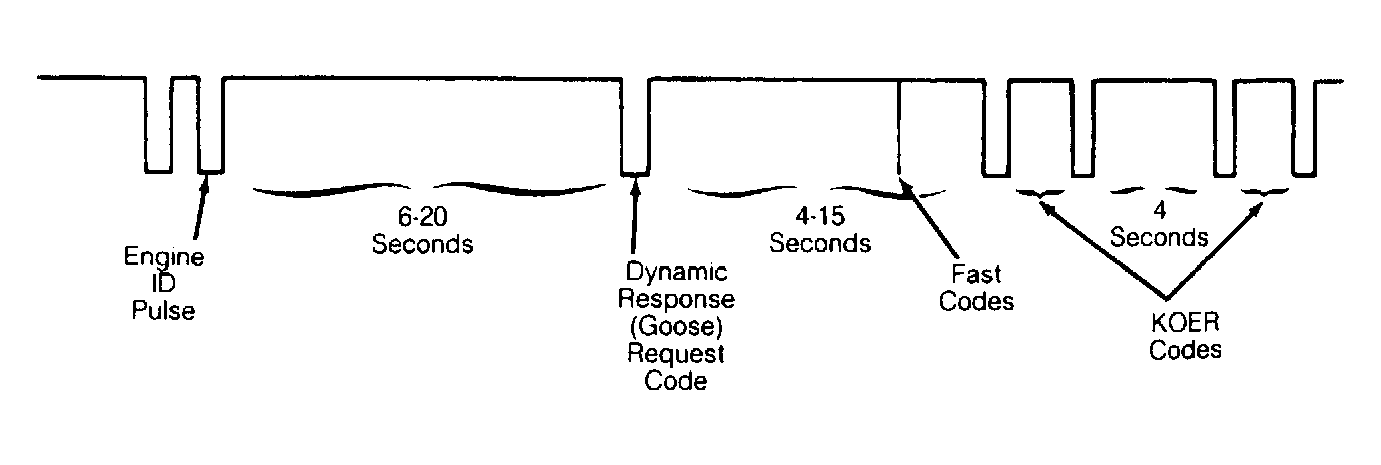

Fig 2: Code Format Diagrams (Part 2 of 3)
G108533Courtesy of FORD MOTOR CO.

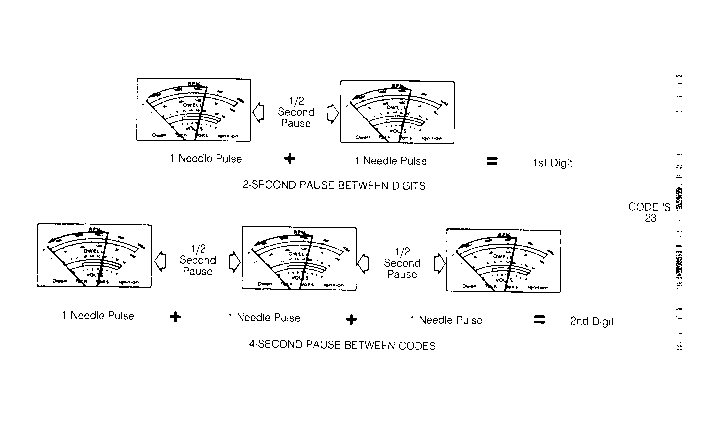

Fig 3: Code Format Diagrams (Part 3 of 3)
G108534Courtesy of FORD MOTOR CO.

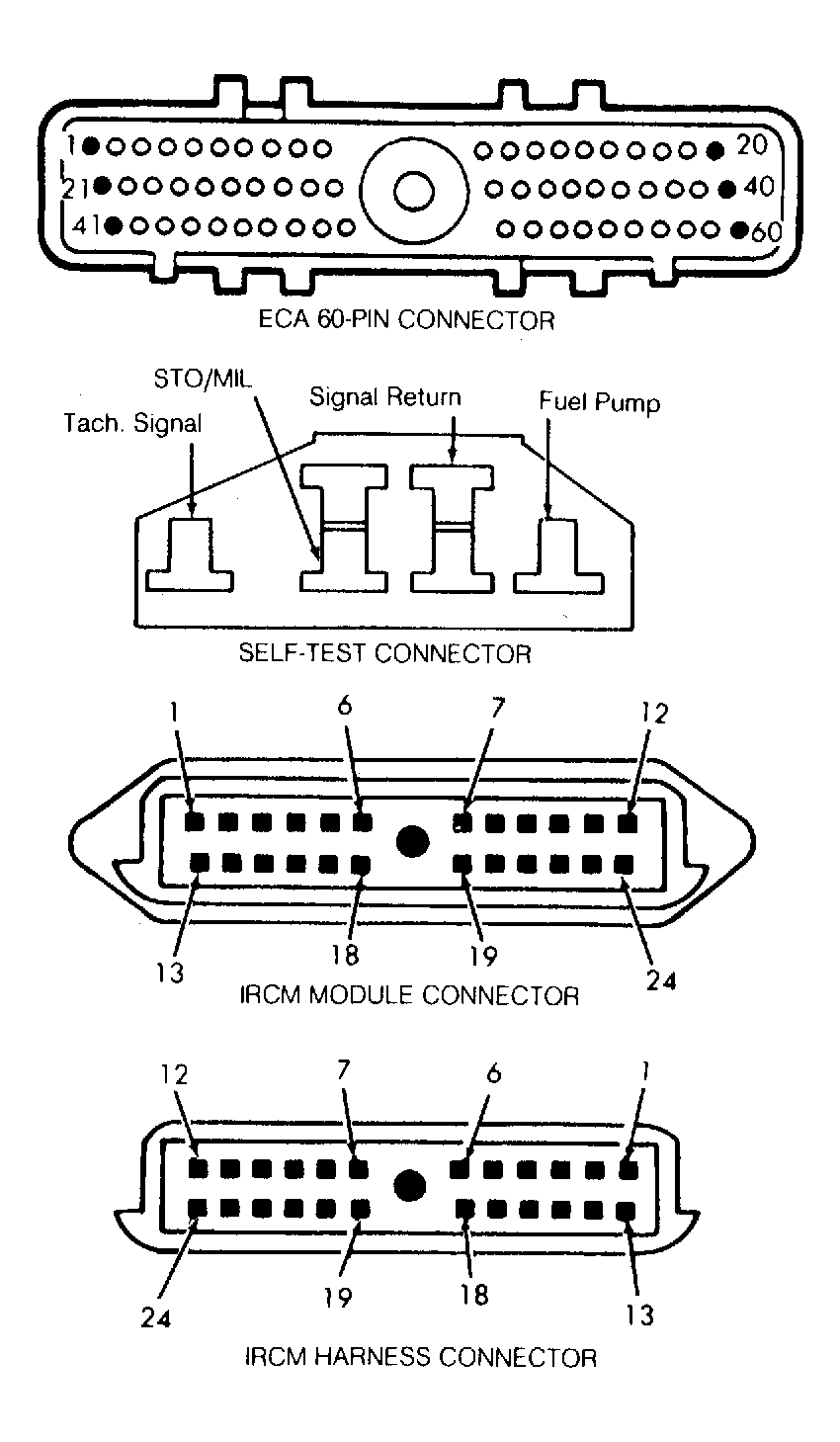

Fig 4: ECA Connector Pin Diagram
G108650Courtesy of FORD MOTOR CO.

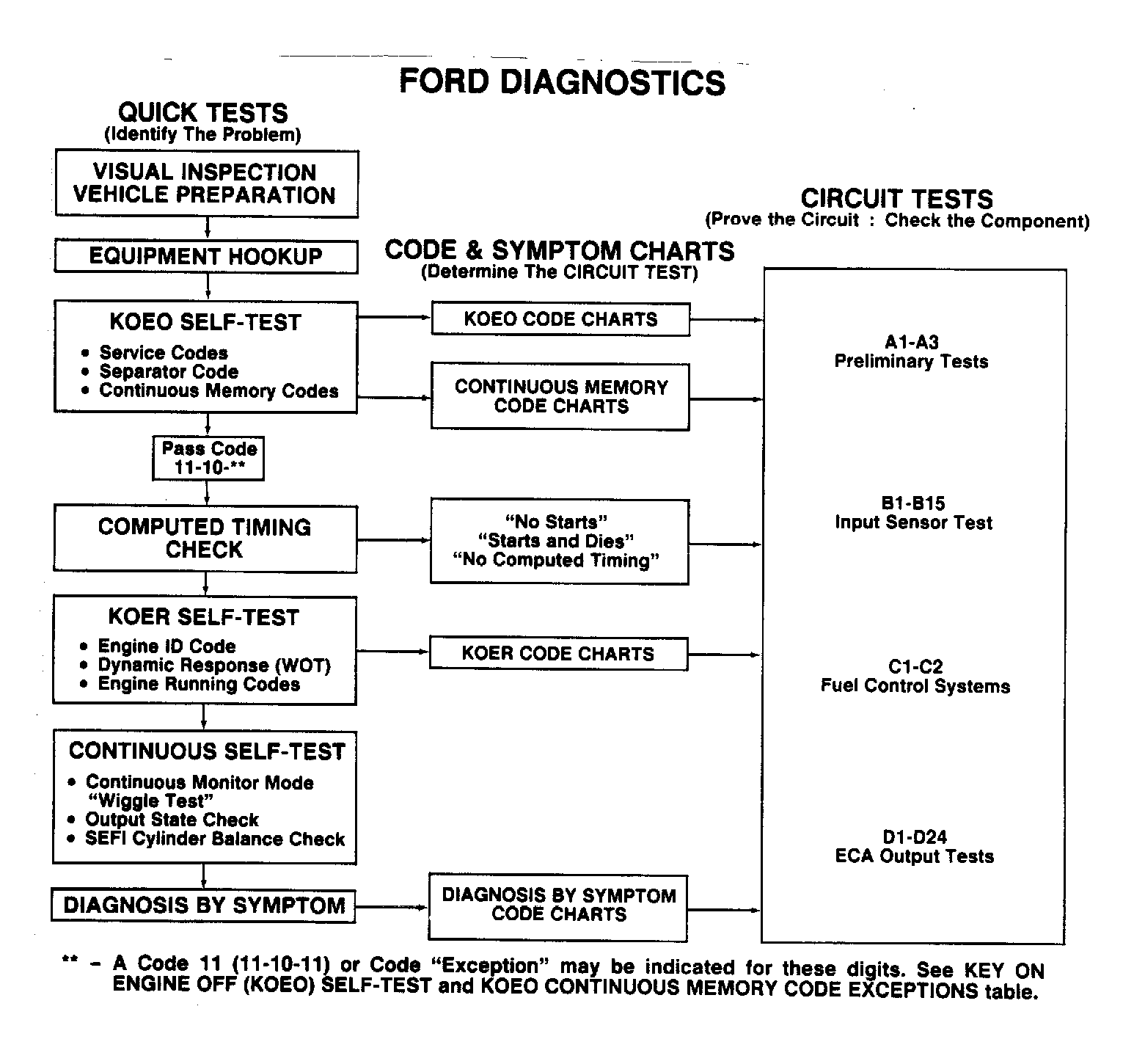

Fig 5: Ford Diagnostics Chart
G112595Courtesy of FORD MOTOR CO.
