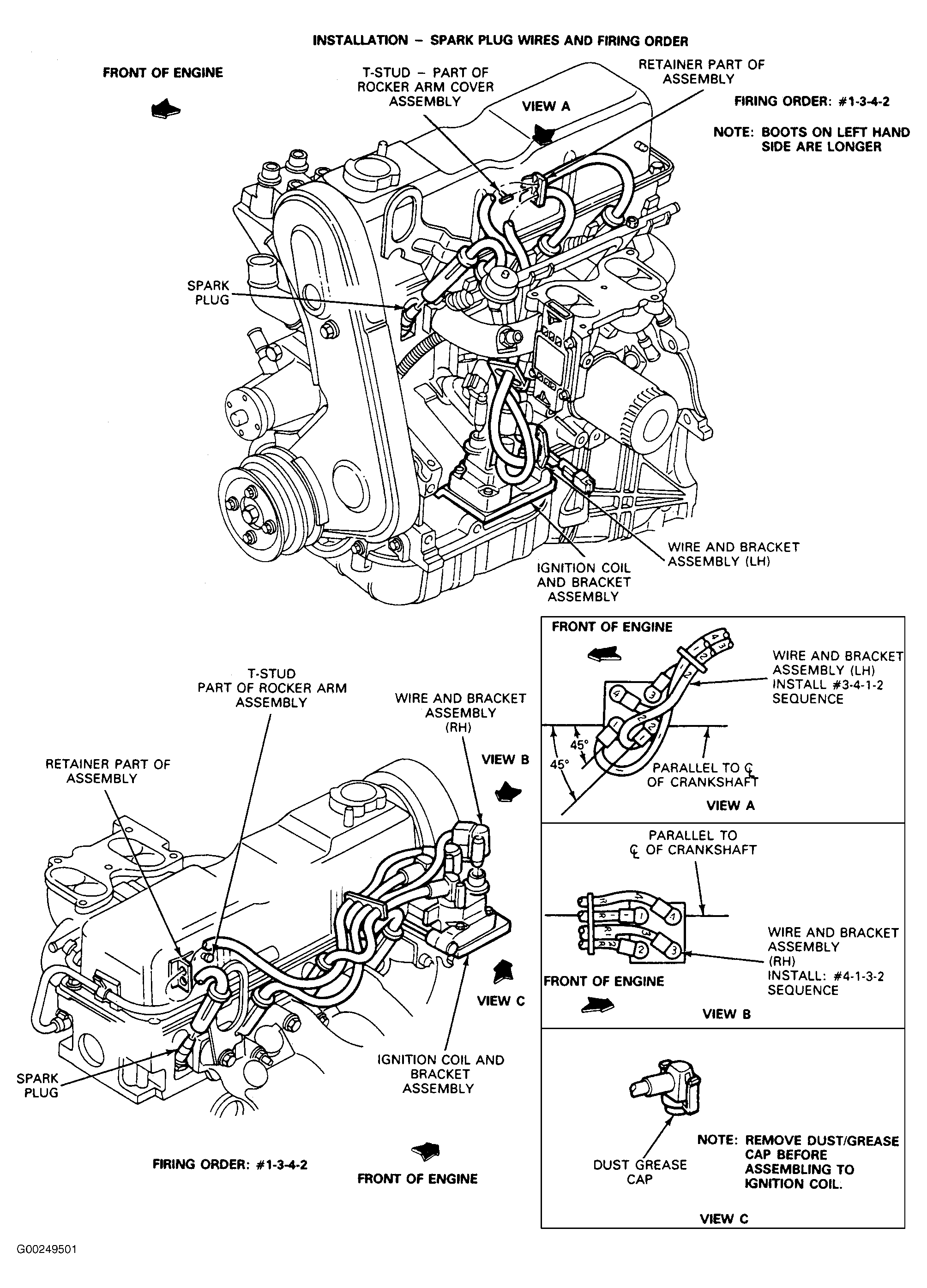

Home >> Ford >> 1990 >> Bronco II RWD, Standard, M5OD-R1 >> Repair and Diagnosis >> Engine Performance >> Specifications >> Engine Controls - Specifications >> Ignition System >> Firing Order >> Spark Plug Wire Routing (2.3L)
