Service Point Locations

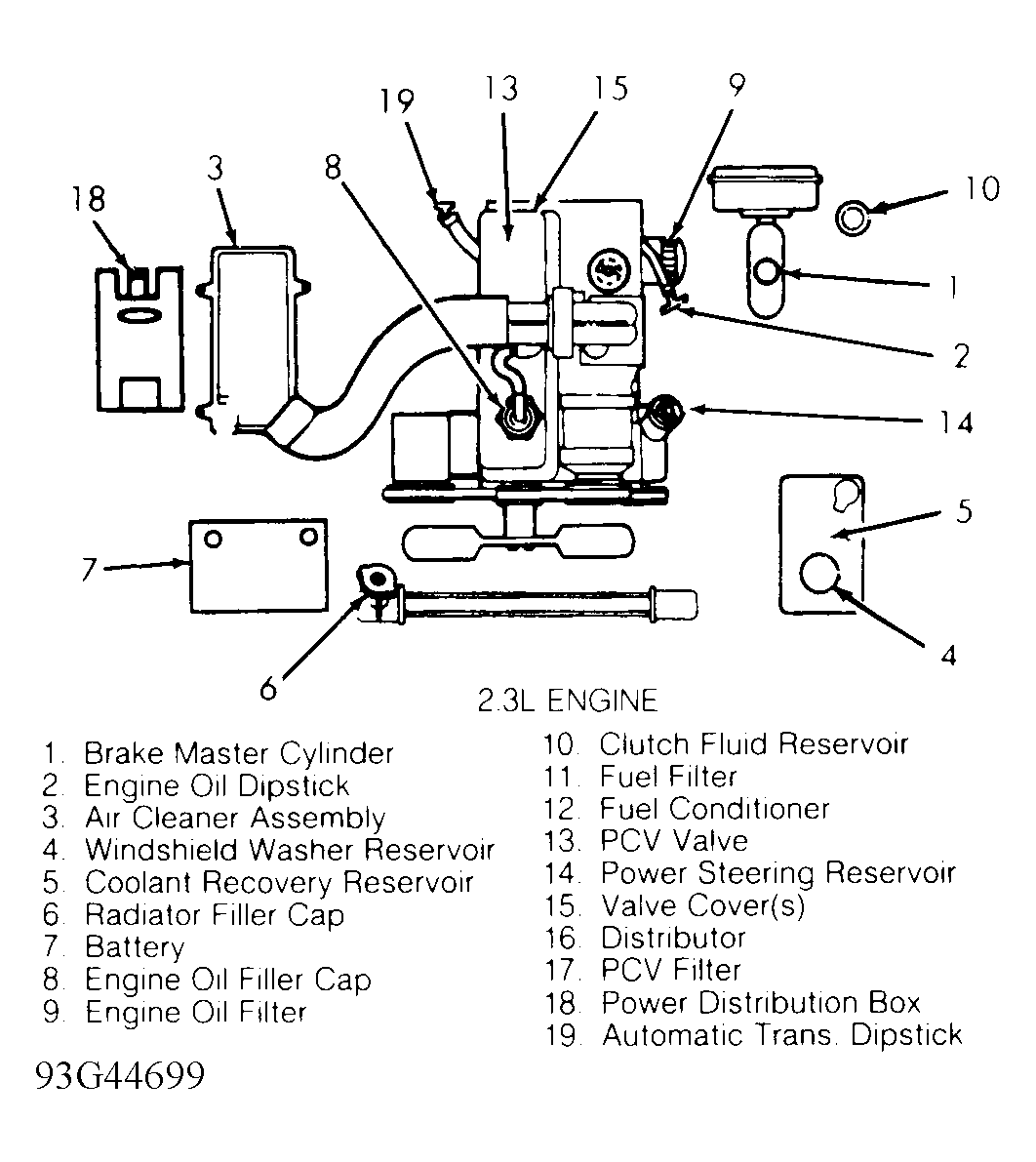

Fig 1: Service Point Locations (2.3L Engine)

Courtesy of FORD MOTOR CO.

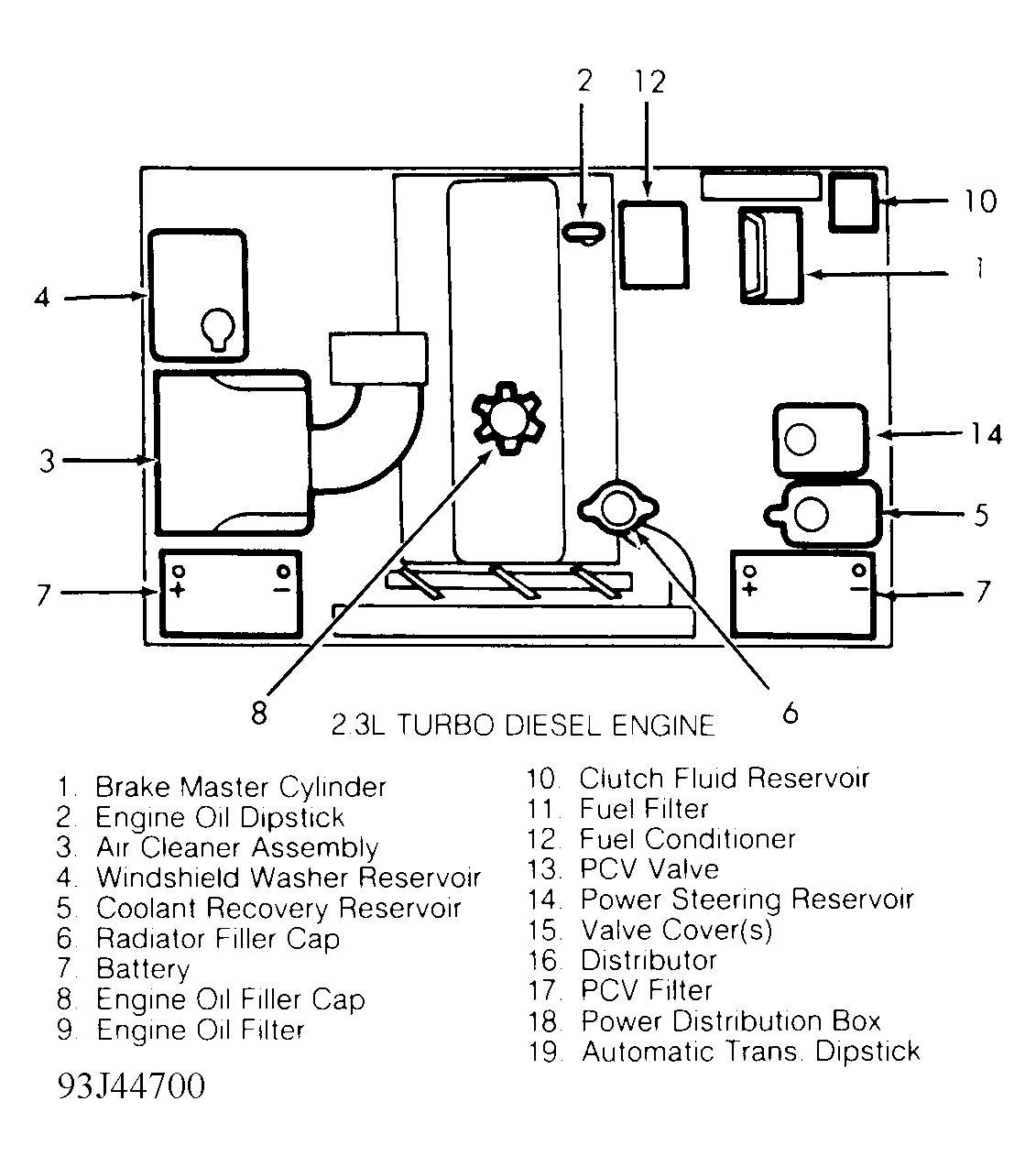

Fig 2: Service Point Locations (2.3L Turbo Diesel Engine)

Courtesy of FORD MOTOR CO.

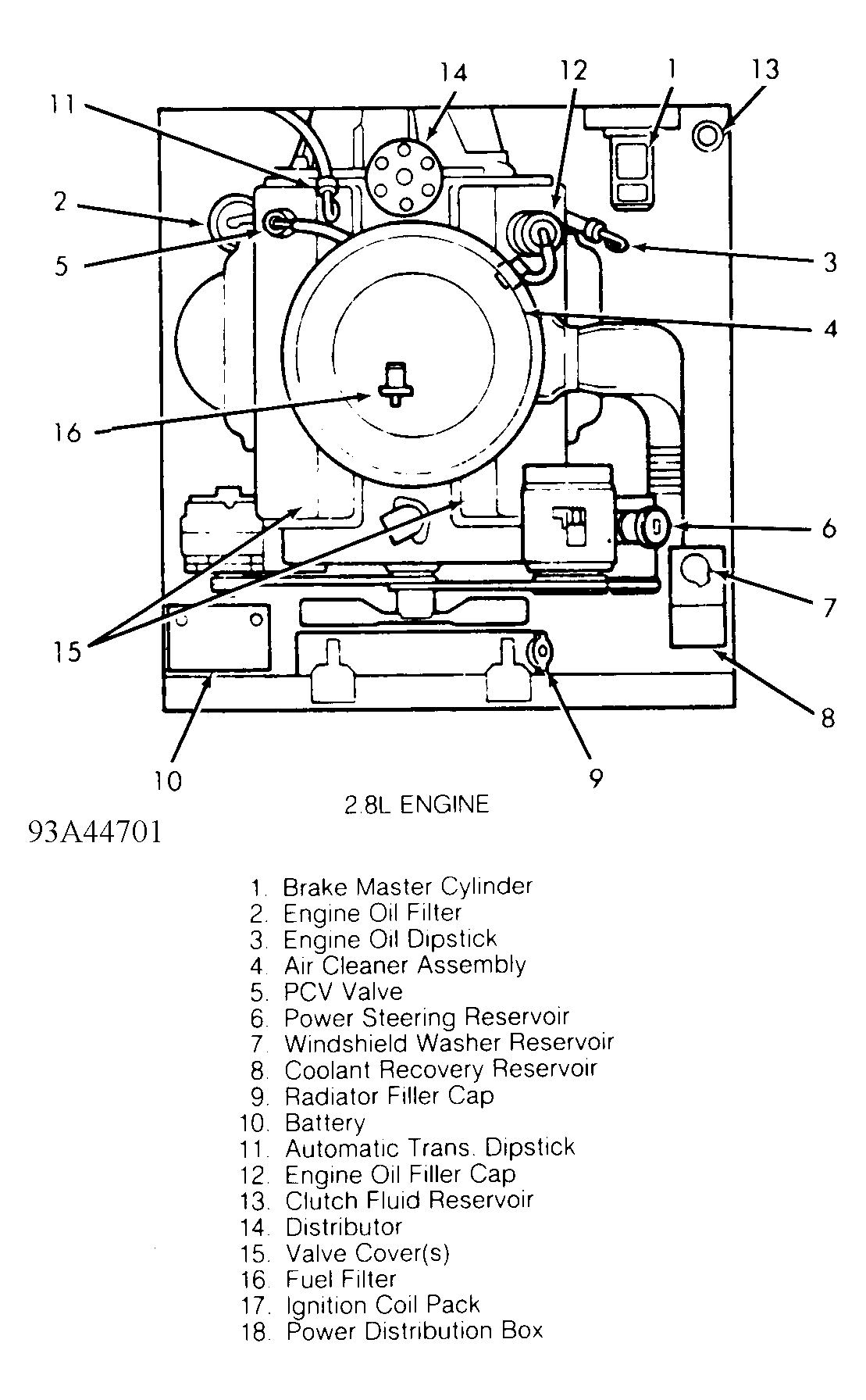

Fig 3: Service Point Locations (2.8L Engine)

Courtesy of FORD MOTOR CO.

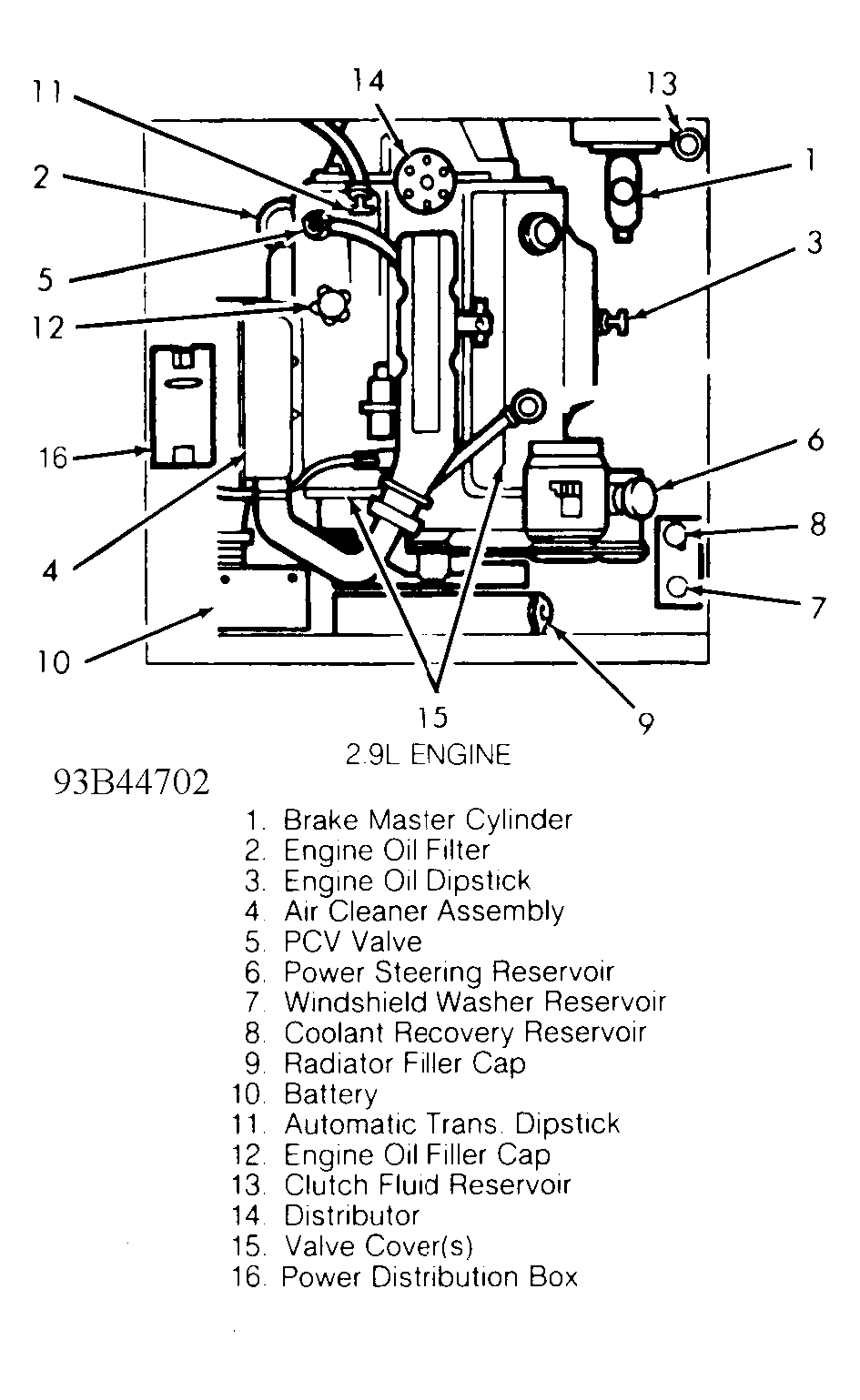

Fig 4: Service Point Locations (2.9L Engine)

Courtesy of FORD MOTOR CO.
