Pull-In Test

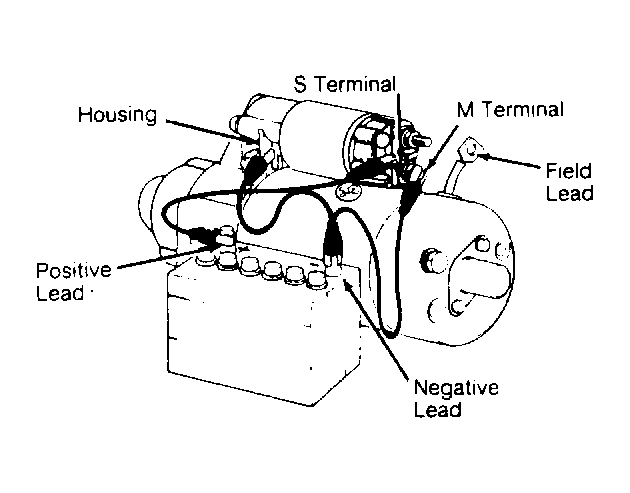

Connect test leads to starter. See Figure. Connect negative leads to starter housing and "M" terminal. Connect battery positive lead to "S" terminal. If starter drive pinion does not move out, replace solenoid.
CAUTION:
DO NOT engage starter solenoid for more than 10 seconds during testing or damage to coil winding may result.
