Abs Signal Check 1

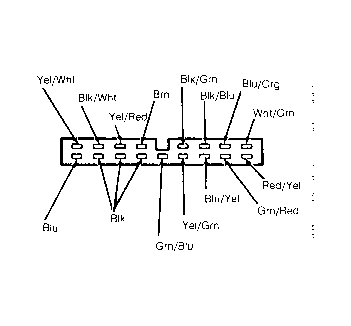

- Disconnect ABS control unit 17-pin connector. See Fig 1 . ABS connector is located at ABS control module under left front seat.
- If ABS warning light goes off, problem is indicated in ABS system. Repair as necessary. If ABS warning light does not go off, repair Blue/Yellow wire between ABS control unit and instruments.
