Ford
>>
1993
>>
Probe Base, Automatic
>>
Repair and Diagnosis
>>
Body & Frame
>>
Power Windows
>>
Wiring Diagrams
Wiring Diagrams

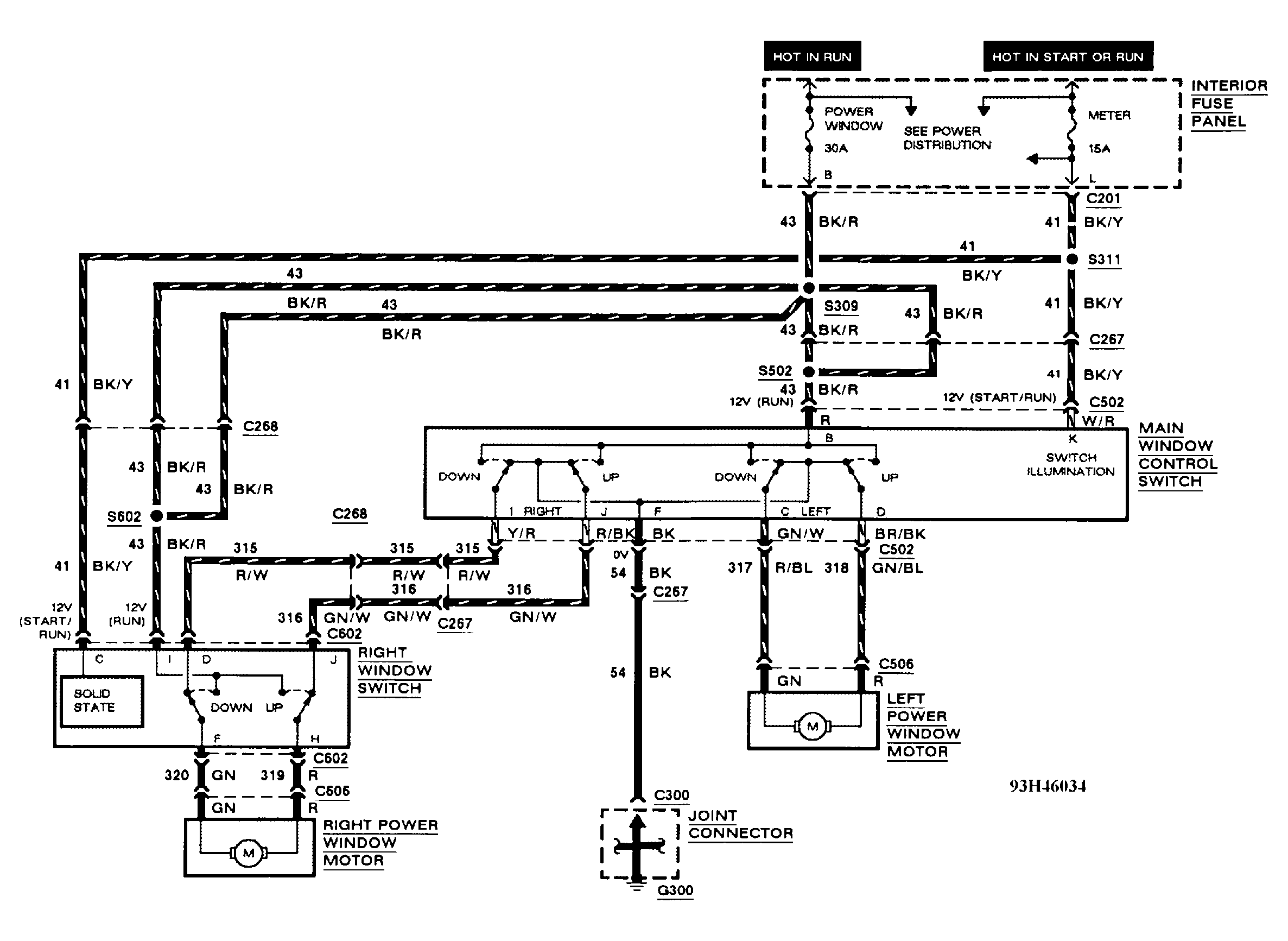

Fig 1: Power Windows Wiring Diagram (Probe)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
