Terminal Identification

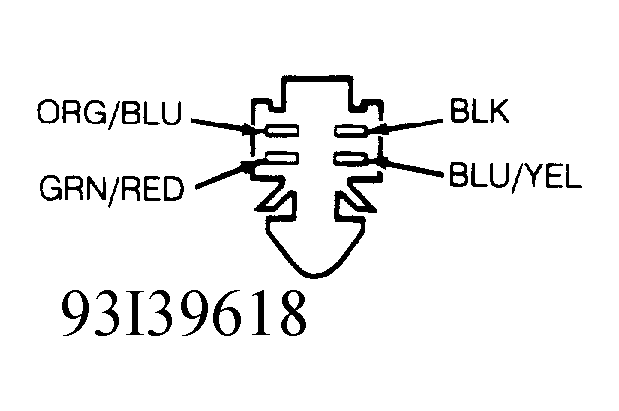

Fig 1: Identifying Test Connector Terminals
G93I39618Courtesy of FORD MOTOR CO.

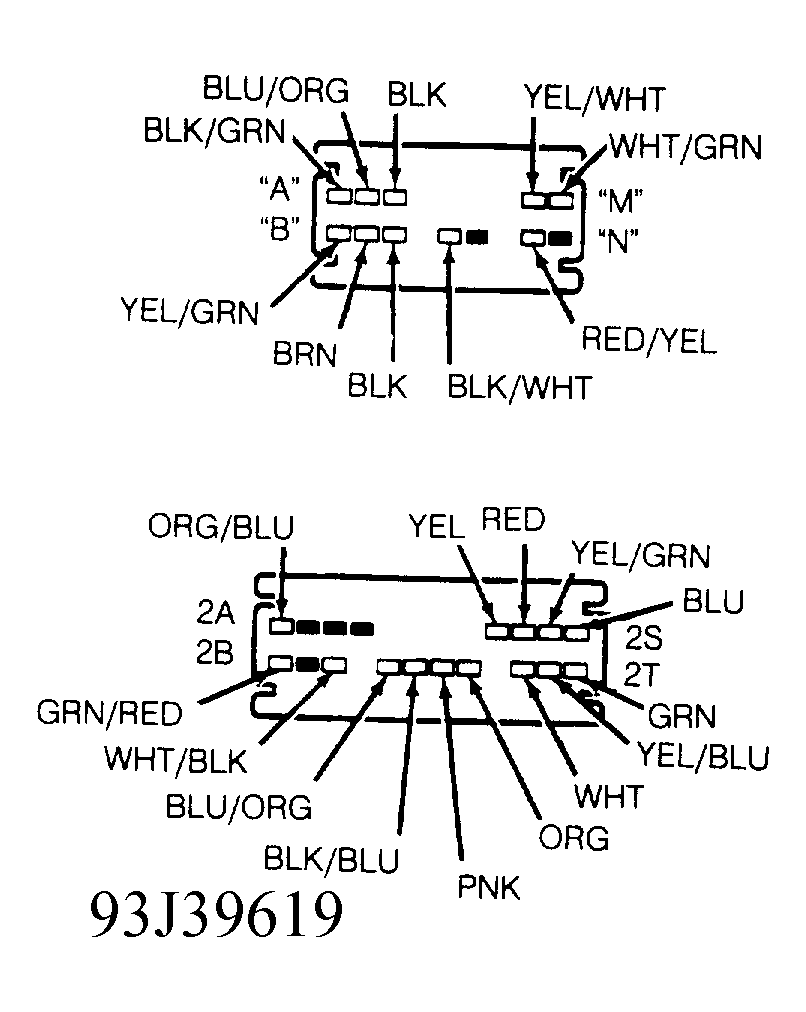

Fig 2: Identifying ABS Control Module Connector Terminals
G93J39619Courtesy of FORD MOTOR CO.

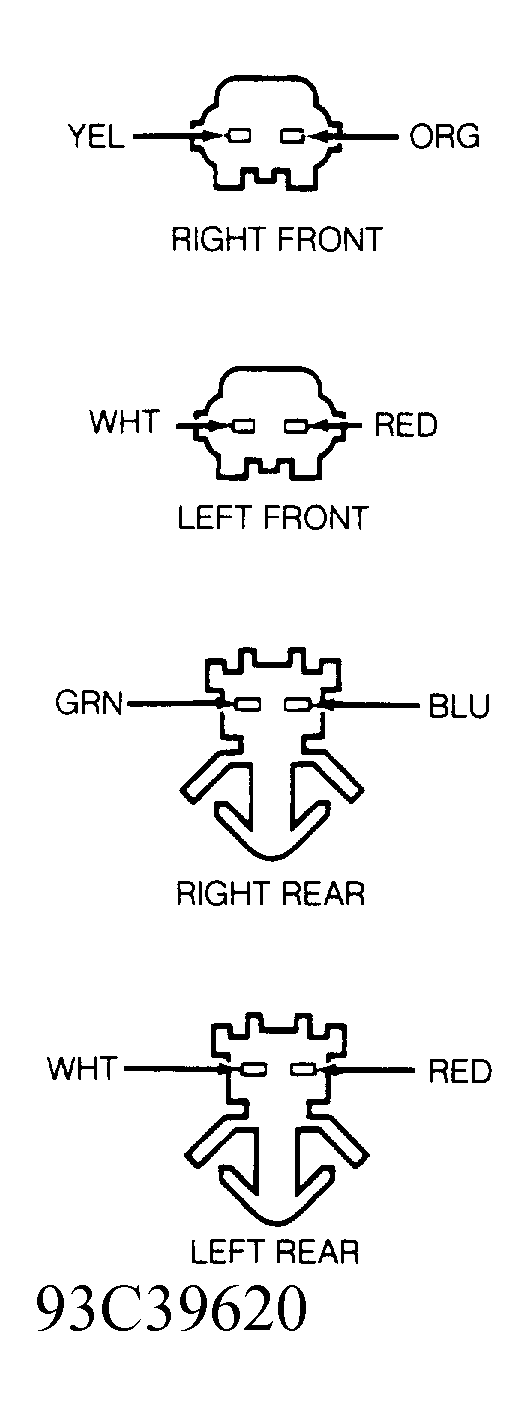

Fig 3: Identifying Wheel Speed Sensor Connector Terminals
G93C39620Courtesy of FORD MOTOR CO.

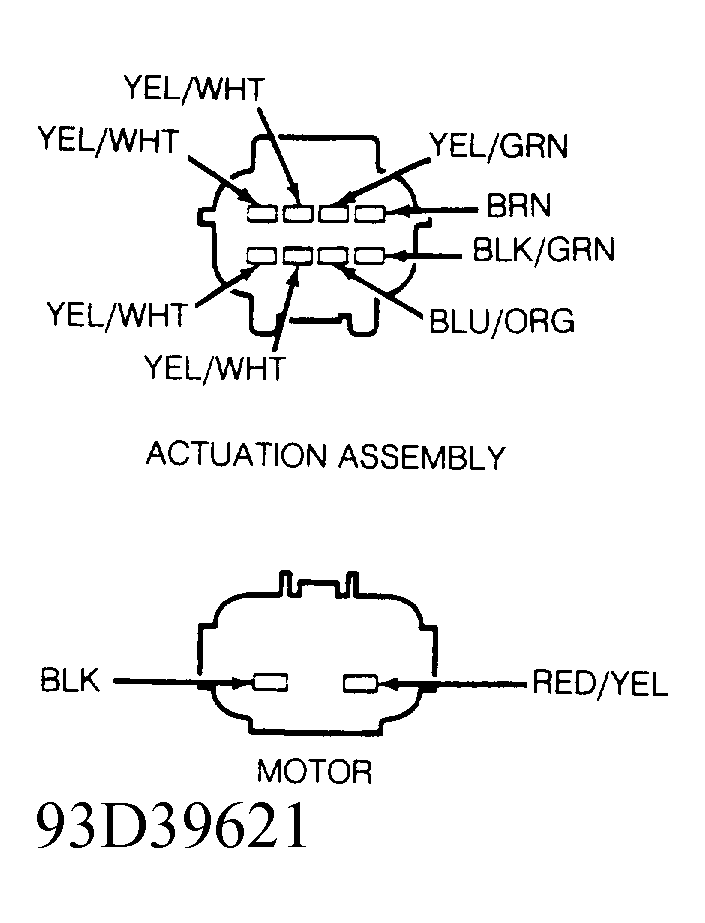

Fig 4: Identifying Actuator Assembly Connector Terminals
G93D39621Courtesy of FORD MOTOR CO.

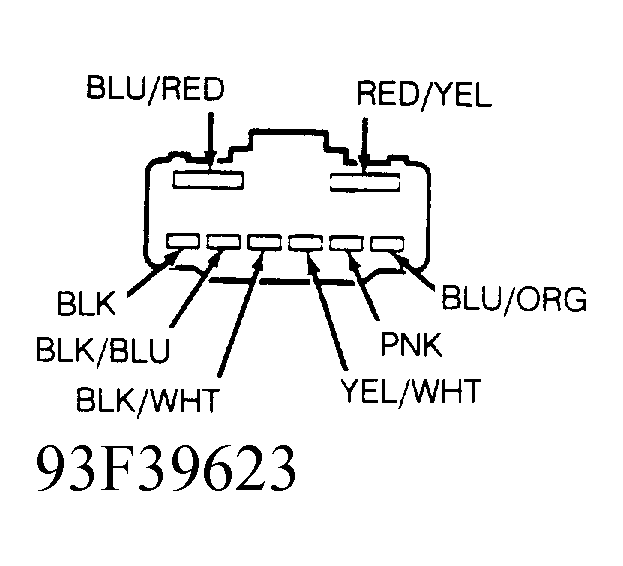

Fig 5: Identifying Fail-Safe Relay Connector Terminals
G93F39623Courtesy of FORD MOTOR CO.
