Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Module | On floor, under passenger's seat. |

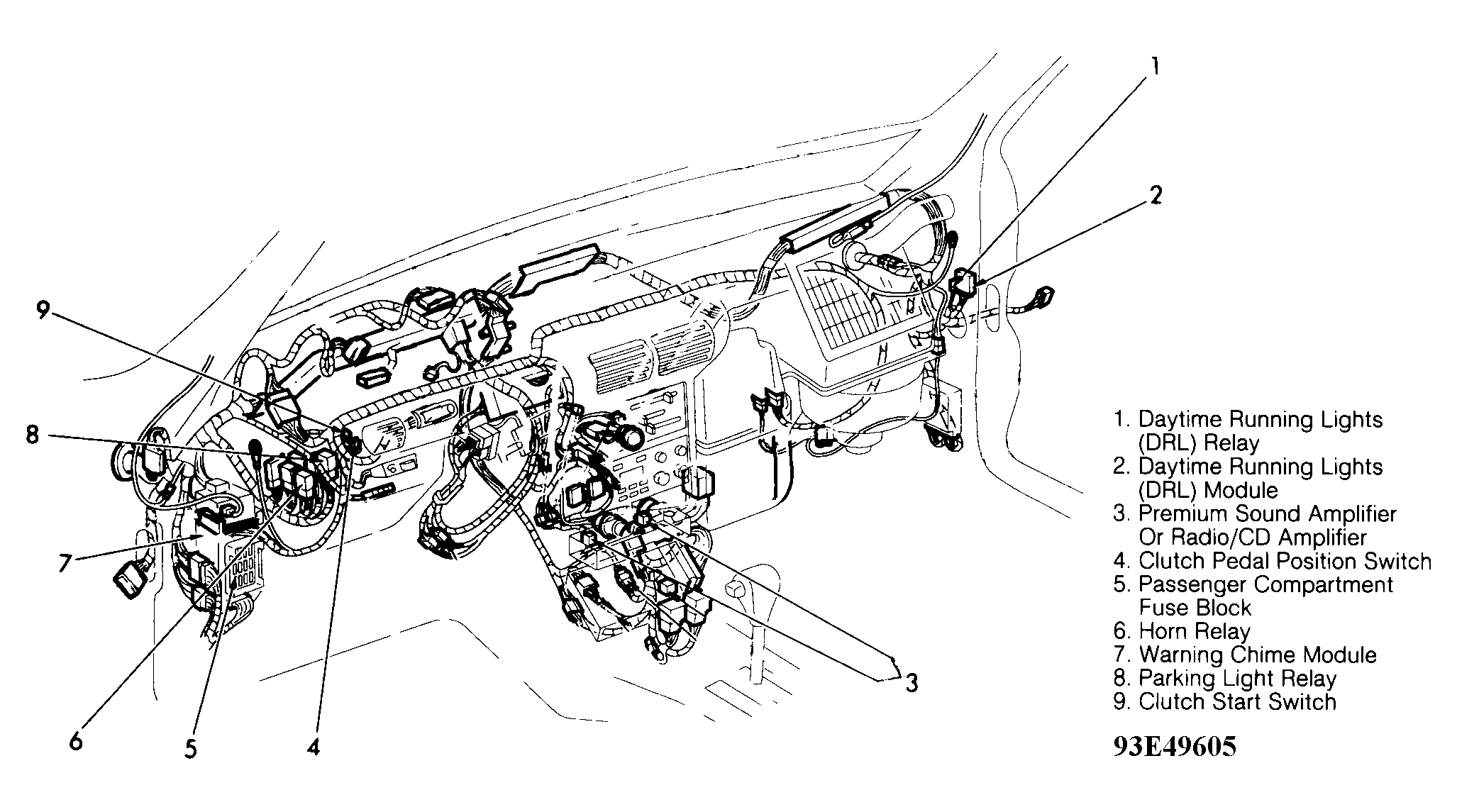

| Daytime Running Lights (DRL) Module | Above right kick panel. See Figure . |

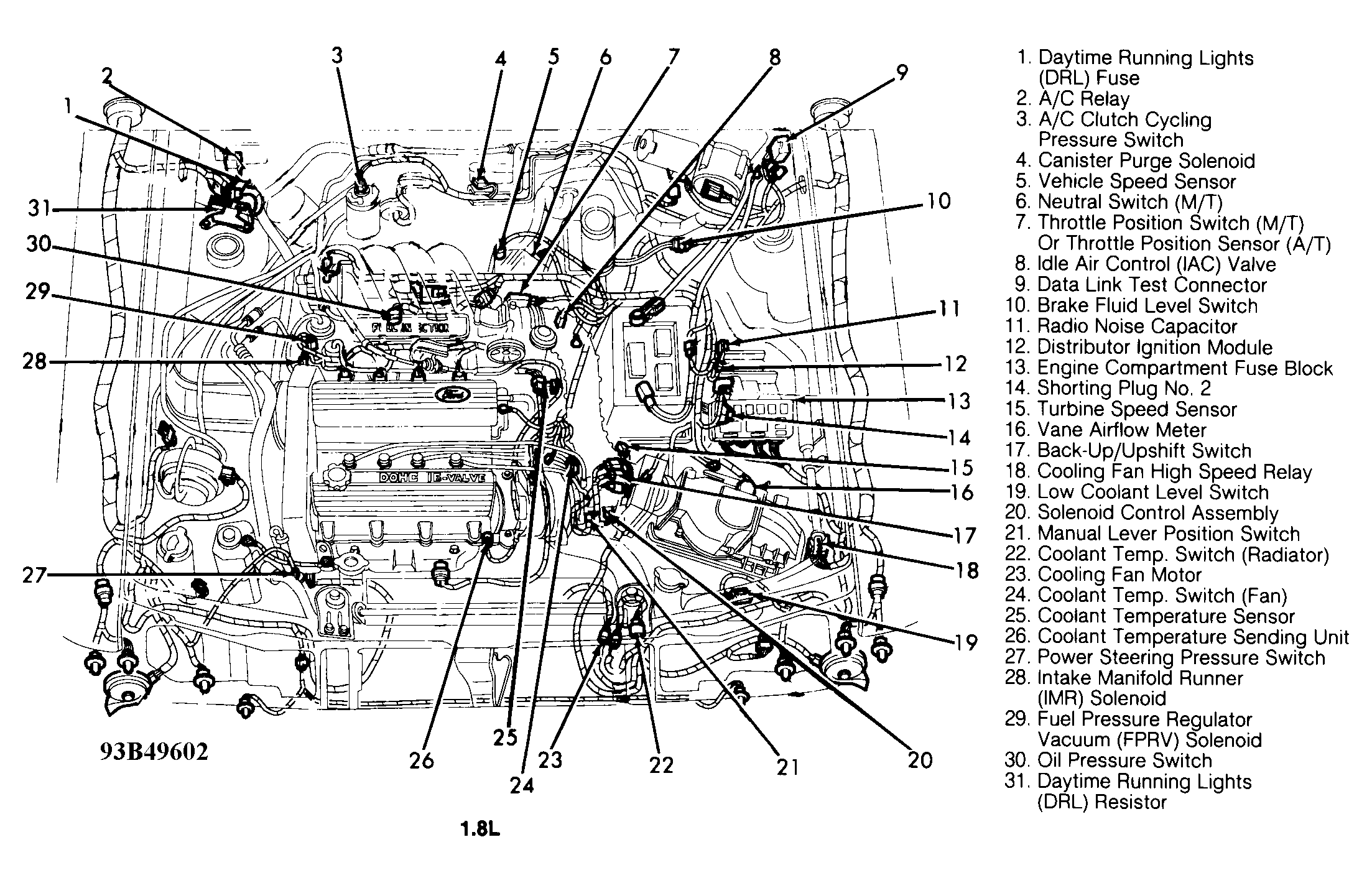

| Distributor Ignition Module (1.8L) | Behind engine bay fuse block. See Figure . |

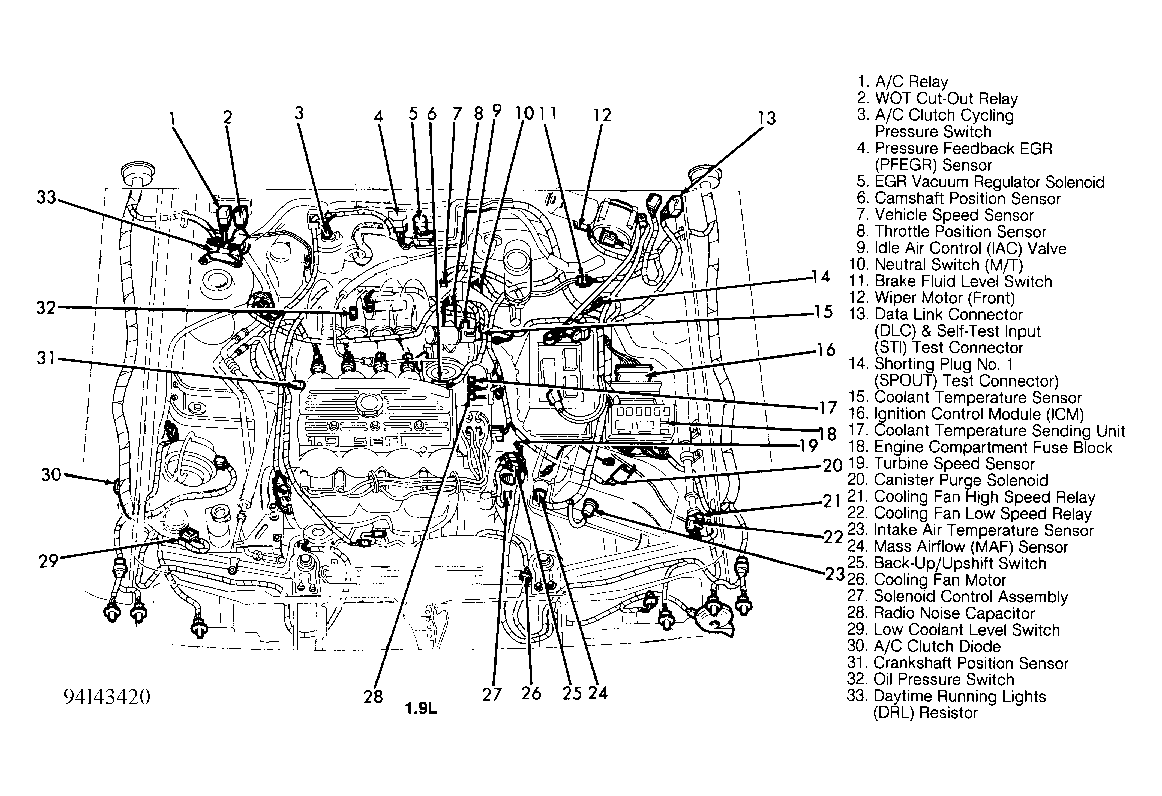

| Ignition Control Module (ICM - 1.9L) | Behind engine bay fuse block. See Figure . |

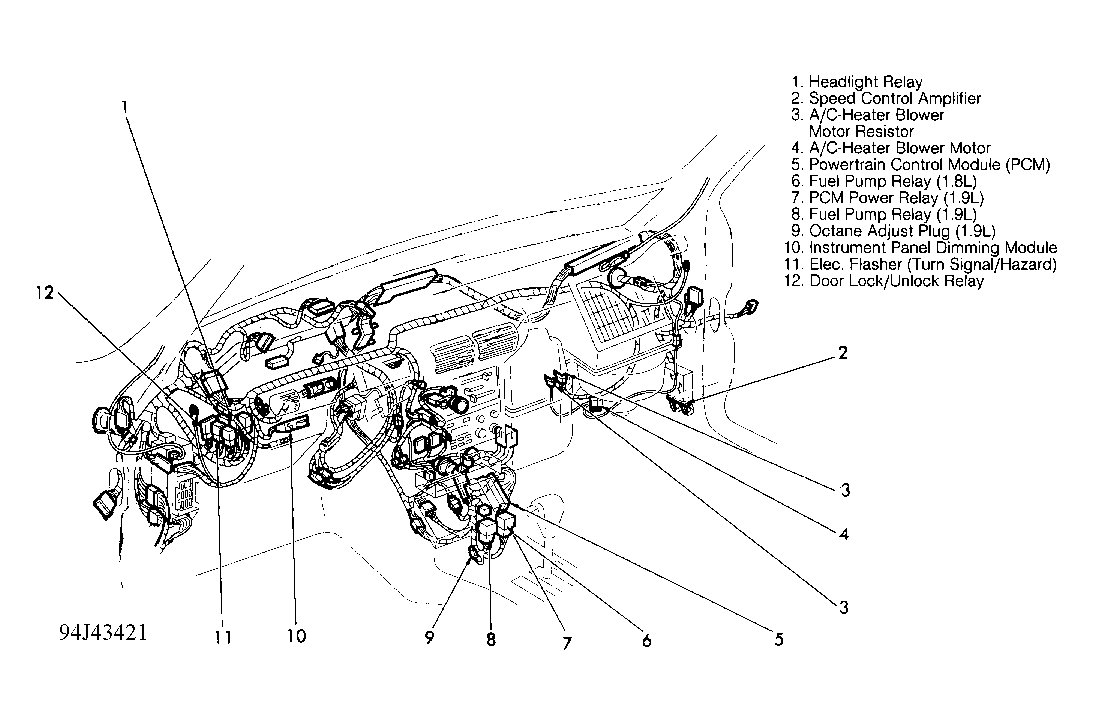

| Instrument Panel Dimming Module | Behind left side of dash, left of steering column. See Figure . |
| Passive Restraint Module | Under driver's seat. |
| Powertrain Control Module (PCM) | Forward of center console. See Figure . |
| Warning Chime Module | On rear of passenger compartment fuse block. See Figure . |
