Component Locations

COMPONENT LOCATIONS

Component	Location
Circuit Breaker (20 A)	In Fuse Panel, Below Left Side Of Dashboard
Ground G201	Behind Bottom Of Left Kick Panel
Power Window Switch	In Door Trim Panel
Power Window Motor	Inside Door

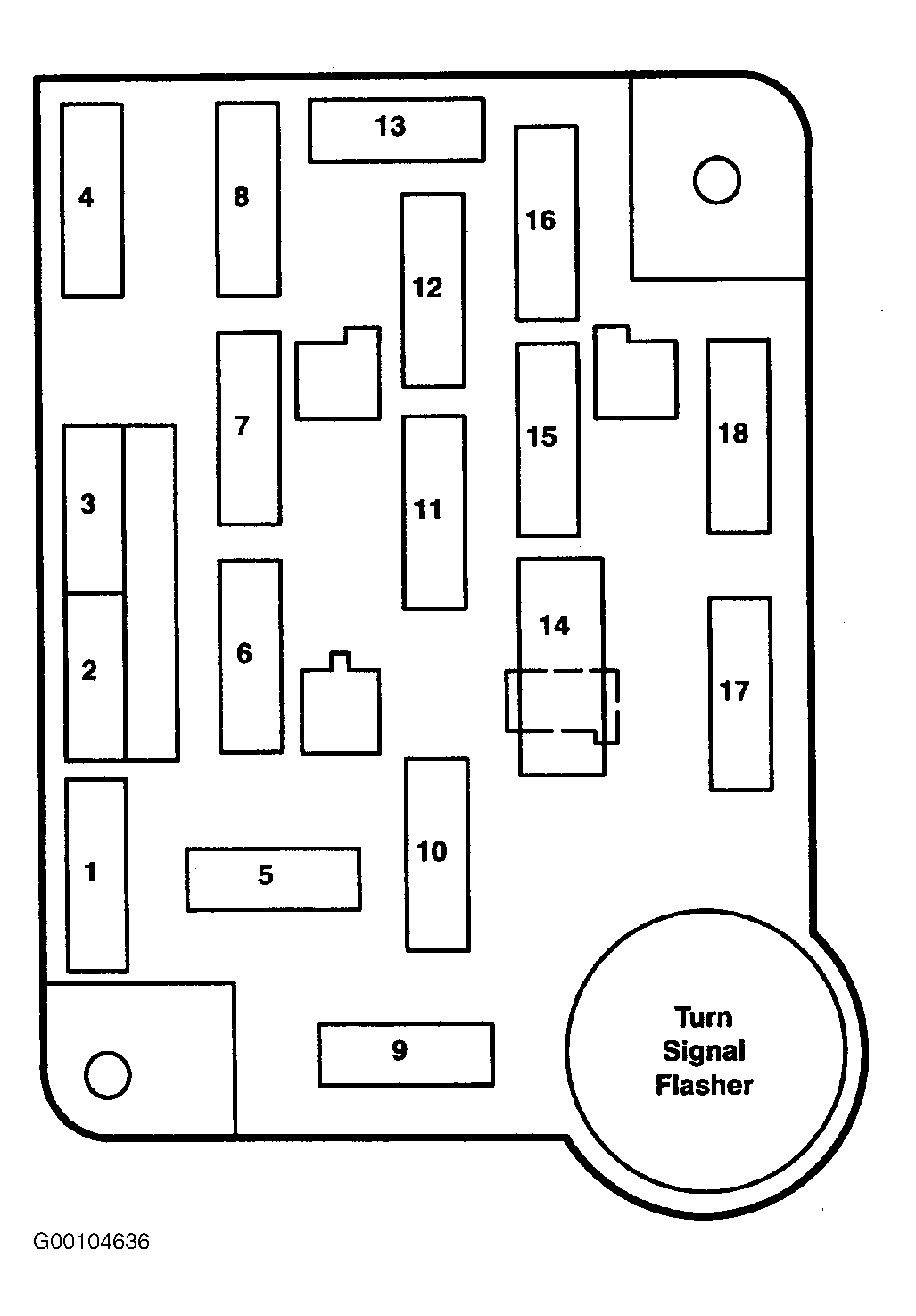

Fig 1: Identifying Fuse Panel Components

Courtesy of FORD MOTOR CO.

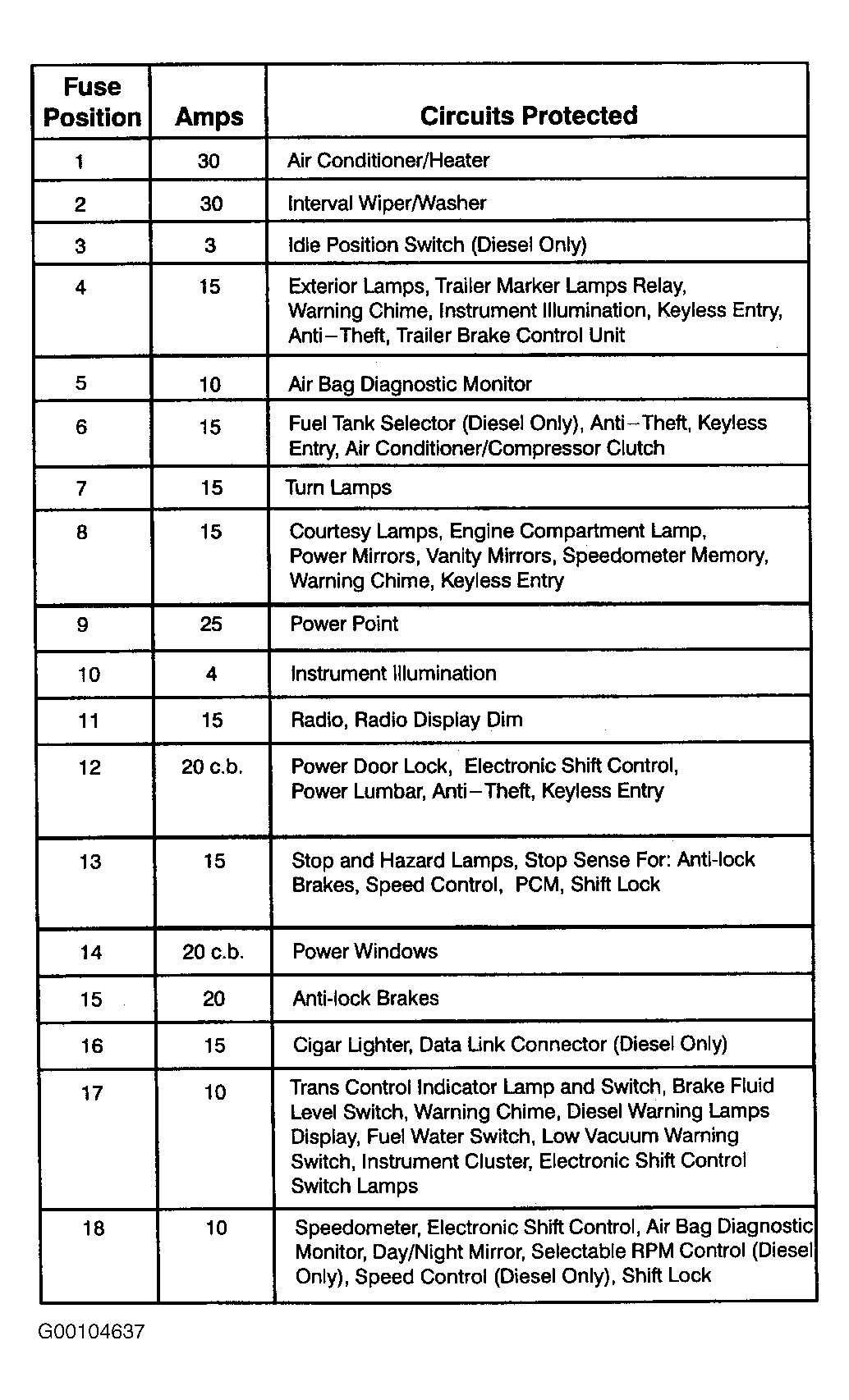

Fig 2: Fuse Panel Legend

Courtesy of FORD MOTOR CO.
