Service Point Locations

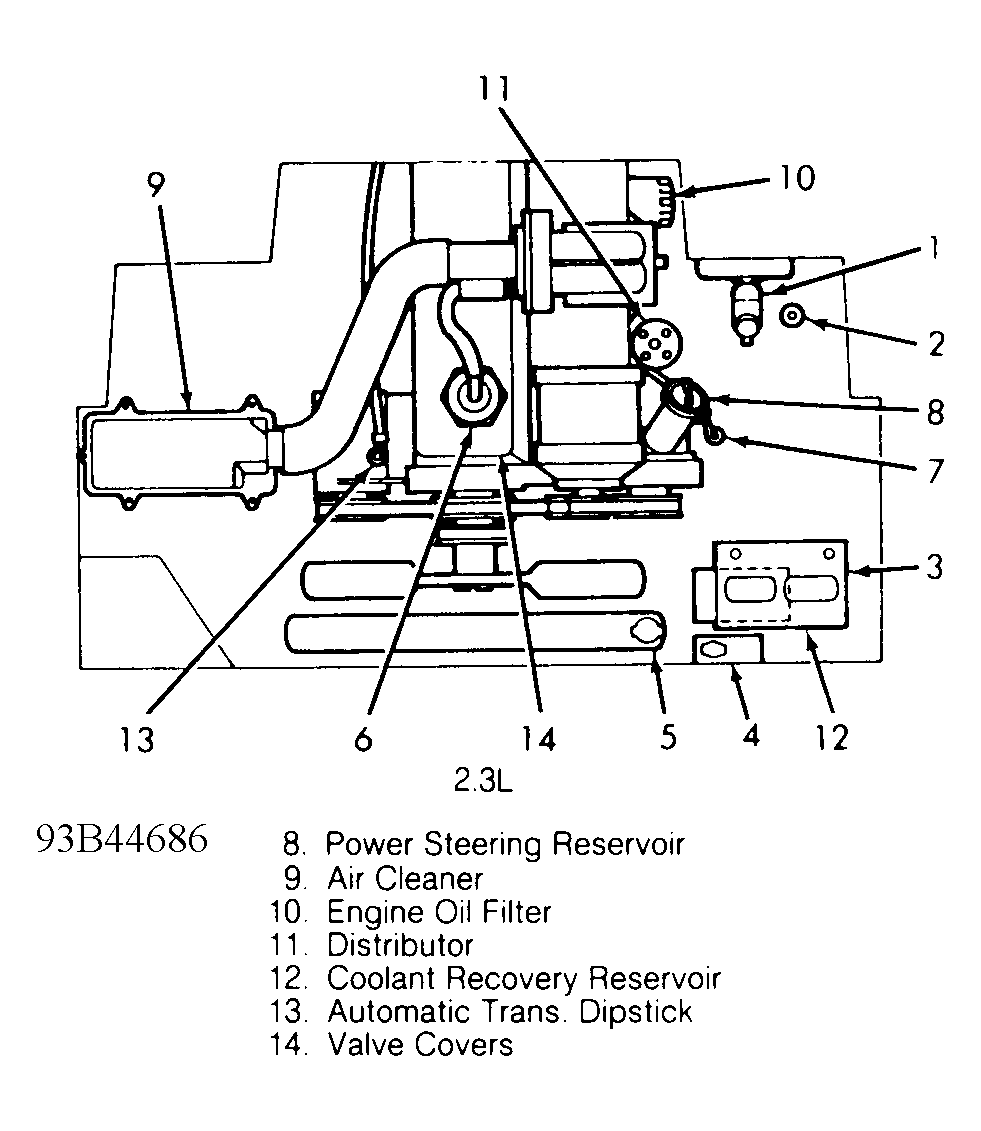

Fig 1: Service Point Locations (2.3L EFI 4-Cylinder Engine)

Courtesy of FORD MOTOR CO.

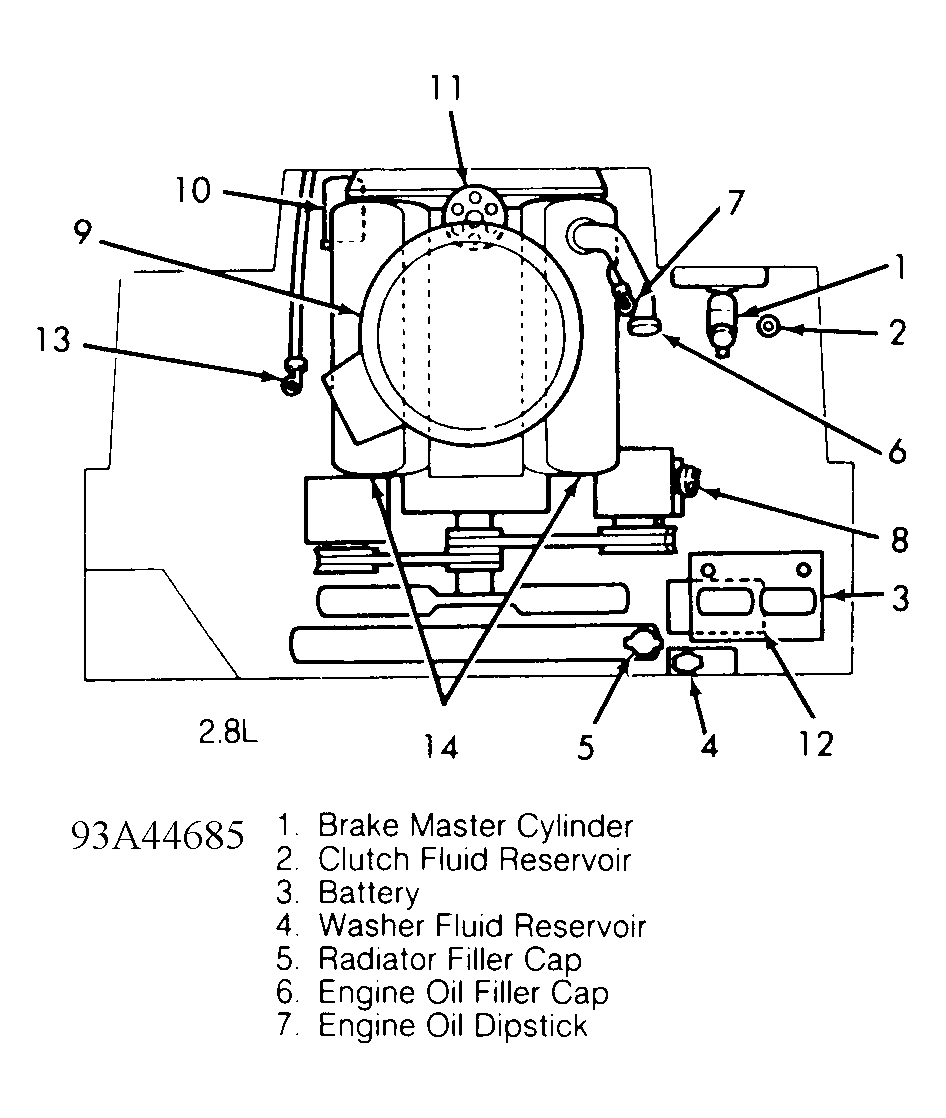

Fig 2: Service Point Locations (2.8L V6 Engine)

Courtesy of FORD MOTOR CO.

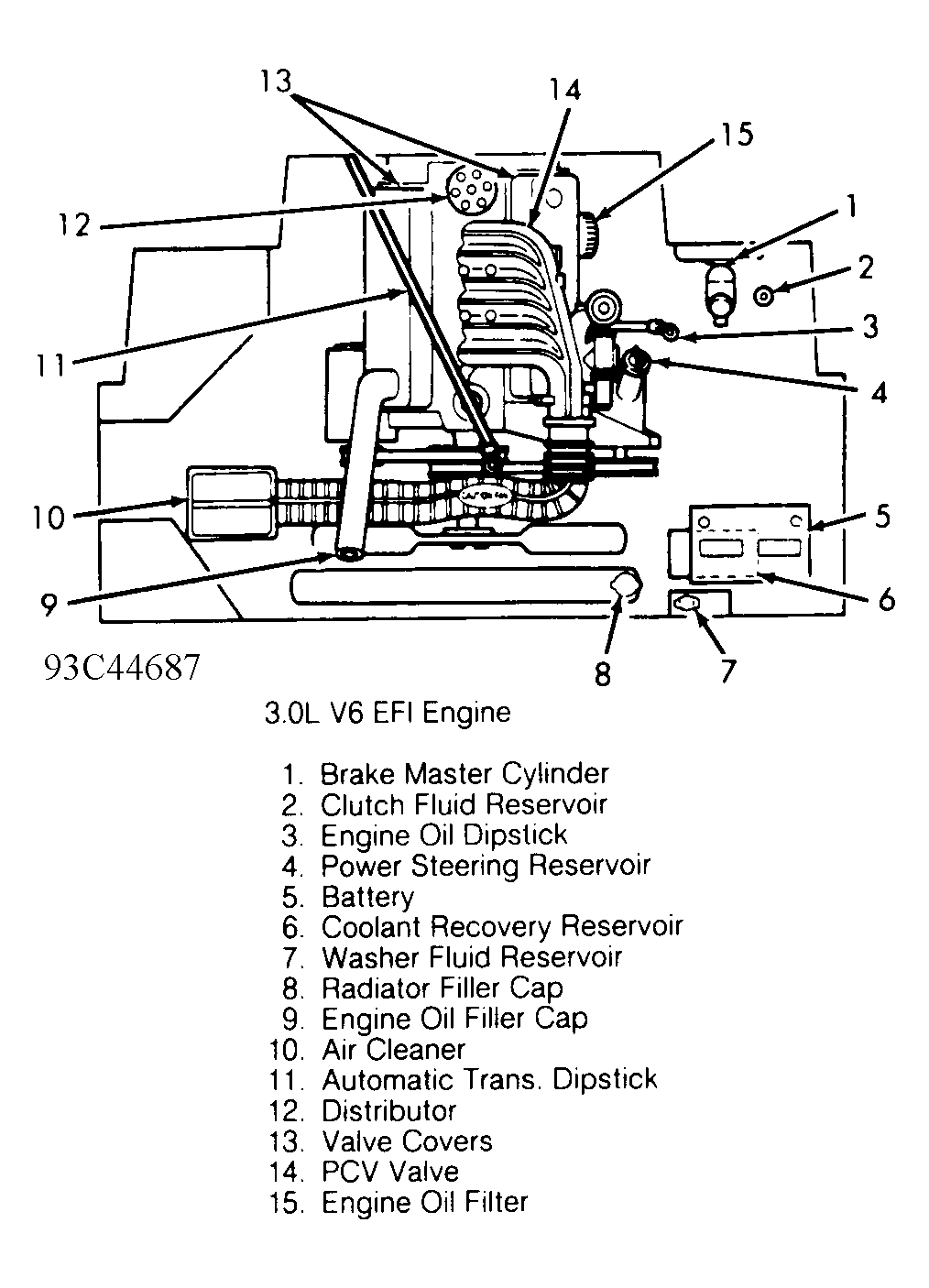

Fig 3: Service Point Locations (3.0L EFI V6 Engine)

Courtesy of FORD MOTOR CO.

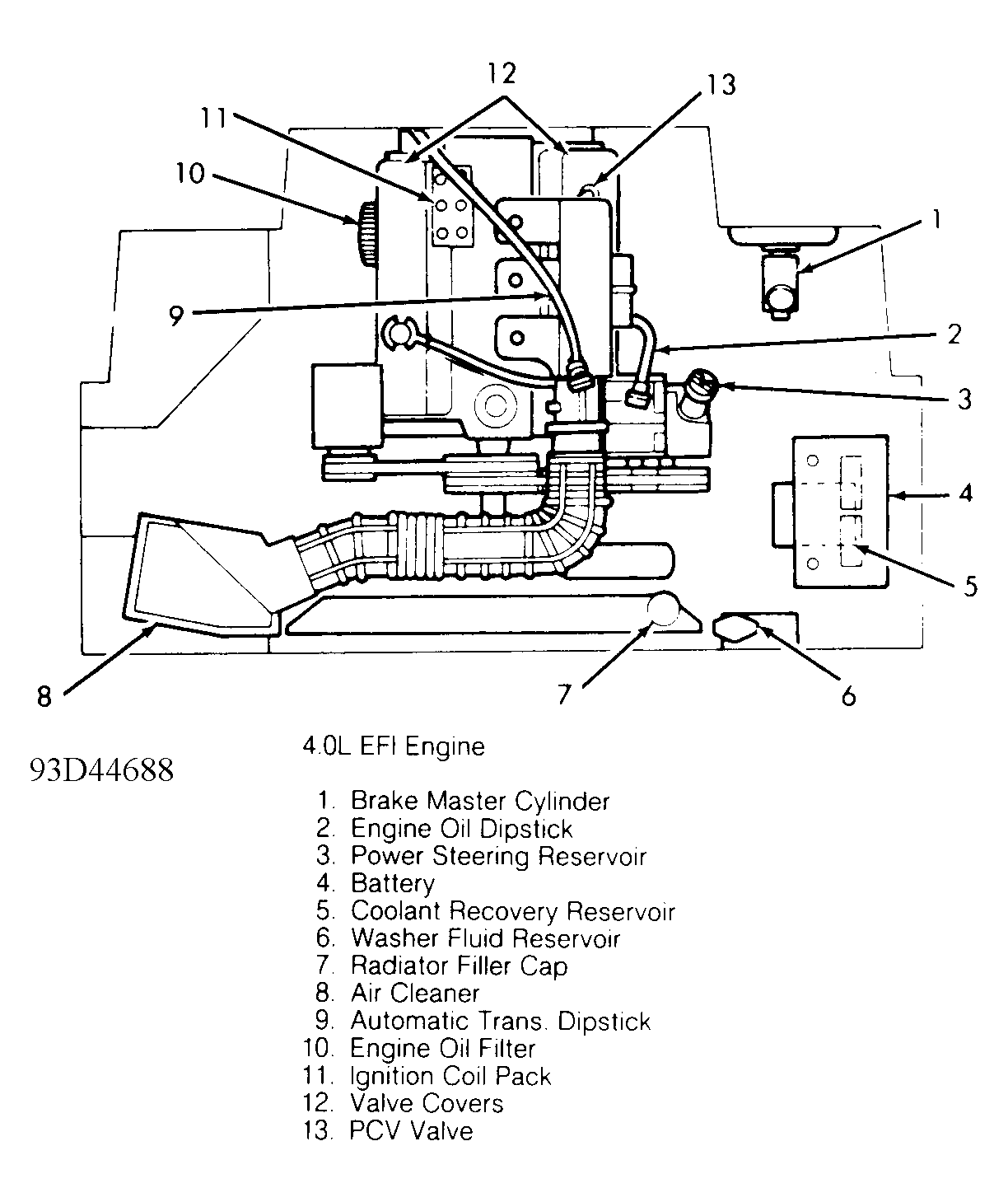

Fig 4: Service Point Locations (4.0L EFI V6 Engine)

Courtesy of FORD MOTOR CO.

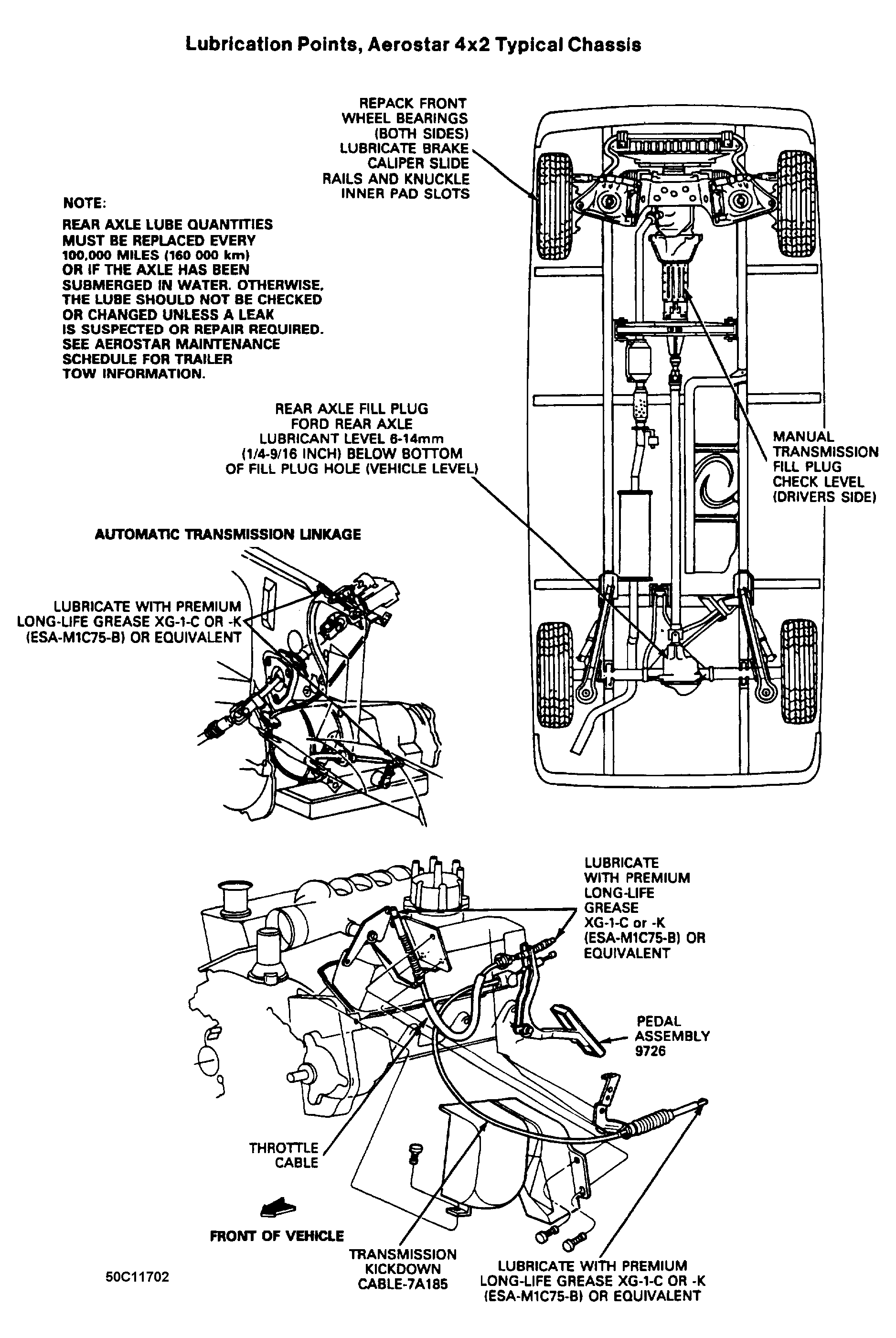

Fig 5: Lubrication Points (2WD Models)

Courtesy of FORD MOTOR CO.

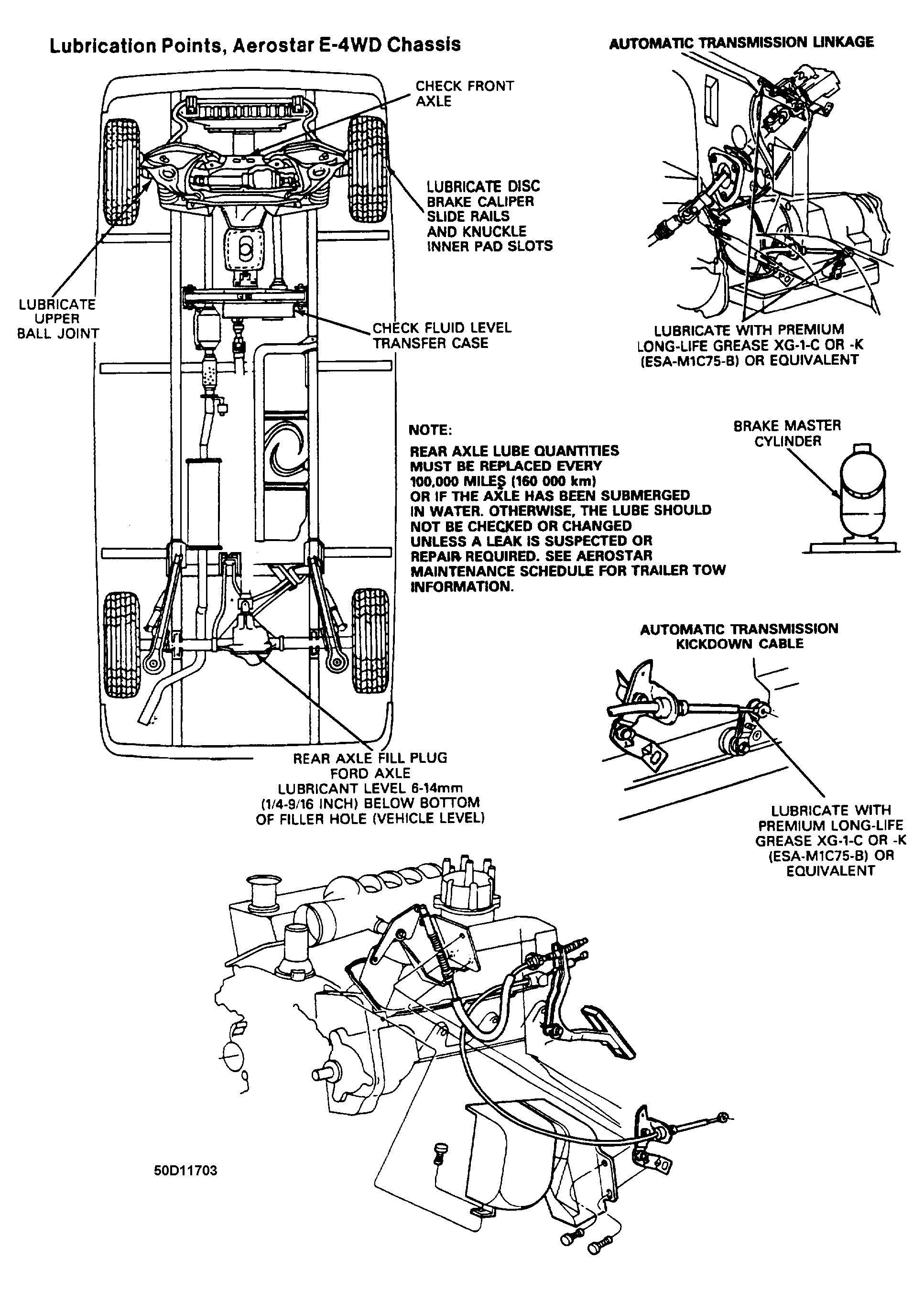

Fig 6: Lubrication Points (AWD Models)

Courtesy of FORD MOTOR CO.
