Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|

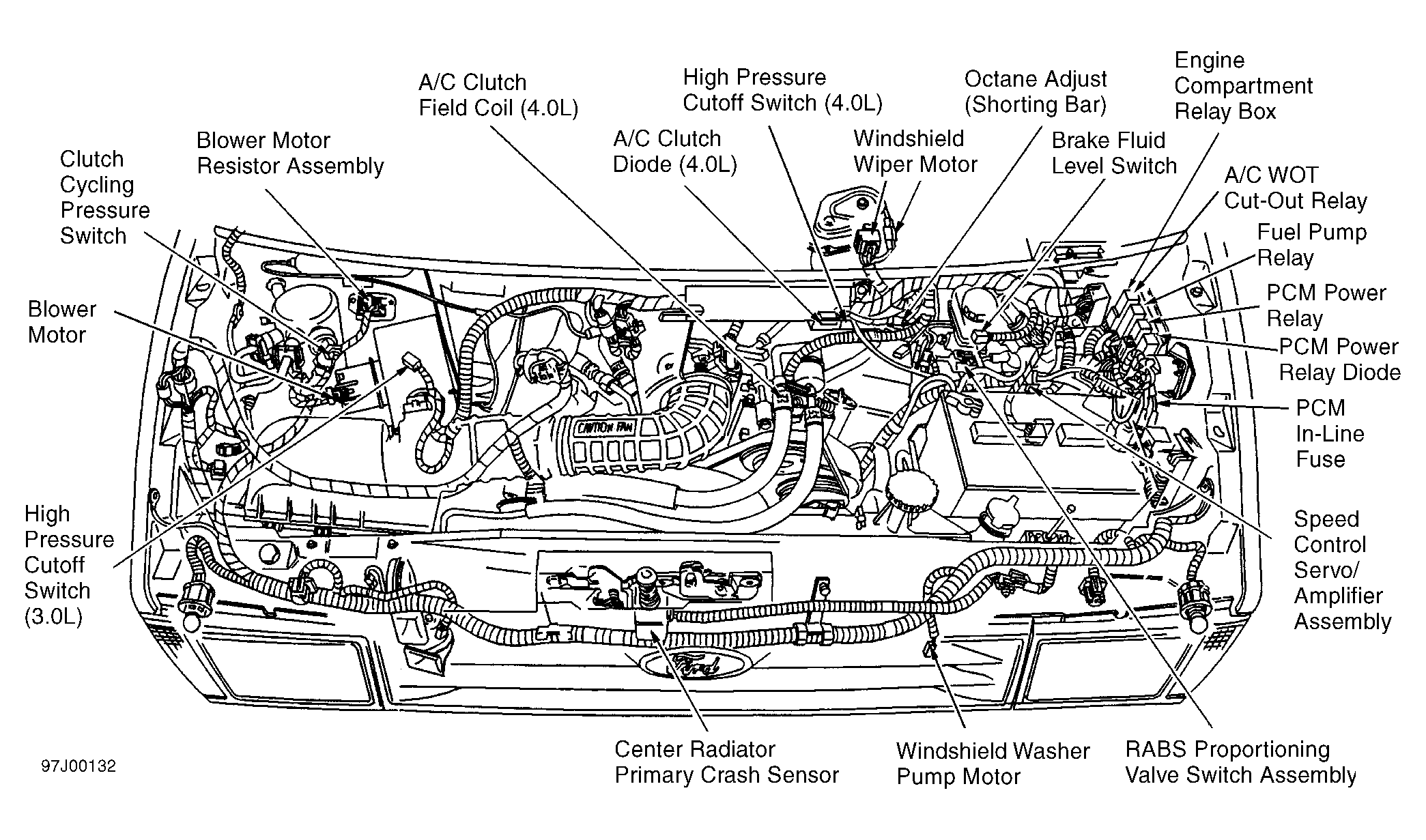

| Engine Compartment Relay Box | Left rear of engine compartment, rear of starter relay. See Figure . |

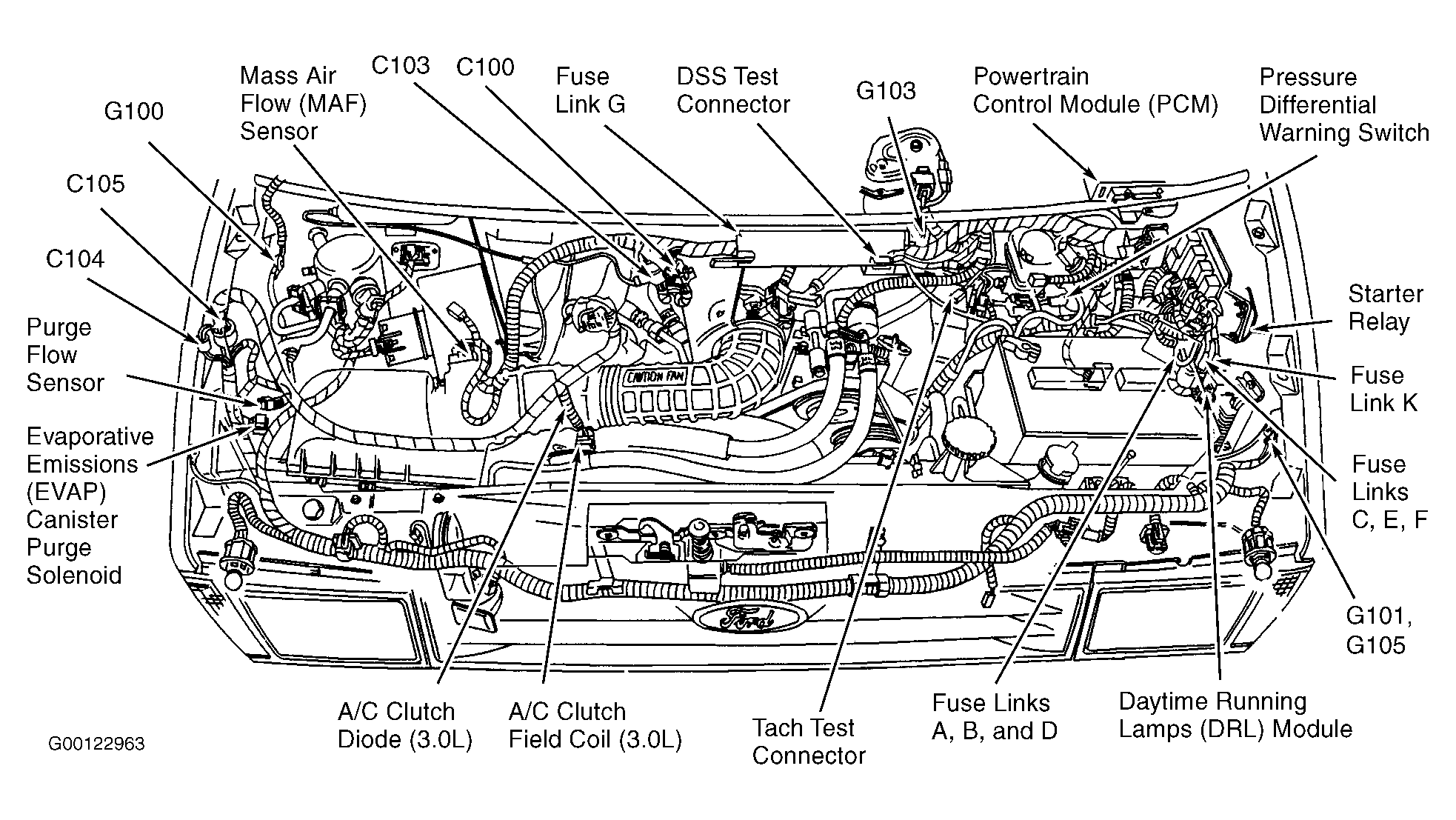

| Fuse Link "A" (Black) Fuse Block | At starter relay, center of left fender apron. See Figure . |
| Fuse Link "B" (Black) Ignition Switch/Fuse Block | At starter relay, center of left fender apron. See Figure . |
| Fuse Link "C" (Brown) Charging System | At starter relay, center of left fender apron. See Figure . |
| Fuse Link "D" (Dark Blue) Trailer Tow | At starter relay, center of left fender apron. See Figure . |
| Fuse Link "E" (Dark Blue) EEC | At starter relay, center of left fender apron. See Figure . |
| Fuse Link "F" (Brown) A/C-Heater | At starter relay, center of left fender apron. See Figure . |
| Fuse Link "G" (Dark Blue) Ignition System | Right rear of engine compartment, taped to engine control sensor harness. See Figure . |
| Fuse Link "K" (Gray) Charging System | At starter relay, center of left fender apron. See Figure . |

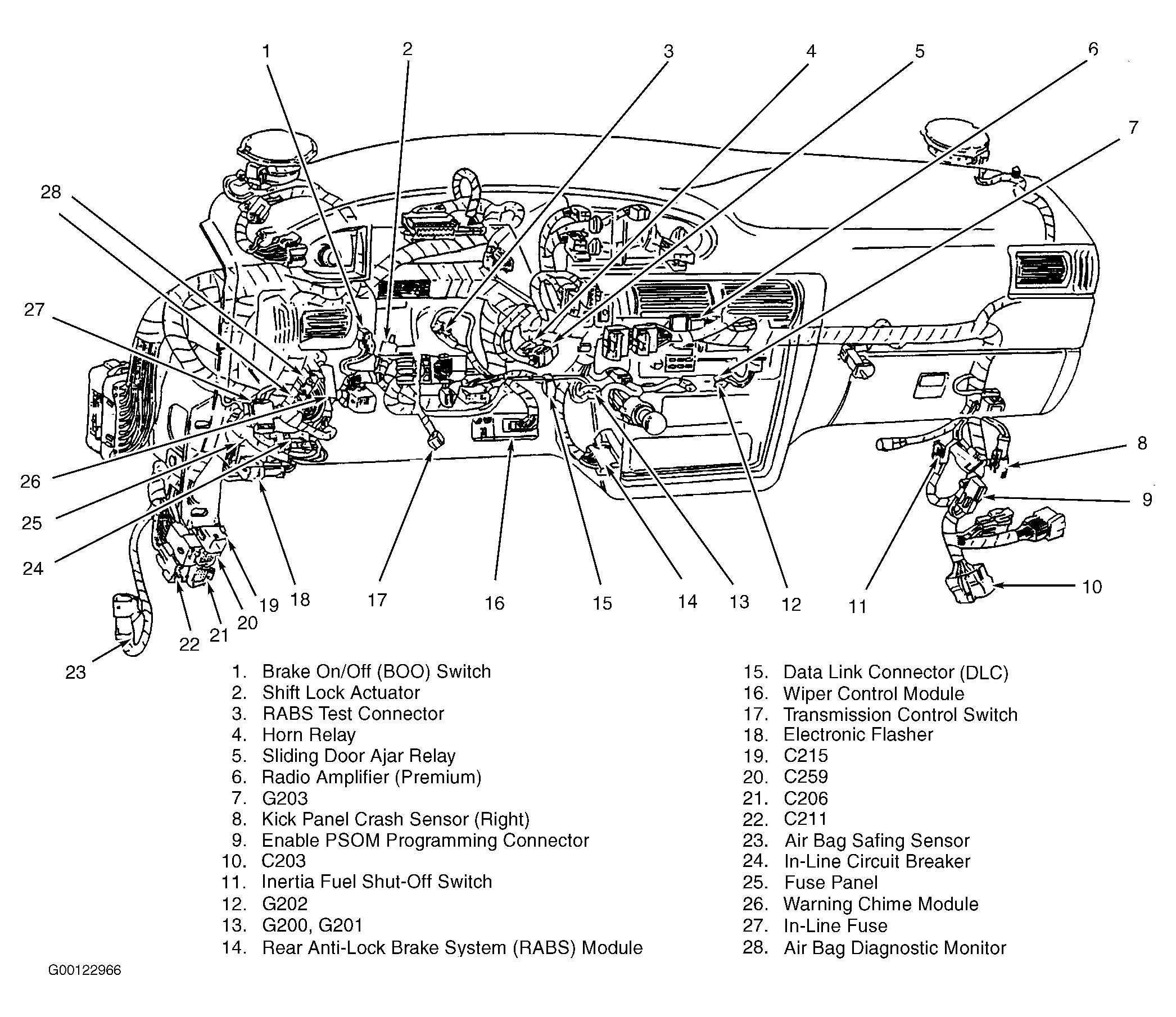

| Fuse Panel | Behind left side of dash. See Figure . |
| In-Line Circuit Breaker (Liftgate Wiper) | Near left side of fuse panel. See Figure . |
| In-Line Fuse (Power Door Lock) | Taped to main harness, near fuse panel. See Figure . |
| PCM In-Line Fuse | Left rear of engine compartment. See Figure . |
