Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| ABS Control Module | Behind left side of dash. |

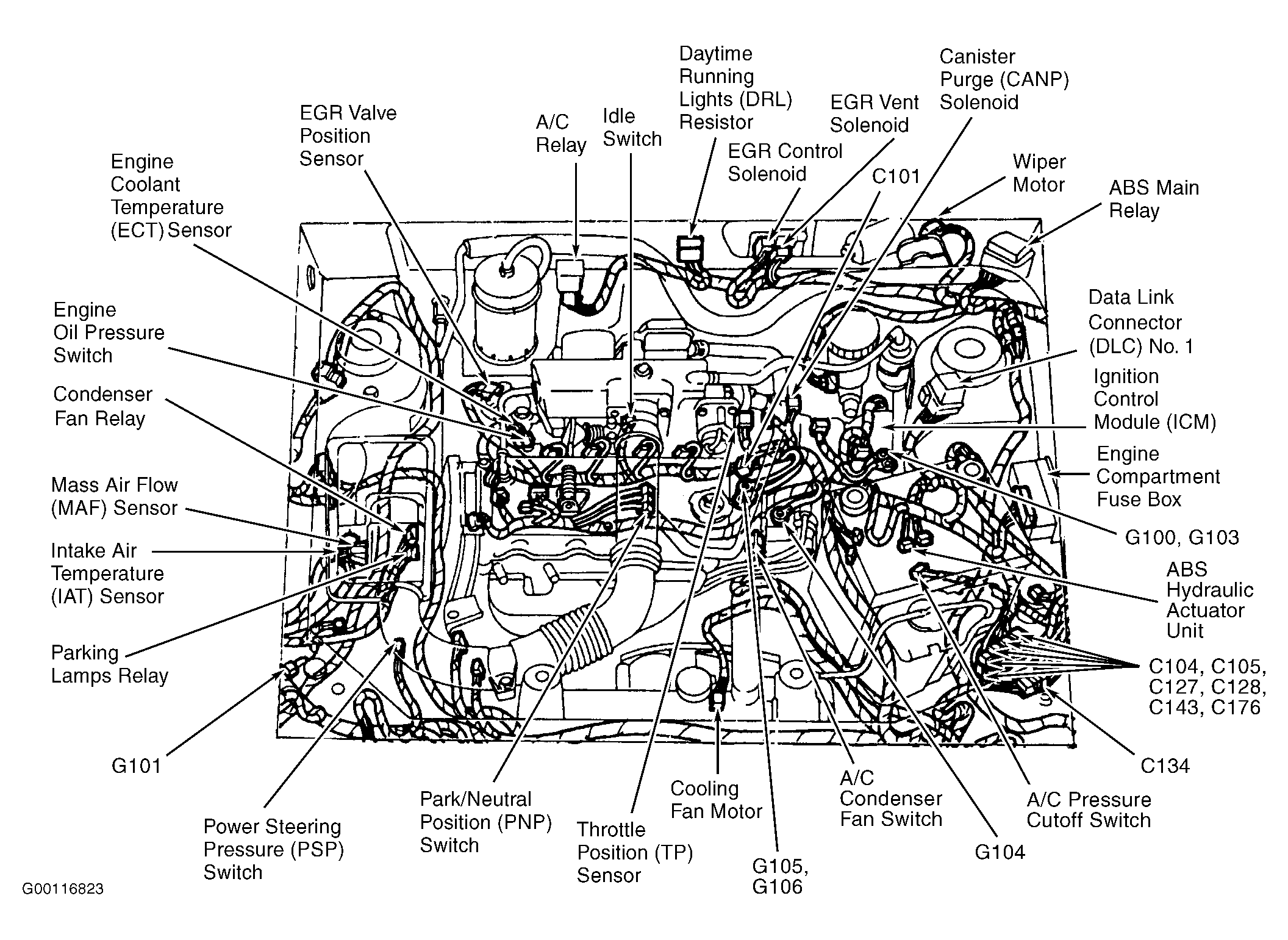

| ABS Hydraulic Actuator Unit | Lower left side of engine compartment. See Figure . |
| Air Bag Diagnostic Module | Behind front of console. |
| Flasher Module | Behind dash, at left kick panel. |
| Heater-A/C Control Unit | Center of dash. |
| Ignition Control Module (ICM) | Left side of engine compartment. See Figure . |
| Powertrain Control Module (PCM) | Behind left side of dash. |
| Warning Chime Module | Behind left side of dash. |
