Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Center Of Engine Compartment

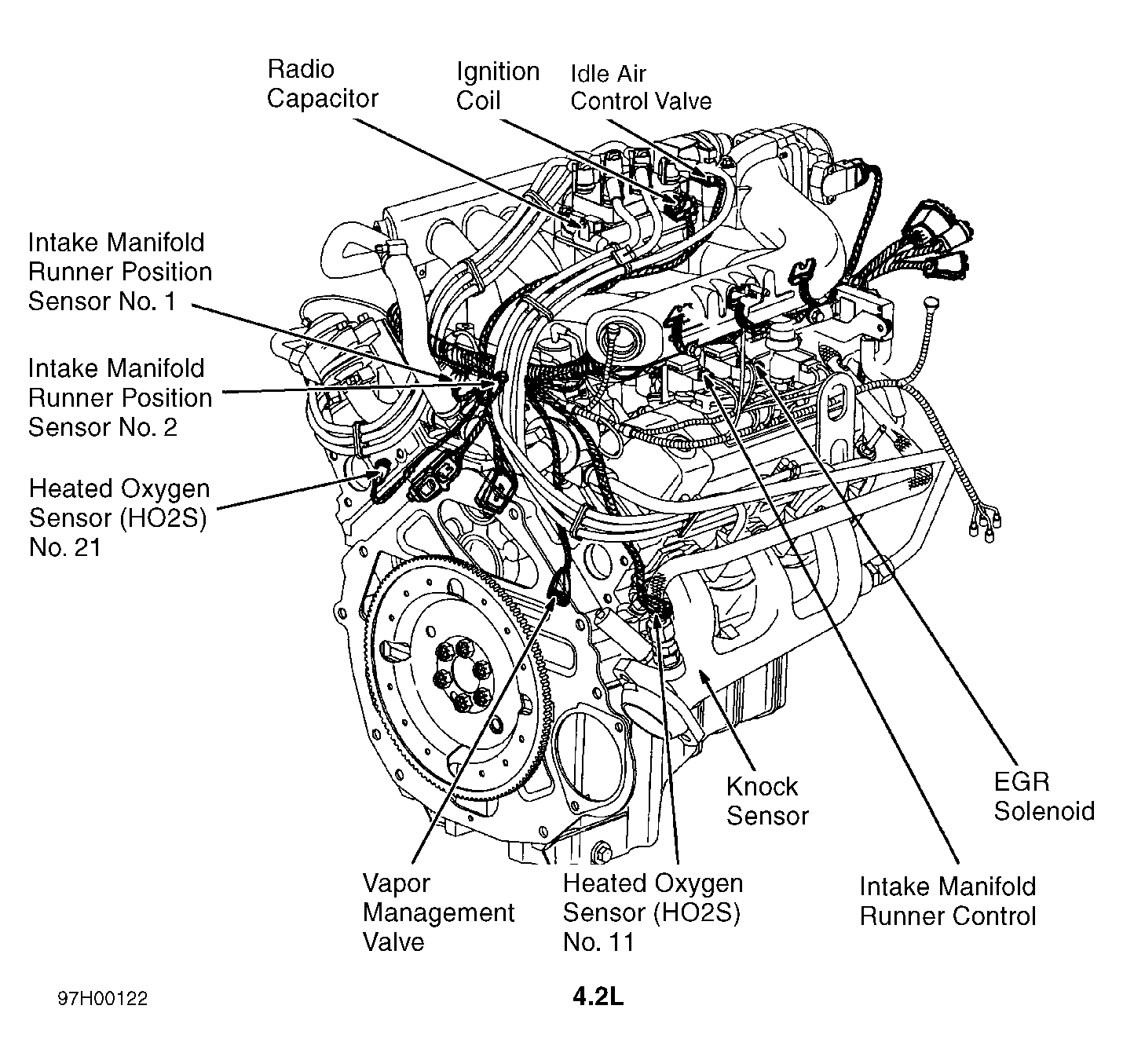

Fig 2: Right Rear Of Engine (4.2L)

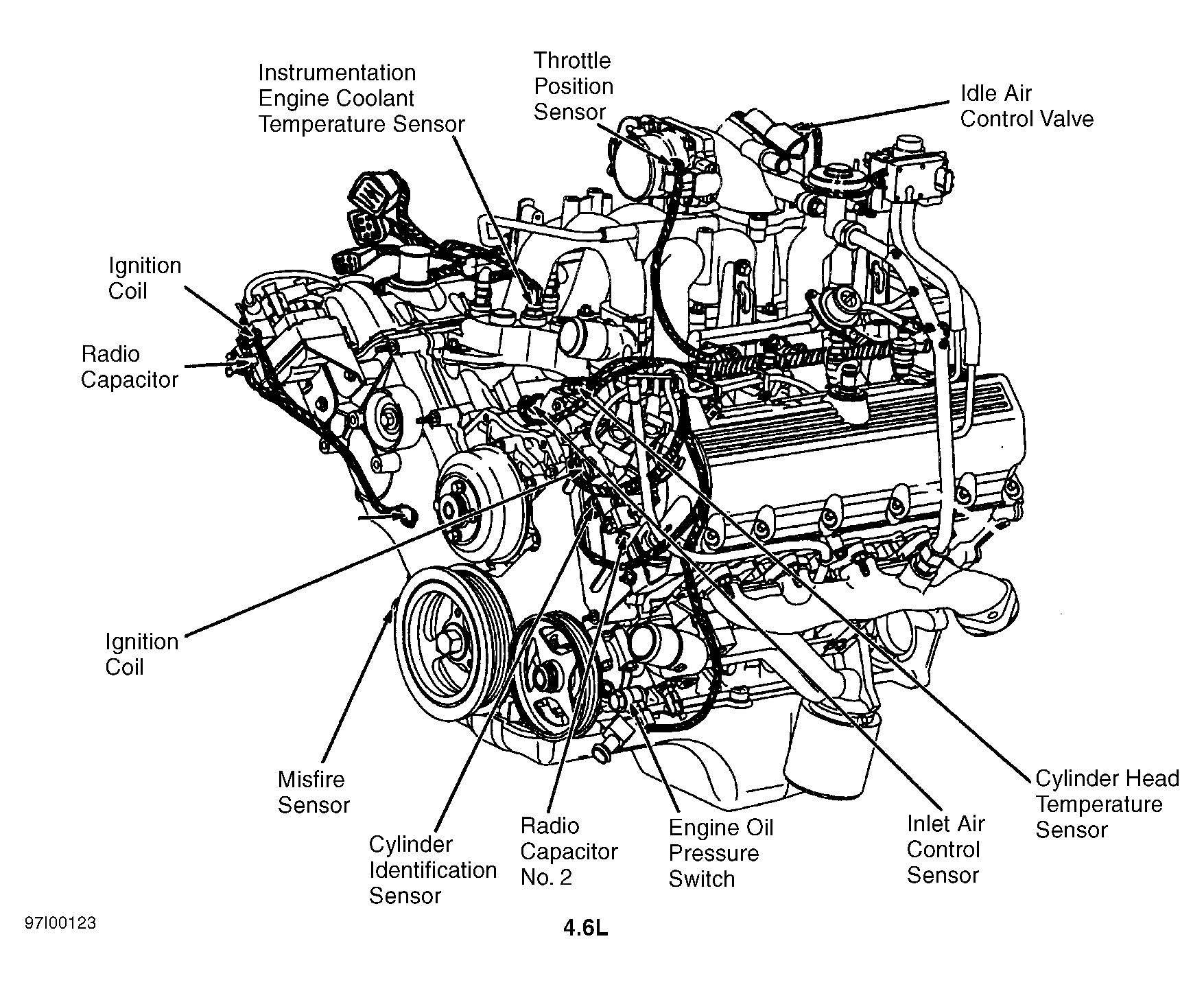

Fig 3: Left Front Of Engine (4.6L)

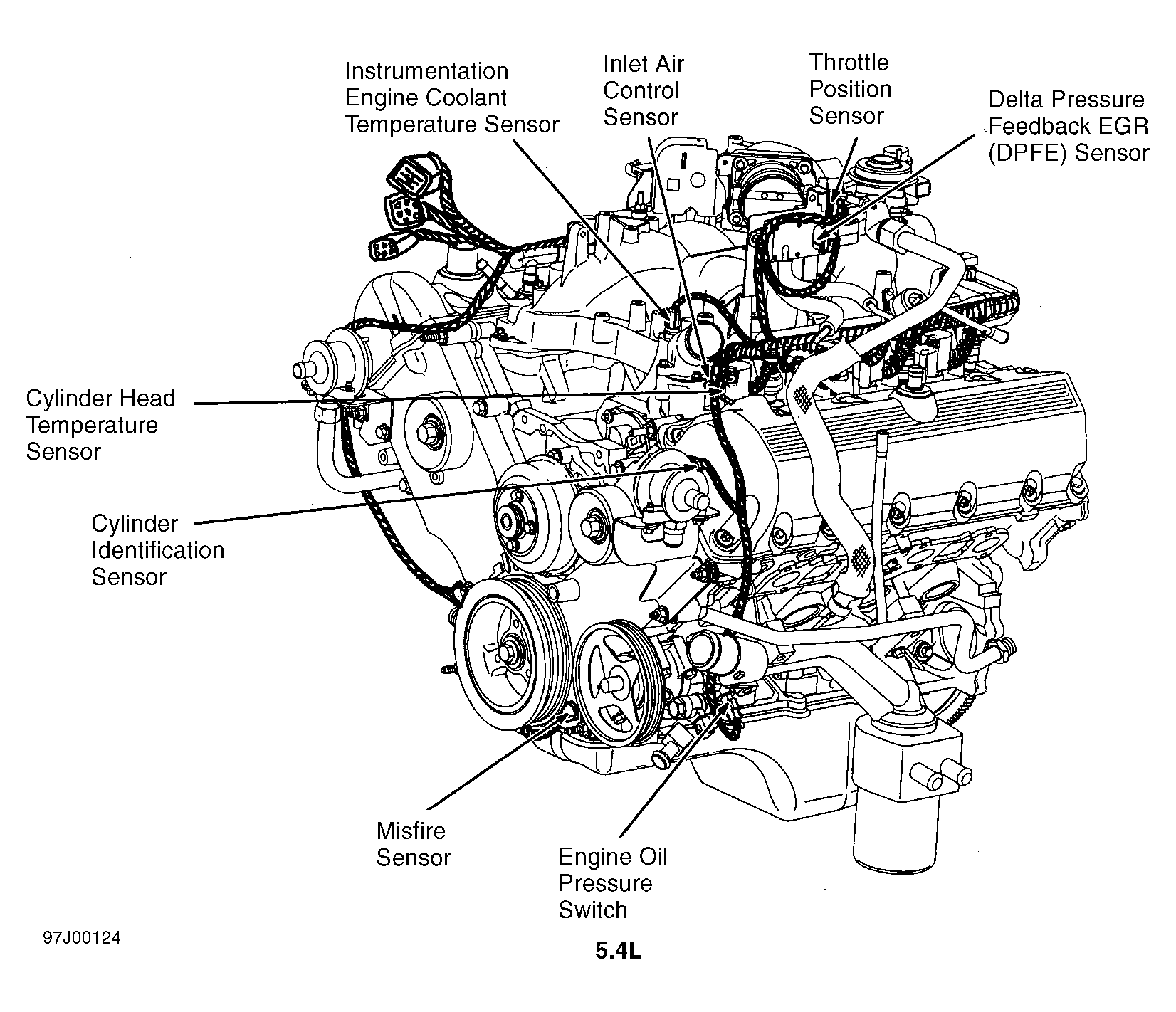

Fig 4: Left Front Of Engine (5.4L)

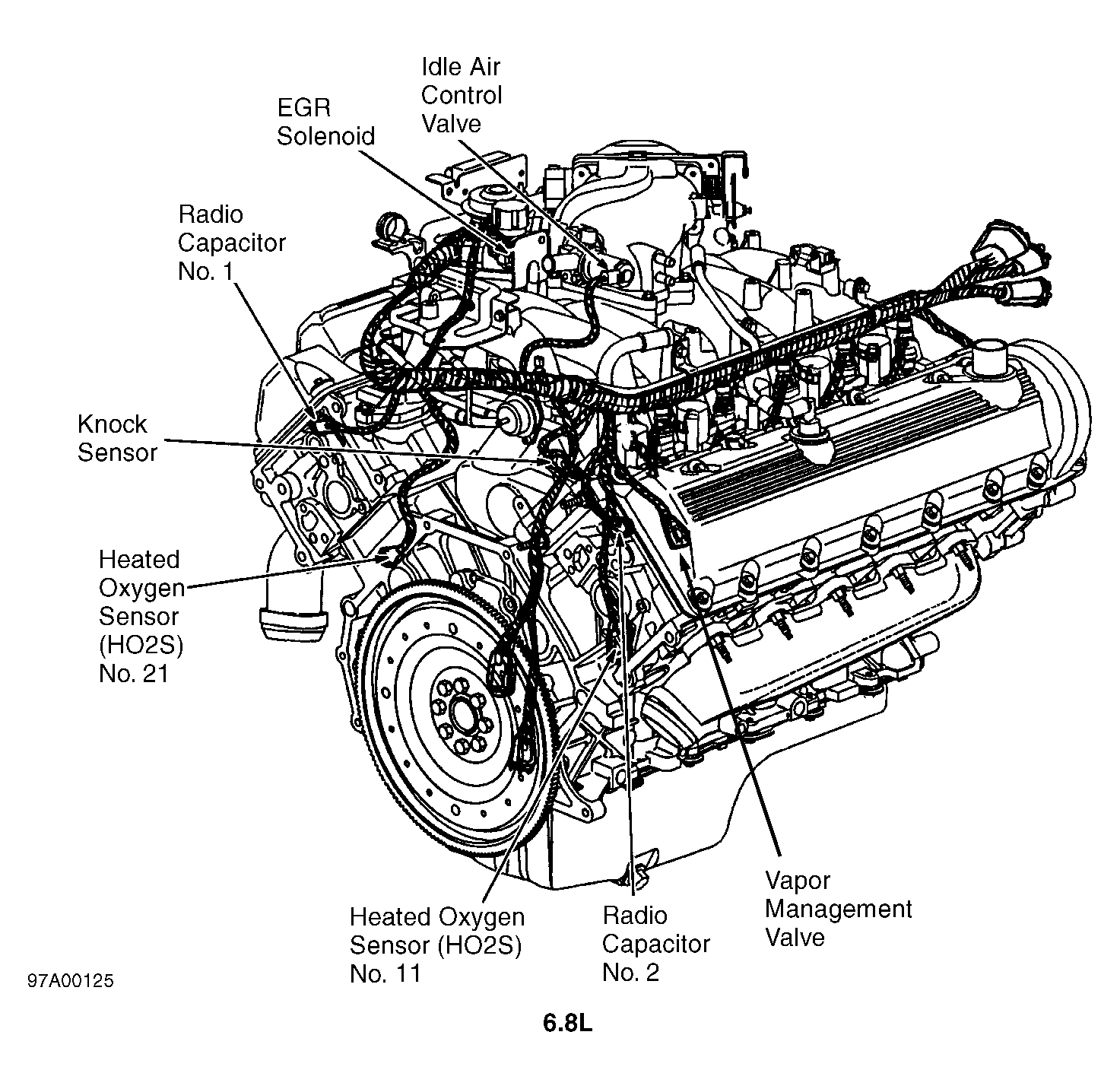

Fig 5: Right Rear Of Engine (6.8L)

Fig 6: Engine Compartment

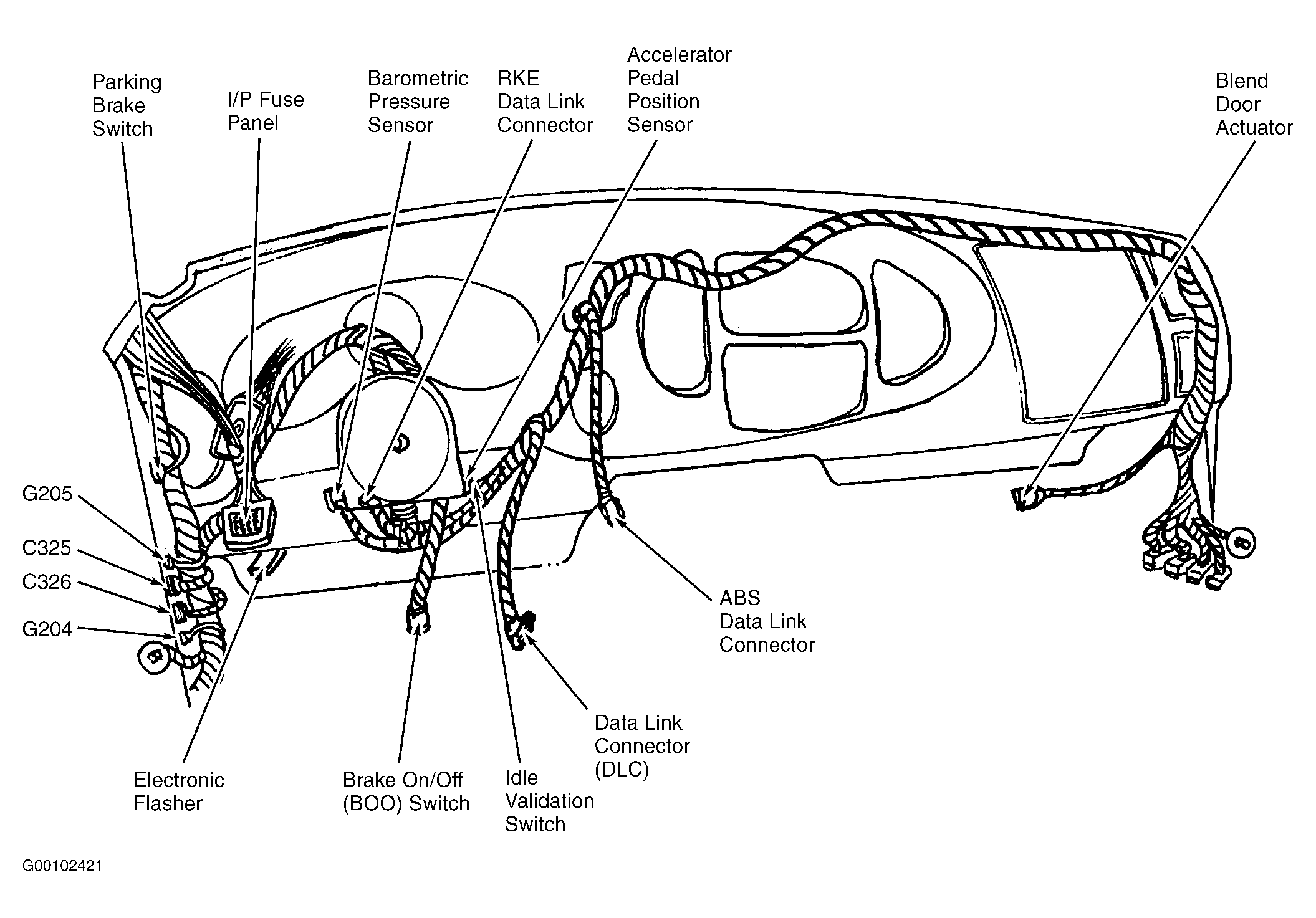

Fig 7: Dash

Fig 8: Dash

Fig 9: Vehicle
