Power Seat Switch

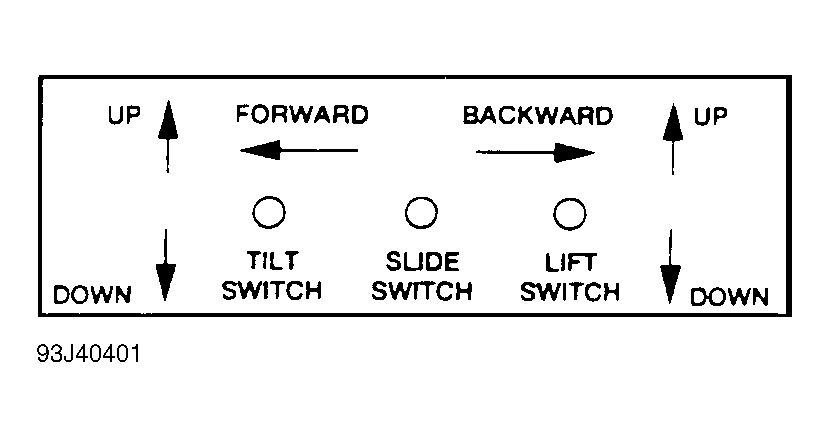

Disconnect power seat motor connectors (lift motor, slide motor and tilt motor). Ensure power seat switch is connected. Turn ignition on. Using a voltmeter, measure voltage at indicated connector terminals, with power seat switch in appropriate position. See POWER SEAT SWITCH TEST SPECIFICATIONS TABLE. See Fig 1 . If any voltage is not as specified, replace power seat switch.
POWER SEAT SWITCH TEST SPECIFICATIONS
| Connector & Wire Color | Switch Position | Volts | |
|---|---|---|---|
| Lift Motor | |||
| Yellow/Red | Up | Less Than 1 | |
| Yellow | Up | More Than 10 | |
| Yellow/Red | Down | More Than 10 | |
| Yellow | Down | Less Than 1 | |
| Slide Motor | |||
| Green | Forward | More Than 10 | |
| Green/White | Forward | Less Than 1 | |
| Green | Backward | Less Than 1 | |
| Green/White | Backward | More Than 10 | |
| Tilt Motor | |||
| Red | Up | Less Than 1 | |
| Red/White | Up | More Than 10 | |
| Red | Down | More Than 10 | |
| Red/White | Down | Less Than 1 | |
