System Tests: Notes

WARNING: This page is about a different car, the 1997 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

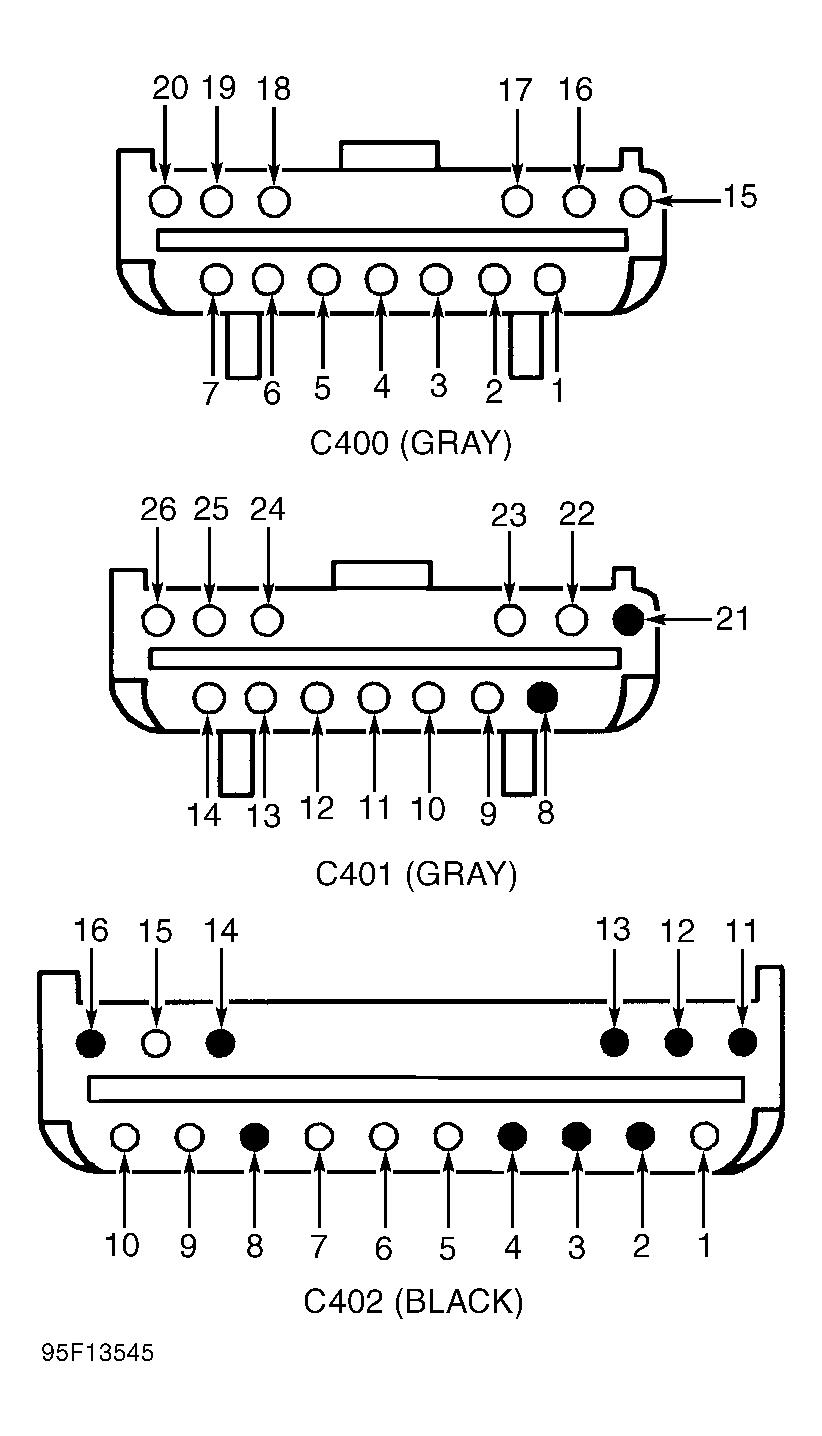

Fig 1: Identifying Remote Keyless Entry Module Connector Terminals

NOTE: Keep driver window rolled down during testing to avoid being locked out of vehicle.
