CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|
| A/C Compressor Clutch Diode | To right side of second cooling fan motor. |

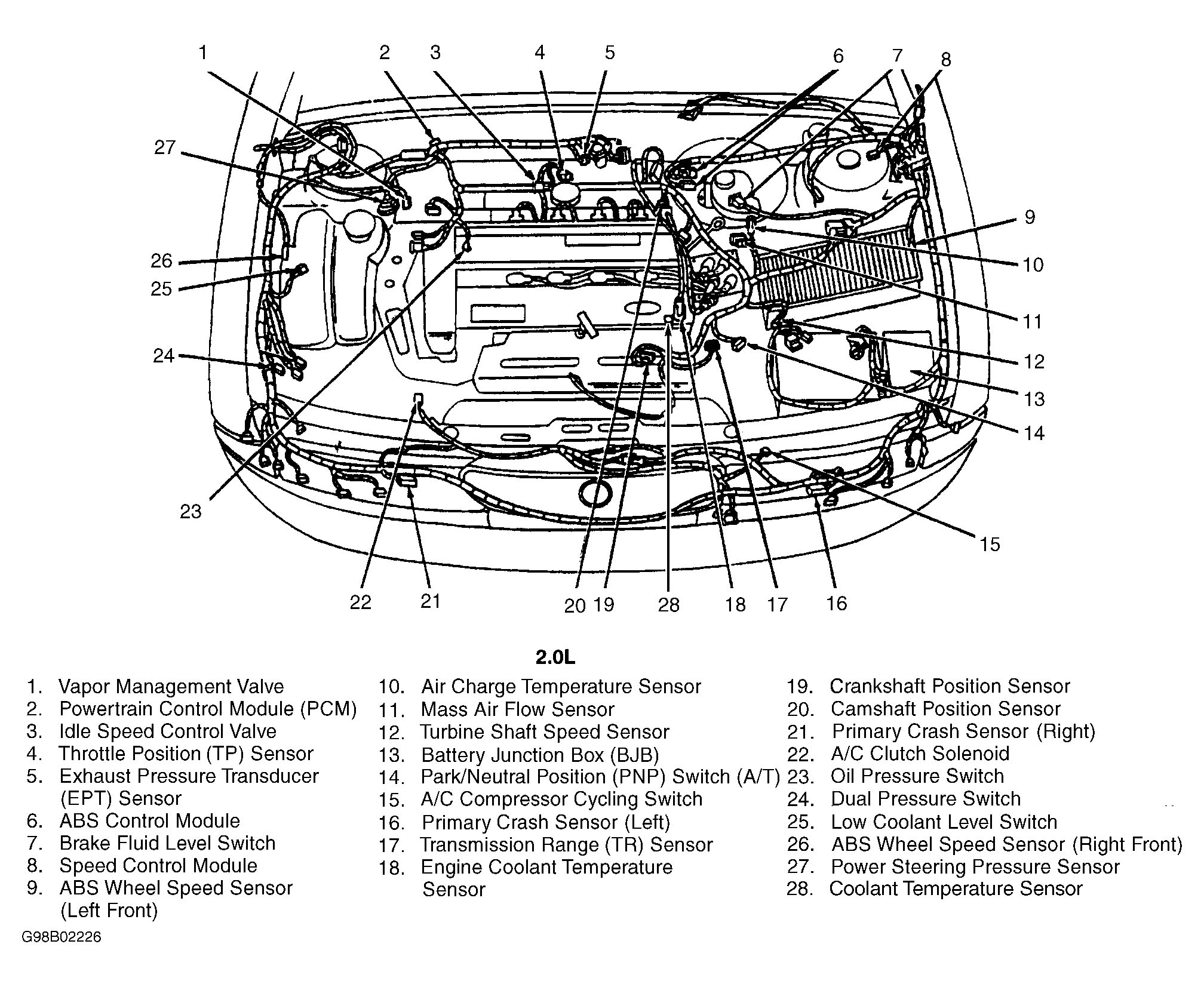

| Battery Junction Box (BJB) (2.0L) | Left front corner of engine compartment. See Figure . |

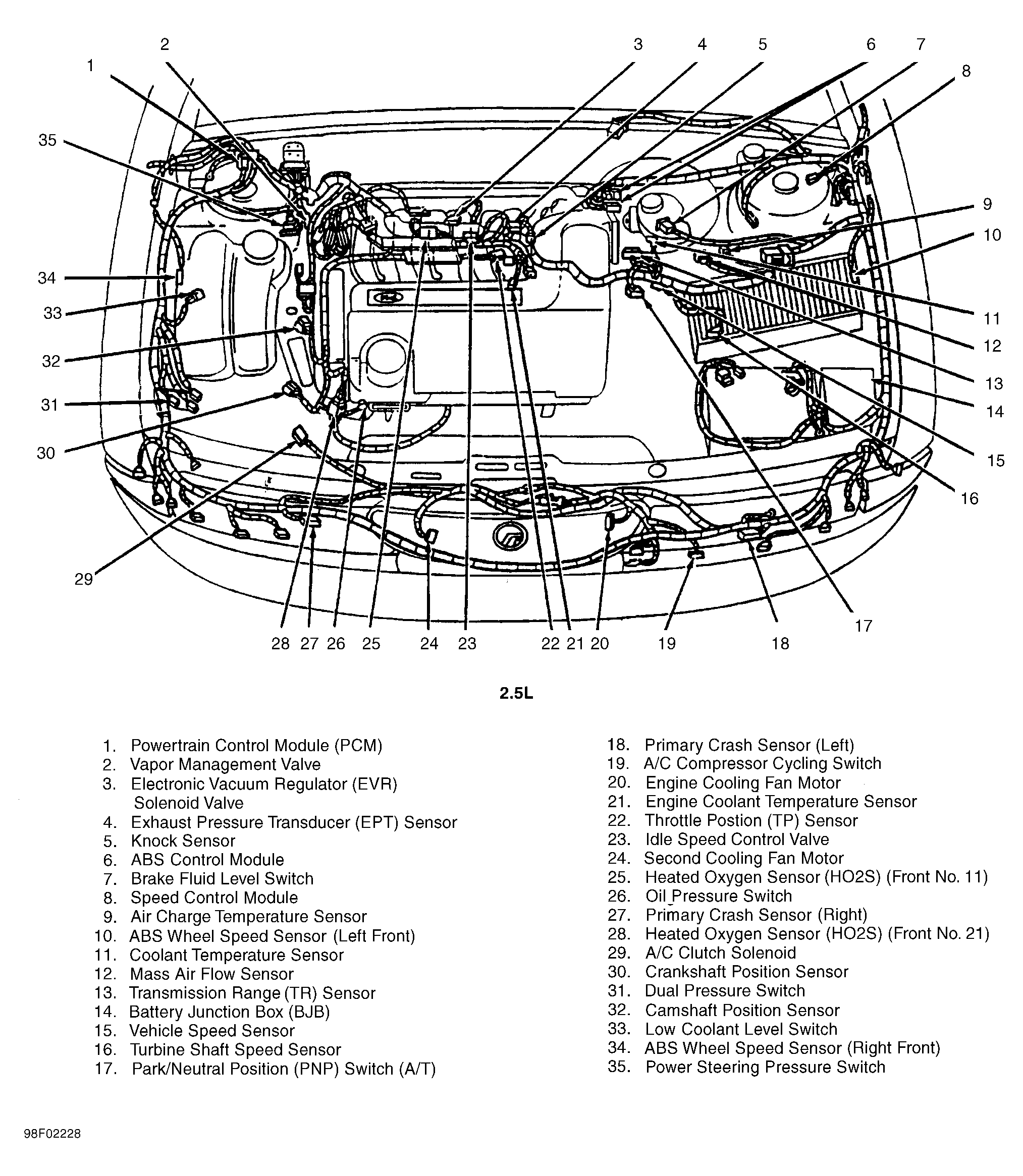

| Battery Junction Box (BJB) (2.5L) | Left front corner of engine compartment. See Figure . |
| Blocking Diode | Behind left side of dash. |

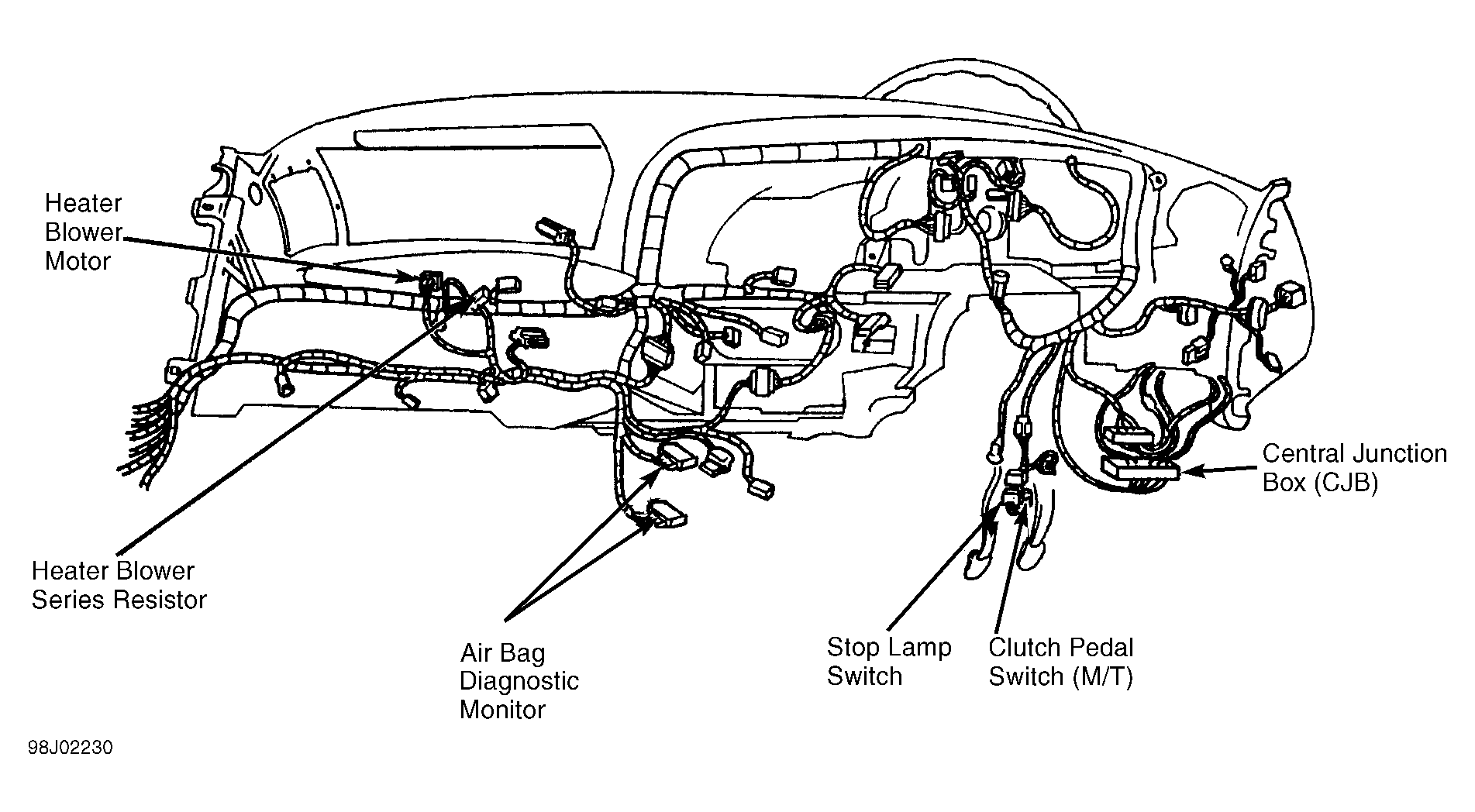

| Central Junction Box (CJB) | Under left side of dash. See Figure . |
| High Beam Diode | Behind left side of dash. |
| Ignition Relay Diode | Under left side of dash, on central junction box. |
| Low Beam Diode | Behind left side of dash. |
| Starter Relay Diode | Left front corner of engine compartment, in battery junction box. |
