Single Switch

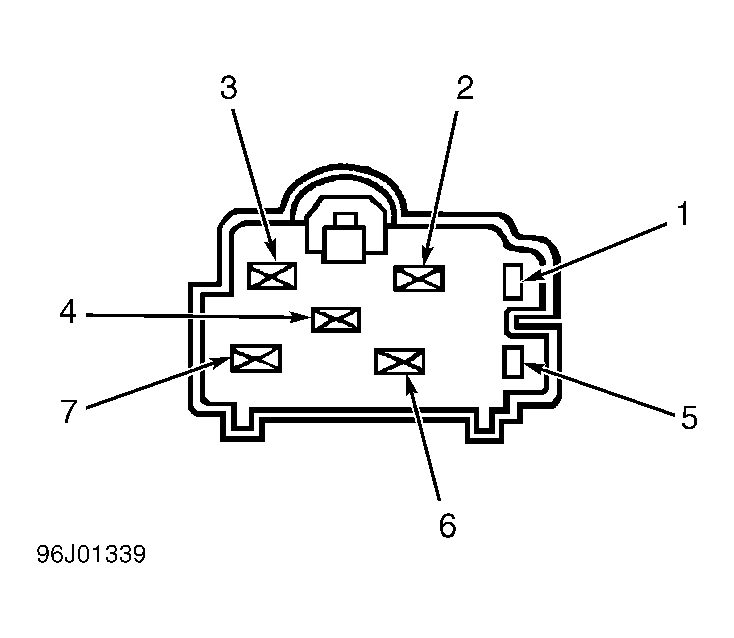

Remove single switch from vehicle. Check continuity between specified terminals while operating switch to specified position. See SINGLE SWITCH TESTING table. See Fig 1 . Replace switch if continuity between specified terminals is not specified.
SINGLE SWITCH TESTING
| Switch Position | Continuity Between Terminals No. |
|---|---|
| Neutral | 2 & 3; 6 & 7 |
| Up | 2 & 3; 4 & 6 |
| Down | 3 & 4; 6 & 7 |
