Abs Main Relay

NOTE: ABS main relay is located on left side of engine compartment, near battery junction box. See Fig 1.

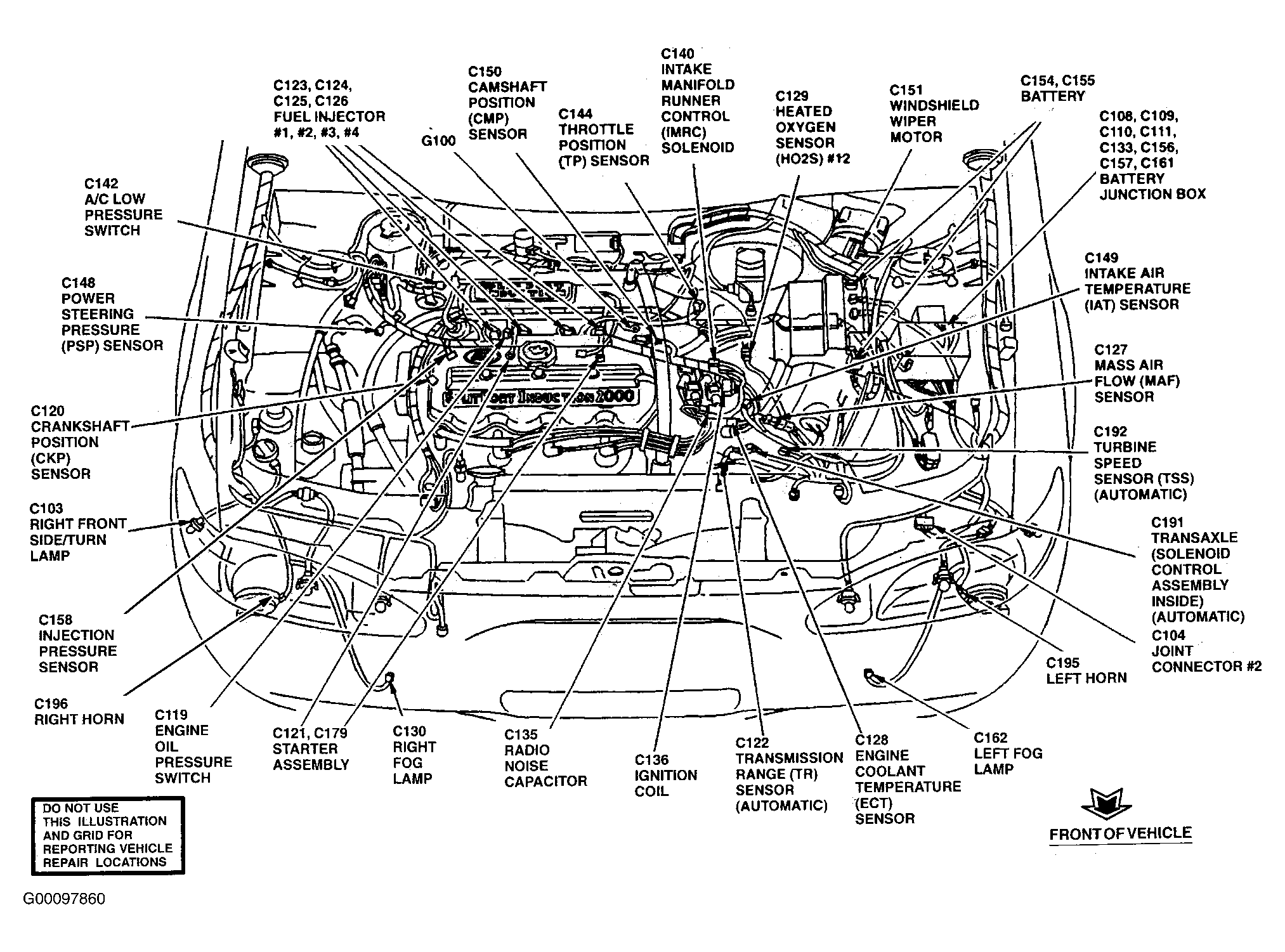

Fig 1: Locating Engine Compartment Electrical Components
G00097860Courtesy of FORD MOTOR CO.
