Relay Box

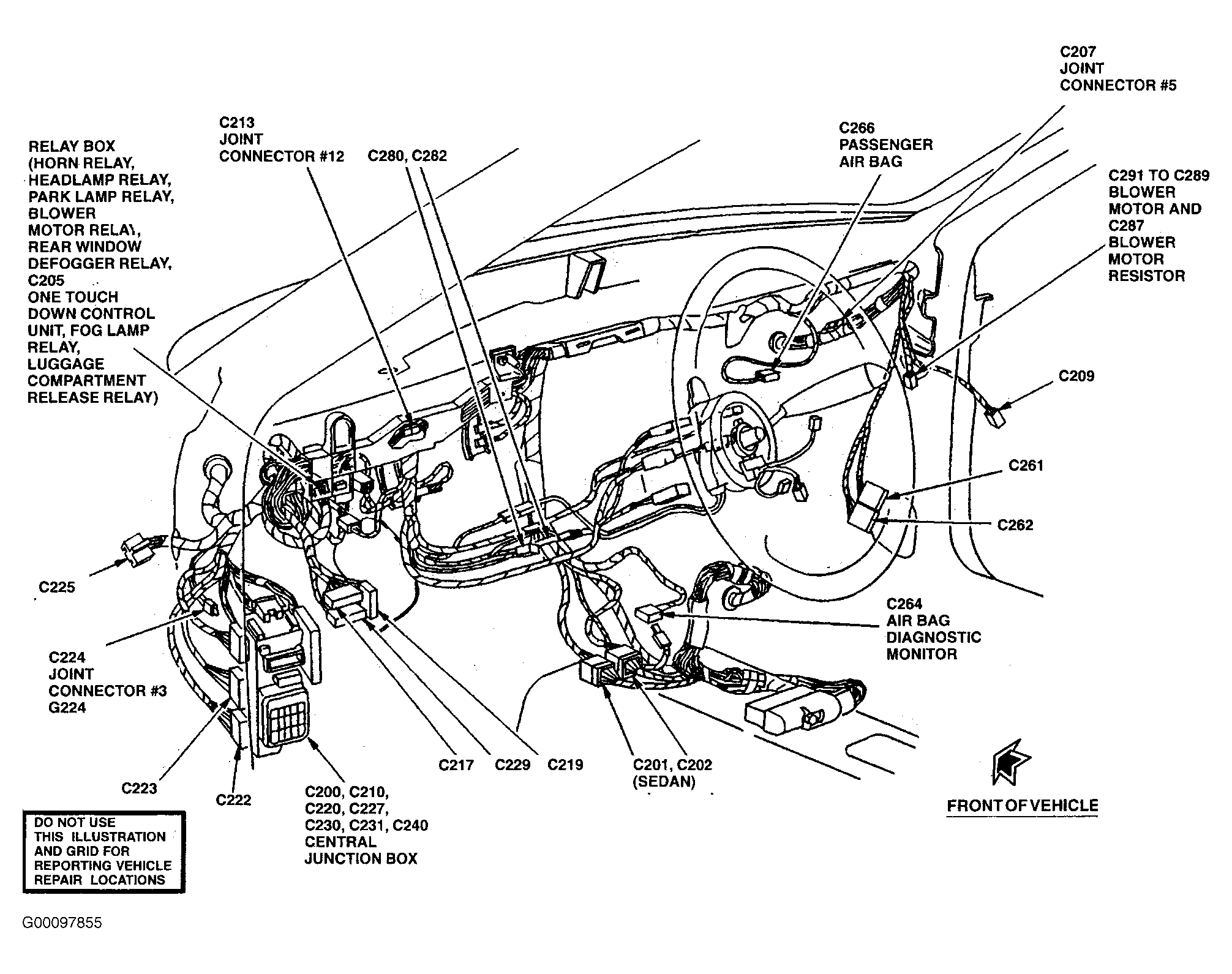

NOTE: Central junction box is located under driver's side of instrument panel. See Figure.

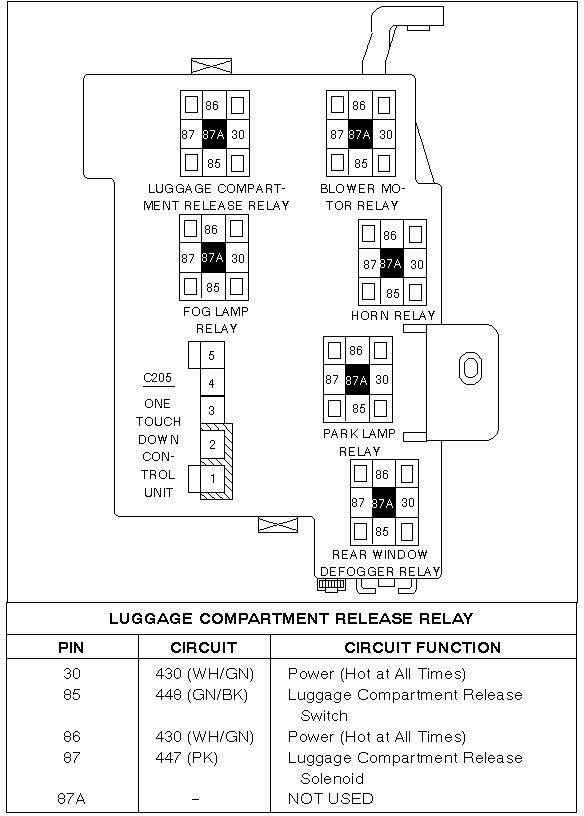

Fig 1: Identifying Relay Box Components (1 Of 2)

Courtesy of FORD MOTOR CO.

Fig 2: Identifying Relay Box Components (2 Of 2)

Courtesy of FORD MOTOR CO.
