Mode 6 - 2000 Ford - Except Diesel
>>
EVAP Monitor
EVAP Monitor

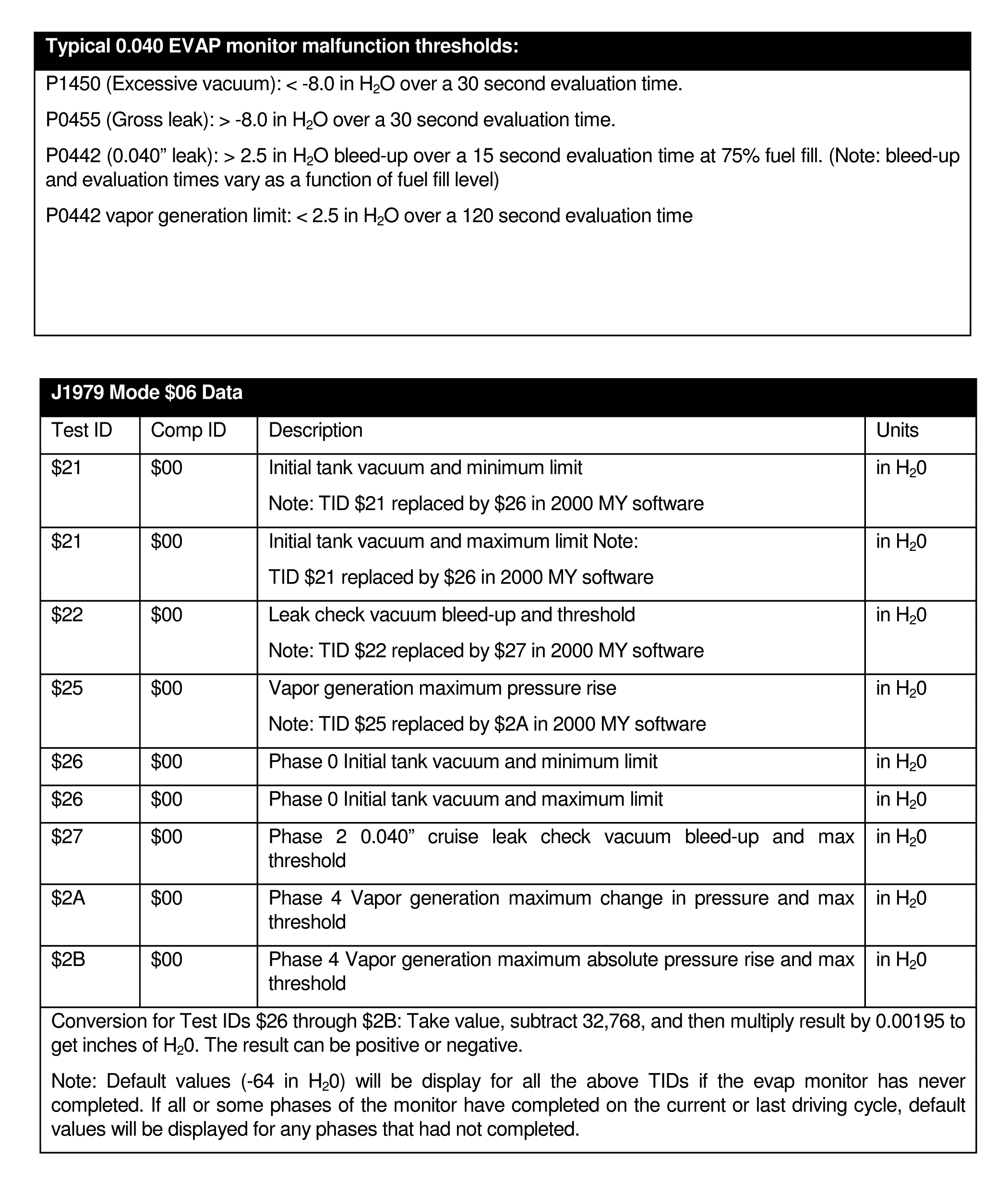

Fig 1: Mode $06 Data For EVAP Monitor (0.040" Leak)
Courtesy of FORD MOTOR CO.

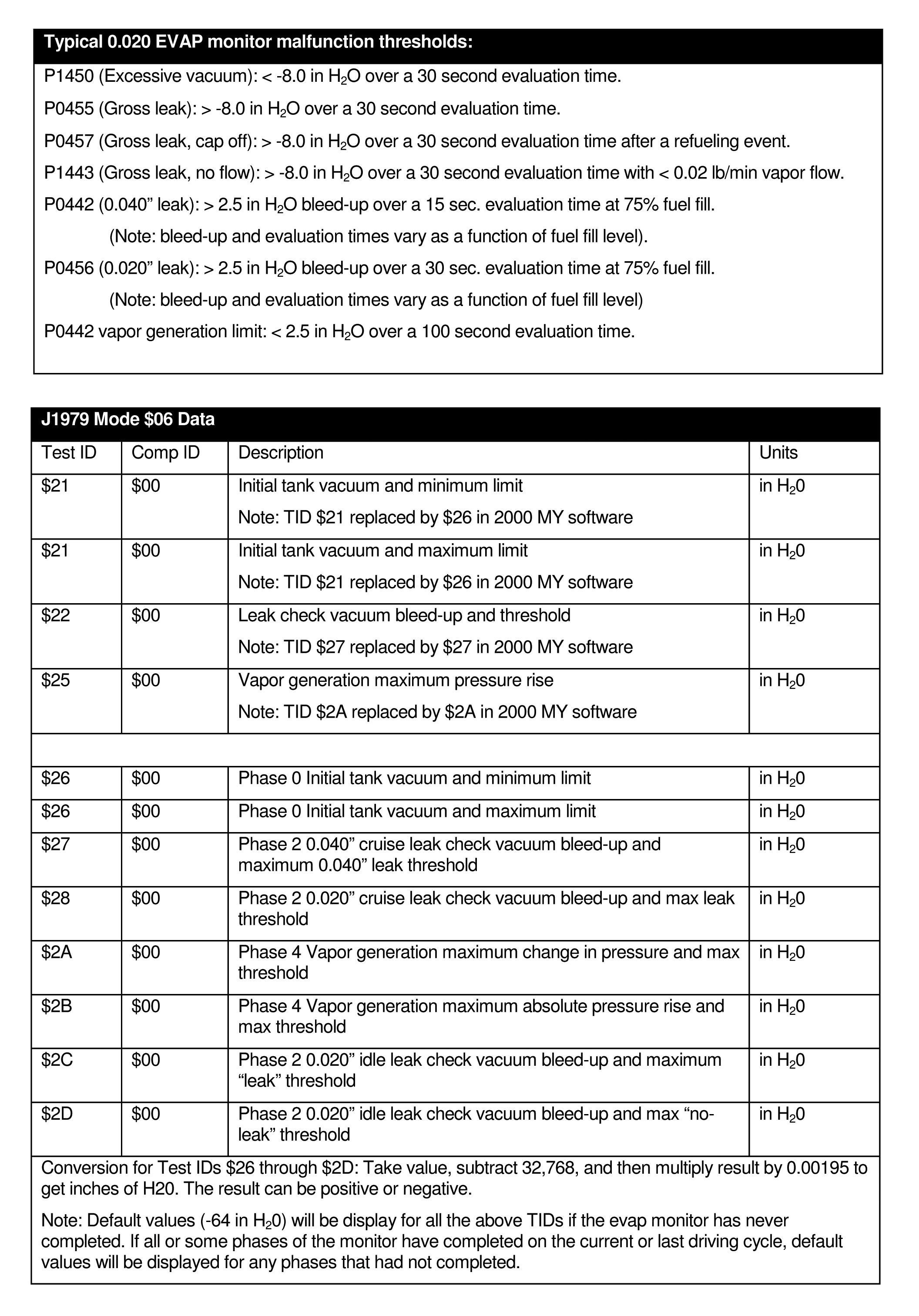

Fig 2: Mode $06 Data For EVAP Monitor (0.020" Leak)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
