Engine Lubrication Components - Exploded View

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

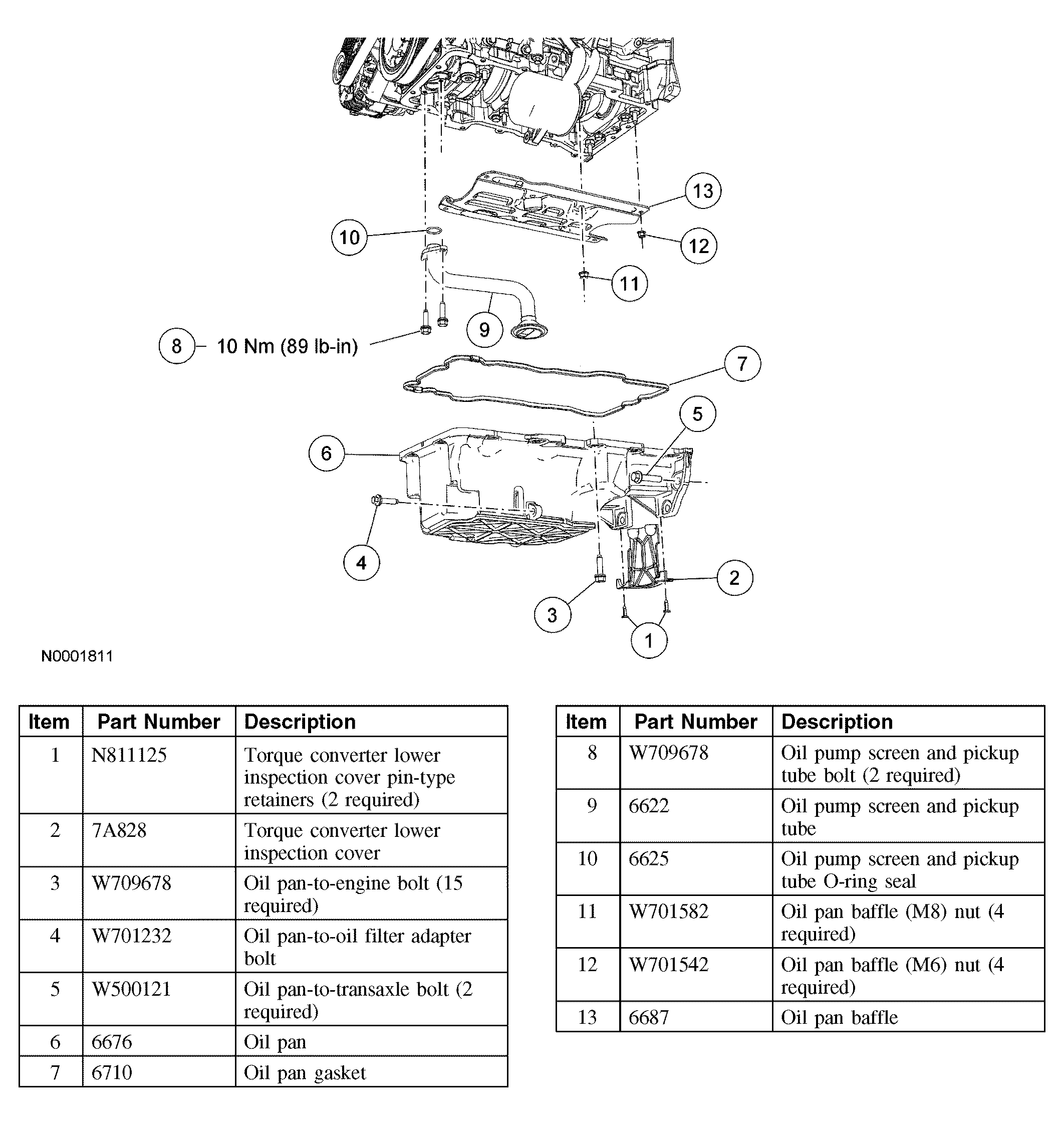

Fig 1: Identifying Oil Pan, Oil Pump Screen And Pickup Tube And Oil Pan Baffle Components
G03990180Courtesy of FORD MOTOR CO.

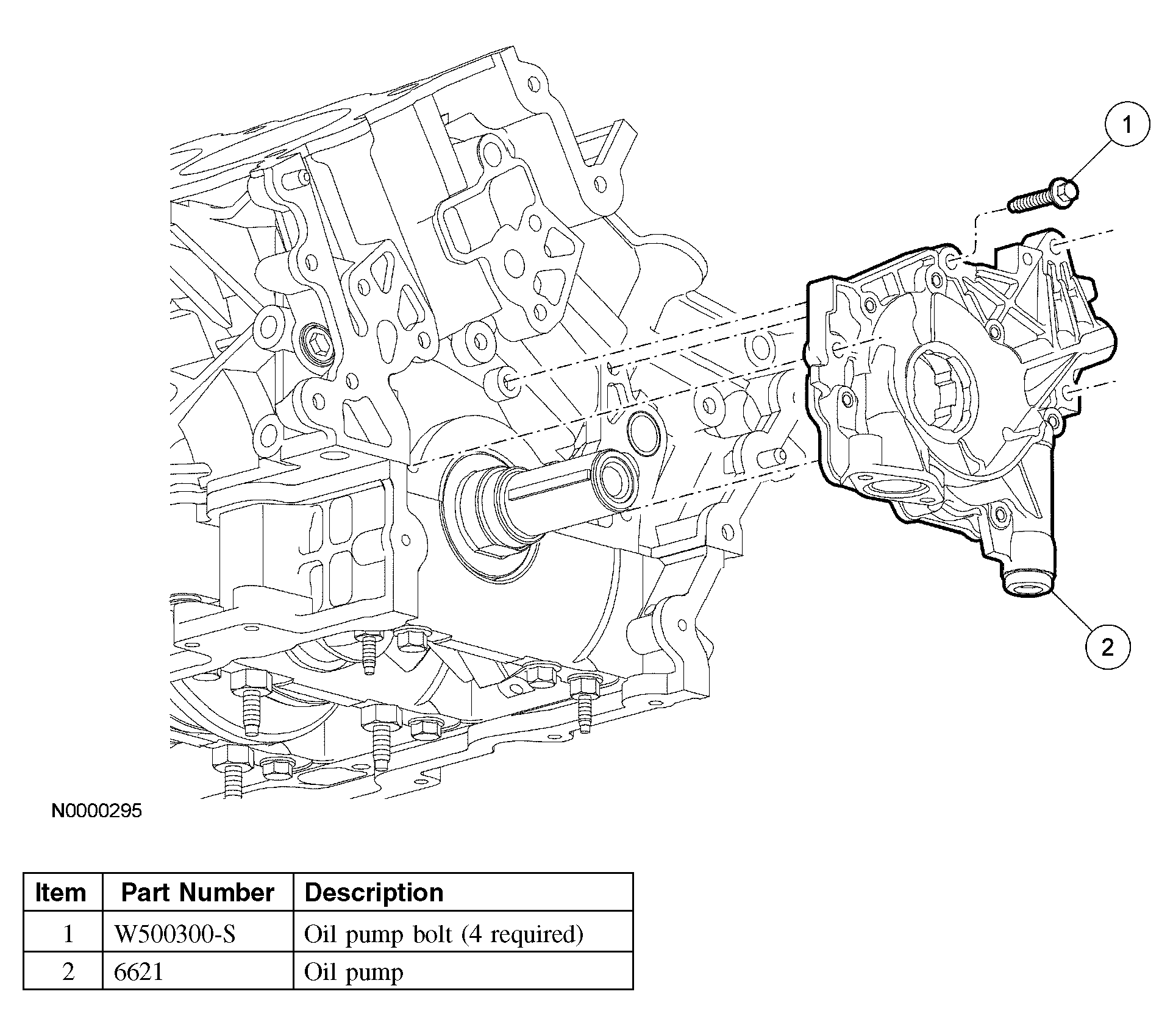

Fig 2: Identifying Oil Pump Components
G03990181Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the procedures below.
