Roof Opening Panel Alignment

WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the roof opening panel to the CLOSED position.
  2. Loosen the 4 roof opening panel glass screws.
  3. Make sure the roof opening panel is centered in the roof opening.

    Adjust the roof opening panel glass height to specification.

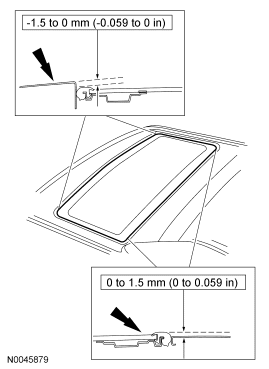

    4. Fig 1: Roof Opening Panel Glass Adjustments With Specifications
    GF0023895Courtesy of FORD MOTOR CO.
  4. Tighten the 4 roof opening panel glass screws to 5 Nm (44 lb-in).
