Window Adjust Switch

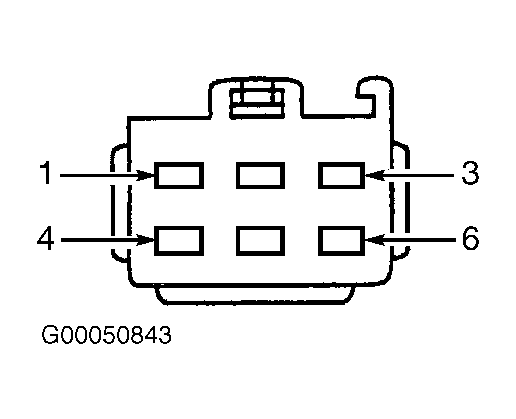

Remove window adjust switch. Check continuity between window adjust switch specified terminals while operating switch in appropriate position. See WINDOW ADJUST SWITCH TESTING table. See Fig 1 . If continuity is not as specified, replace window adjust switch.
WINDOW ADJUST SWITCH TESTING
| Switch Position | Continuity Between Terminals No. |
|---|---|
| Up | 2 & 3 |
| Down | 3 & 5 |
