Home >> Ford >> 2001 >> Windstar Base >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission >> Assembly >> Transaxle >> Special Tools

Special Tools

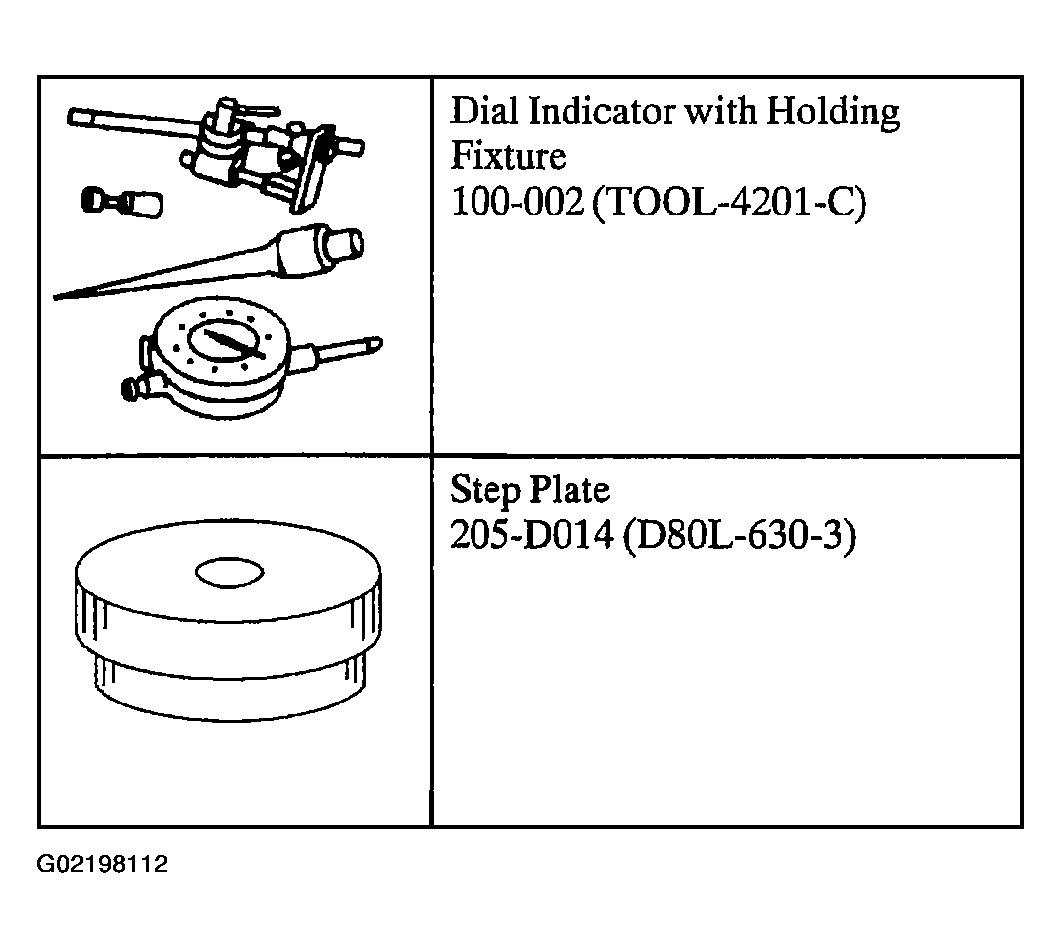

Fig 1: Transaxle Assembly Special Tools (1 Of 6)
G02198112

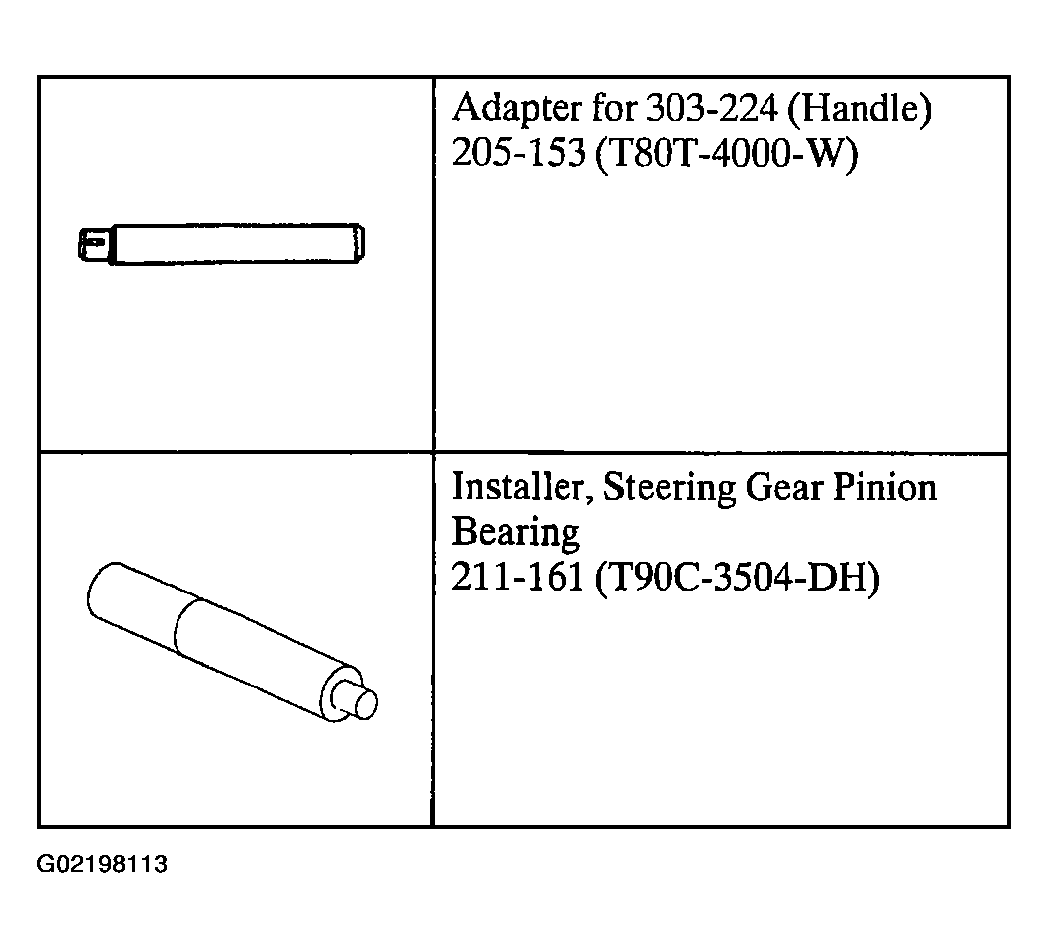

Fig 2: Transaxle Assembly Special Tools (2 Of 6)
G02198113

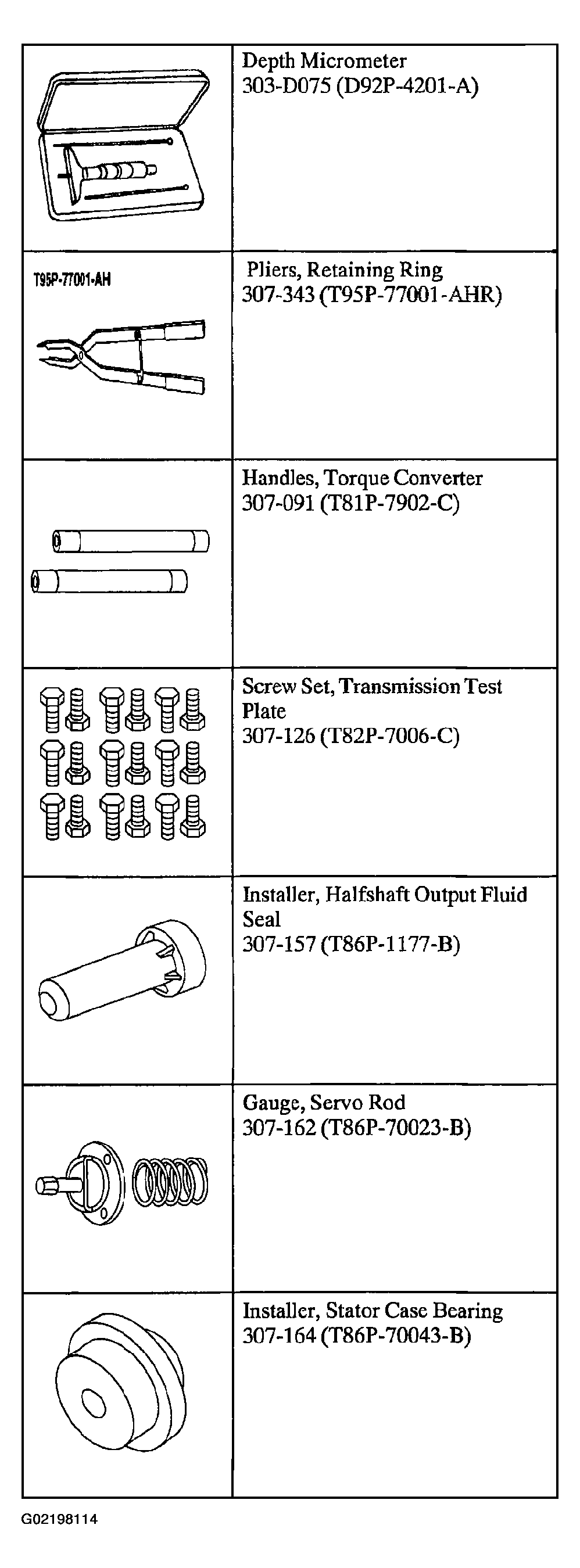

Fig 3: Transaxle Assembly Special Tools (3 Of 6)
G02198114

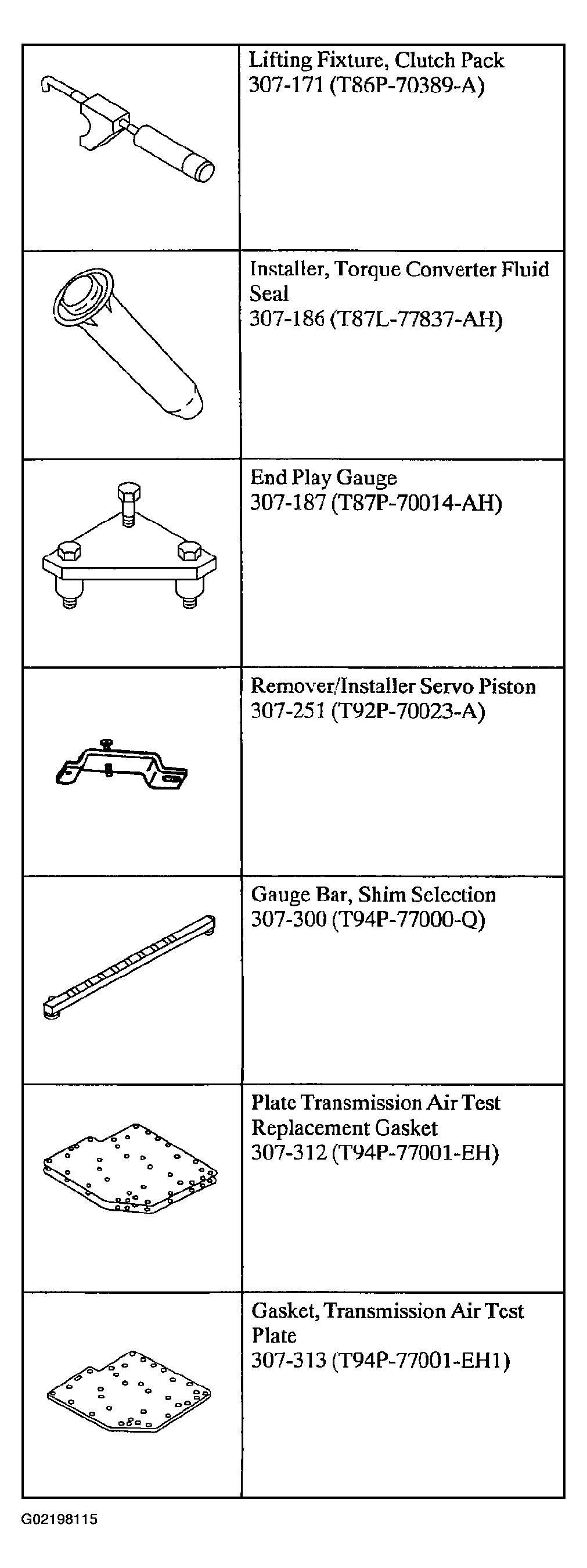

Fig 4: Transaxle Assembly Special Tools (4 Of 6)
G02198115

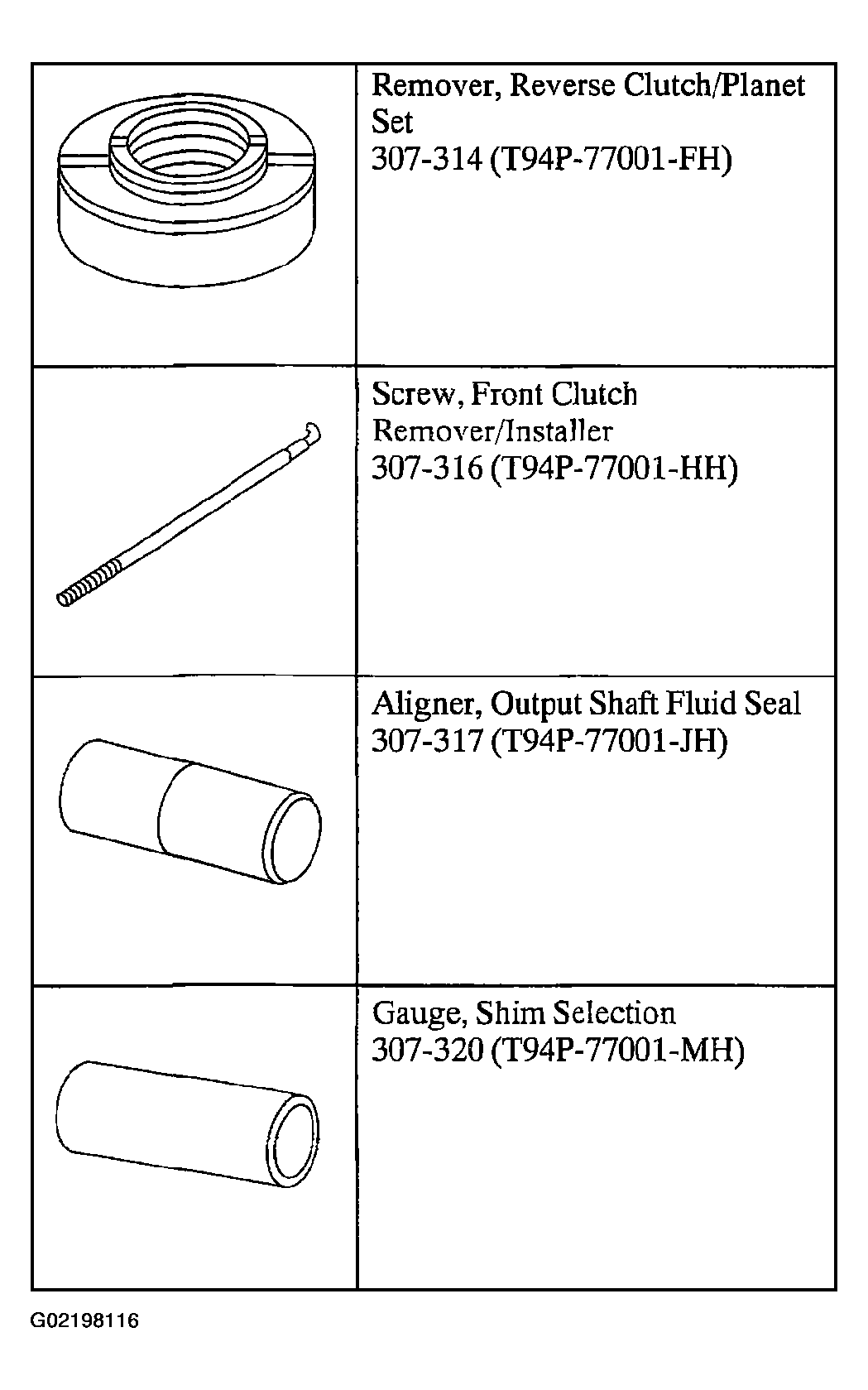

Fig 5: Transaxle Assembly Special Tools (5 Of 6)
G02198116

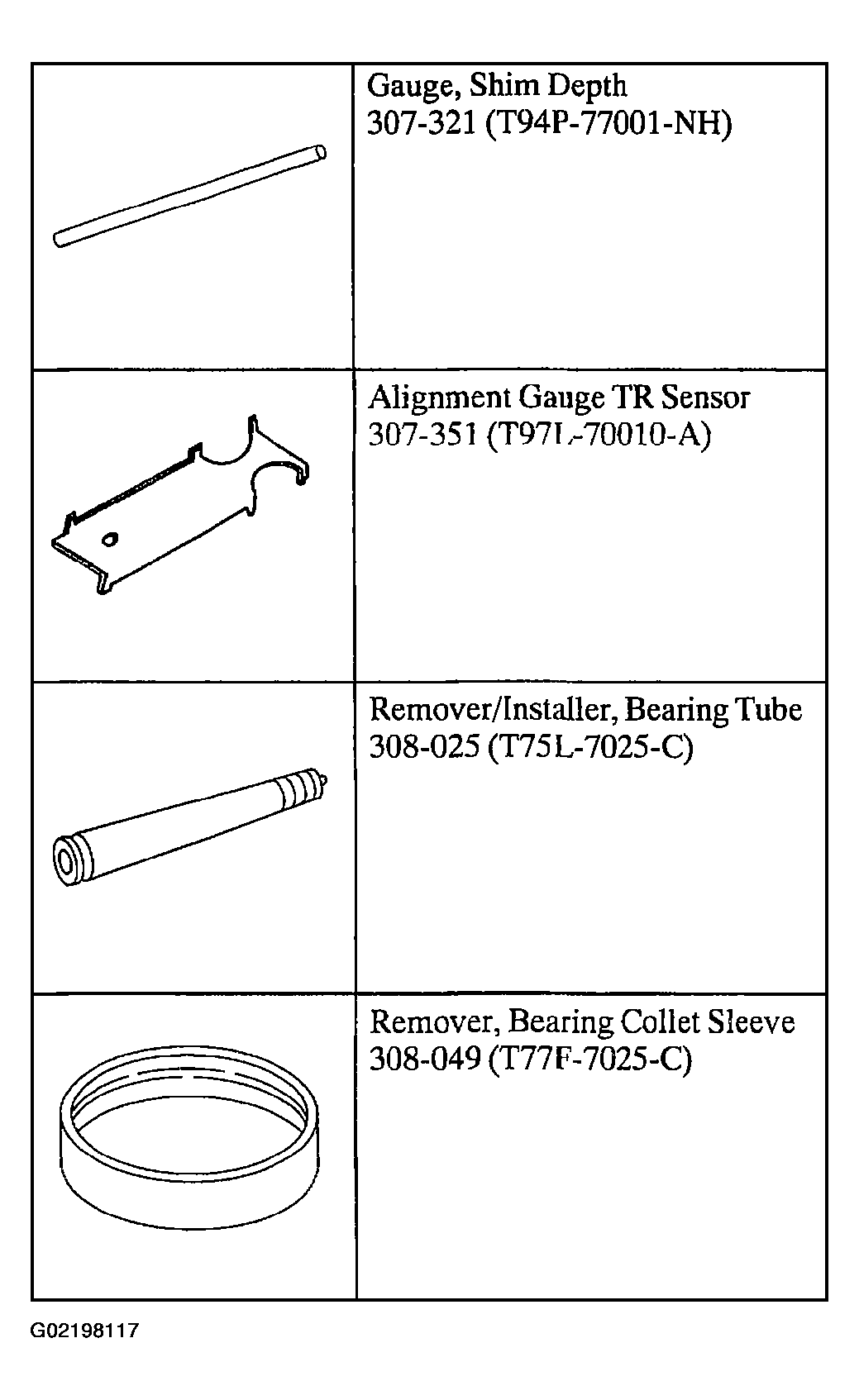

Fig 6: Transaxle Assembly Special Tools (6 Of 6)
G02198117
