Overdrive Servo: Disassembly

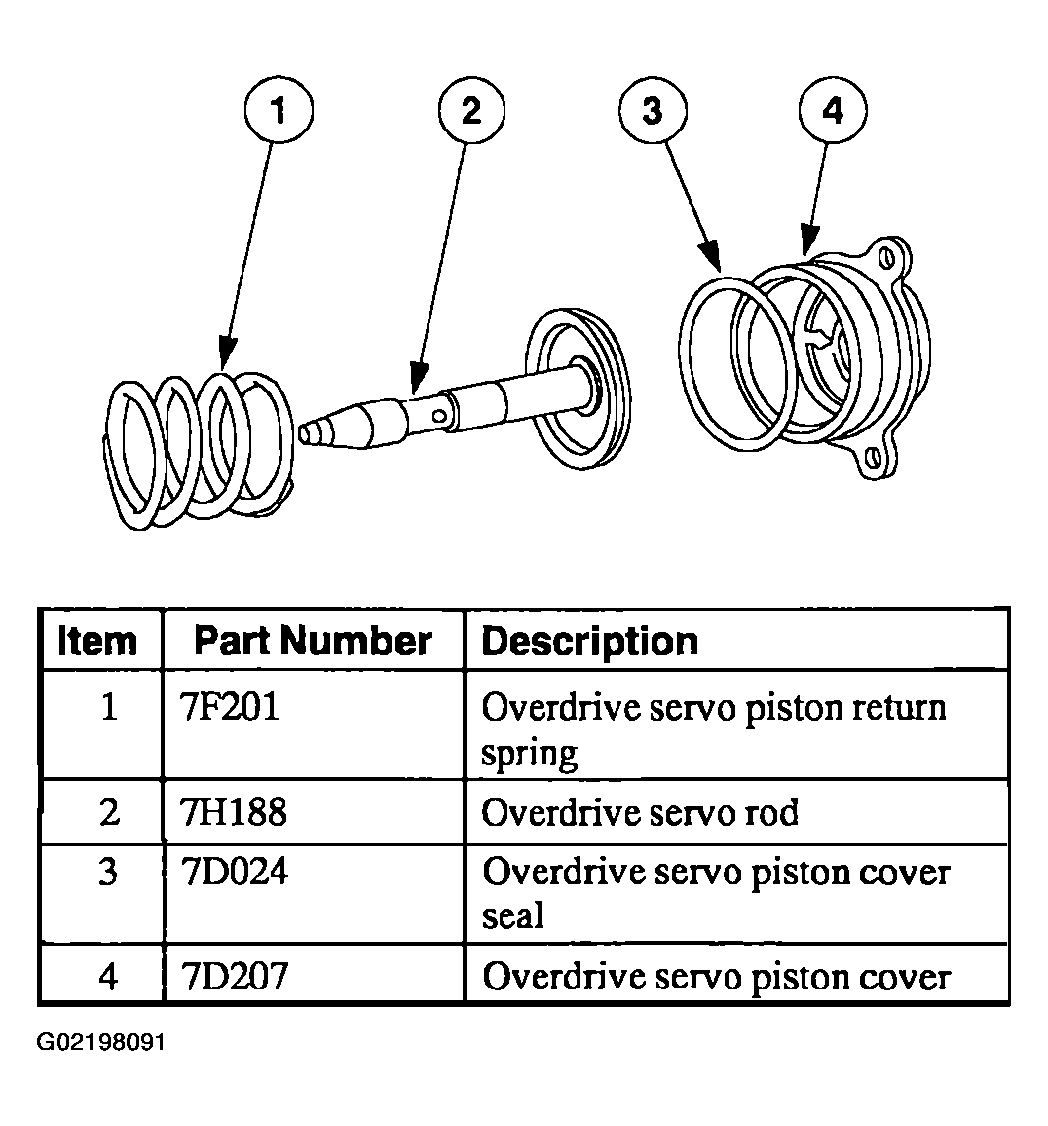

Fig 1: Exploded View Of Overdrive Servo Components
G02198091
  1. Remove the overdrive servo piston return spring.

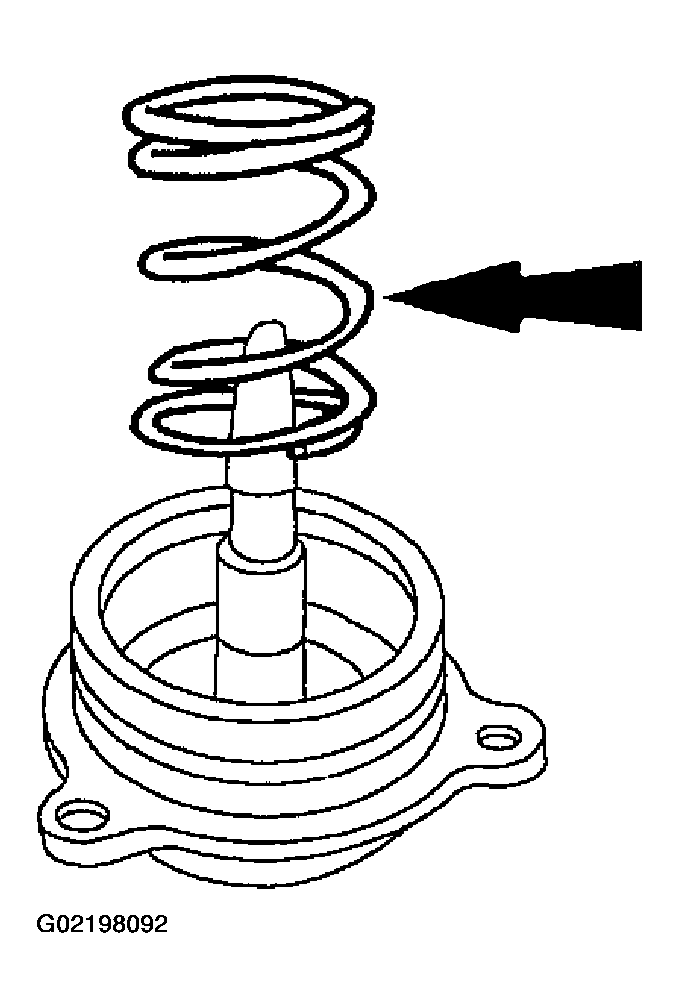

    Fig 2: Removing Overdrive Servo Piston Return Spring
    G02198092
  2. Remove the overdrive servo piston and rod assembly.

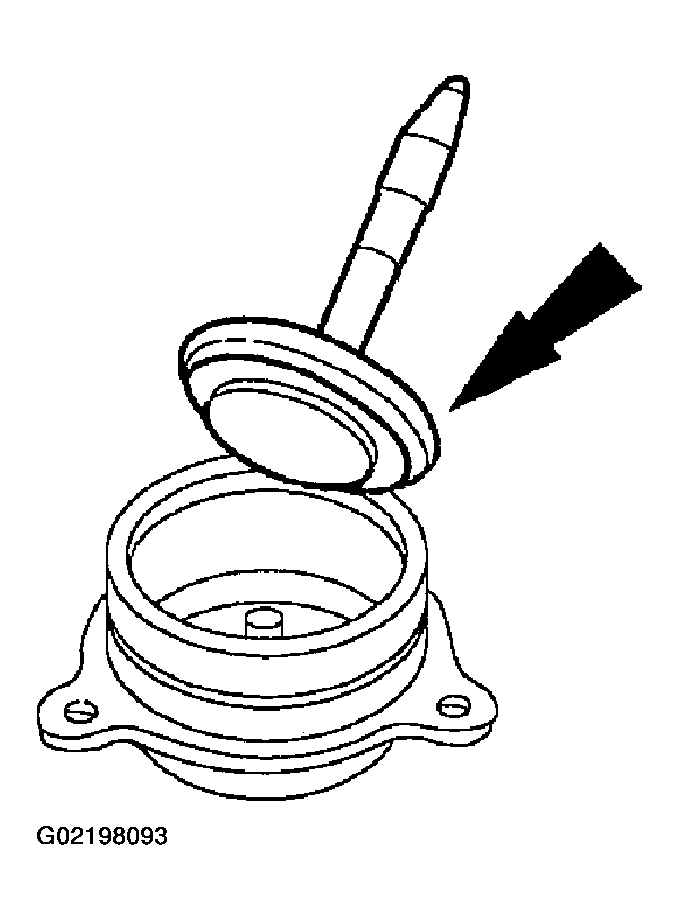

    Fig 3: Removing Overdrive Servo Piston & Rod Assembly
    G02198093
  3. Remove the servo piston seal.

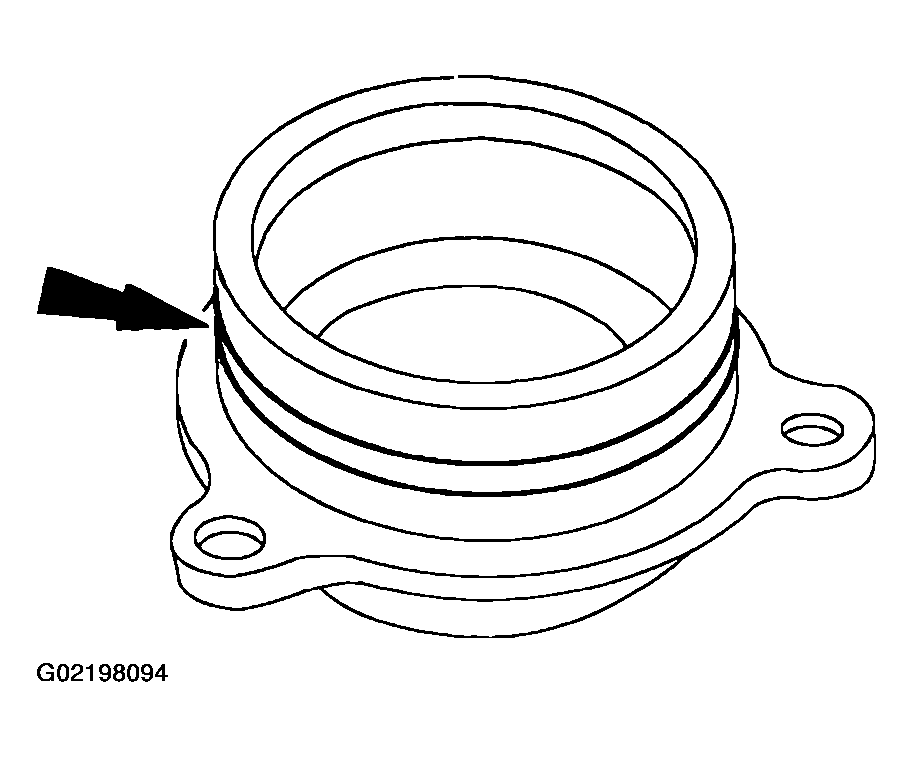

    Fig 4: Removing Servo Piston Seal
    G02198094
