Planet Assembly: Assembly

  1. Install the retaining ring.
    1. Install rear planetary gear assembly.
    2. Install the No. 13 needle bearing with black side of bearing facing up.
    3. Install the front planetary gear assembly.
    4. Install the retaining ring.

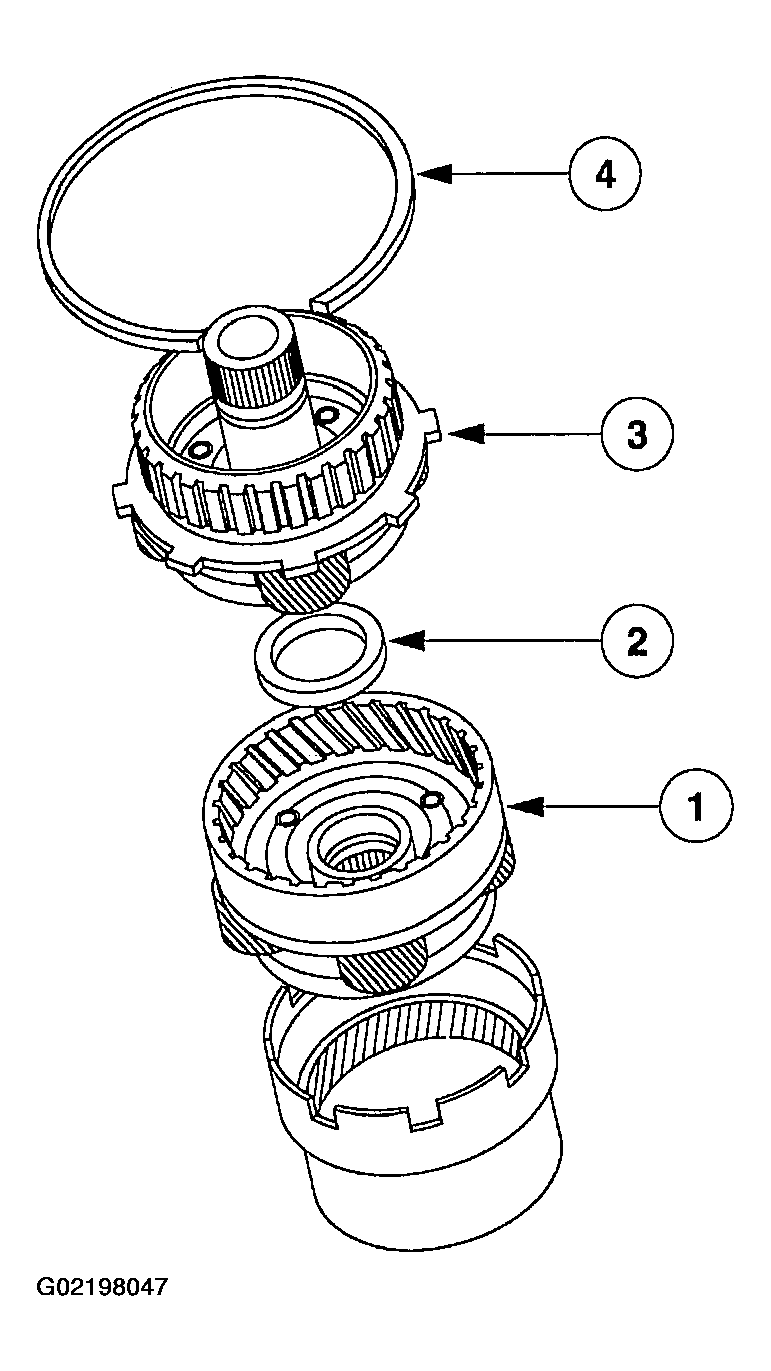

    Fig 1: Installing Retaining Ring
    G02198047
    2. NOTE: Make sure that the reverse clutch assembly is fully scaled.

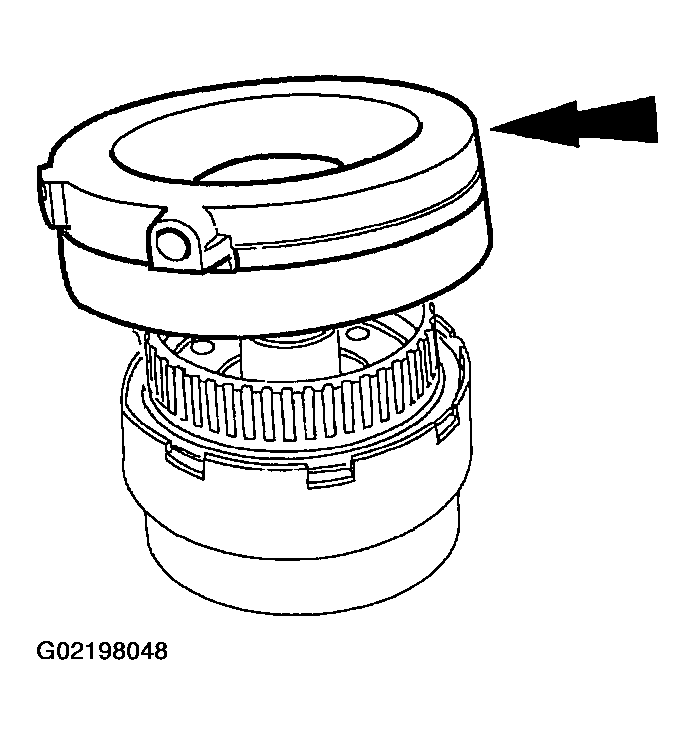

    Fig 2: Installing Reverse Clutch Assembly
    G02198048
  2. Install the reverse clutch assembly.
