Home >> Ford >> 2001 >> Windstar Base >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission >> Disassembly >> Transaxle >> Transaxle Disassembly Special Tools

Transaxle Disassembly Special Tools

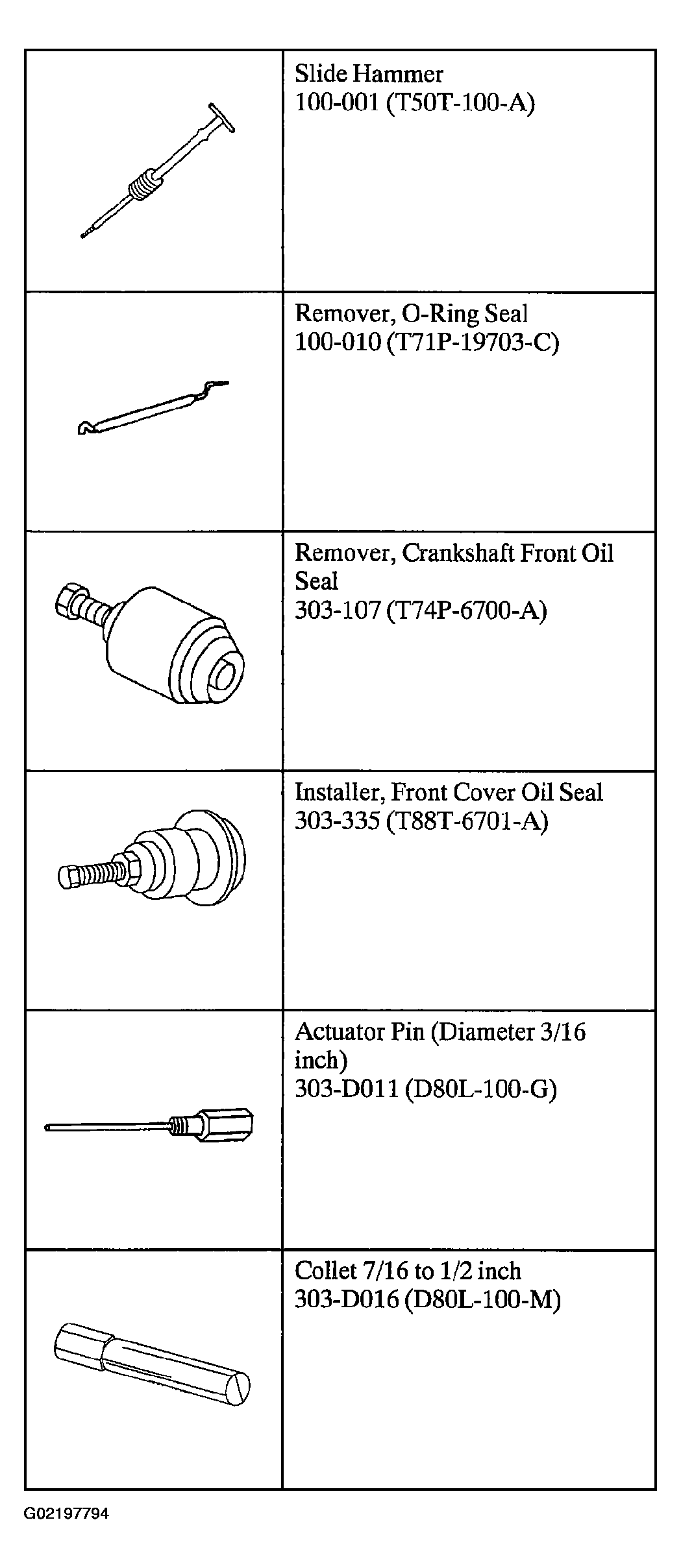

Fig 1: Transaxle Disassembly Special Tools (1 Of 4)
G02197794

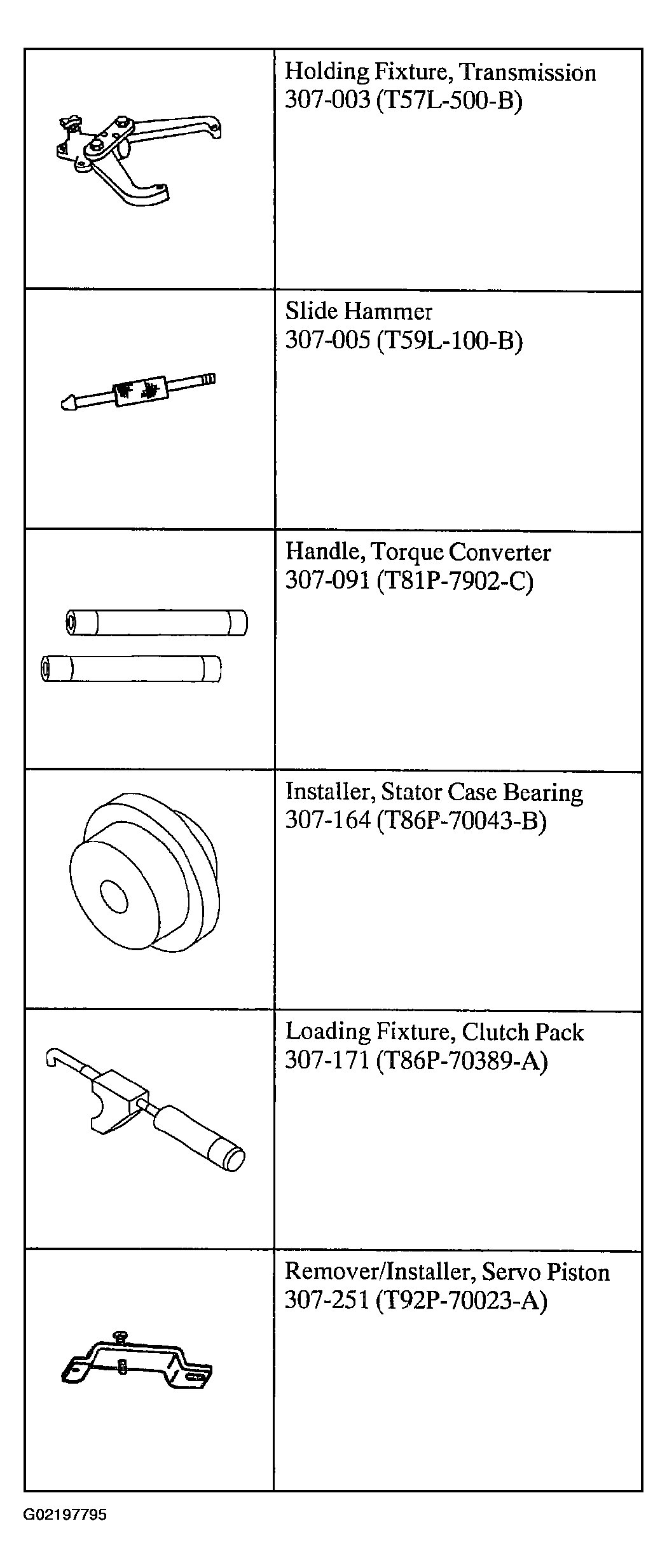

Fig 2: Transaxle Disassembly Special Tools (2 Of 4)
G02197795

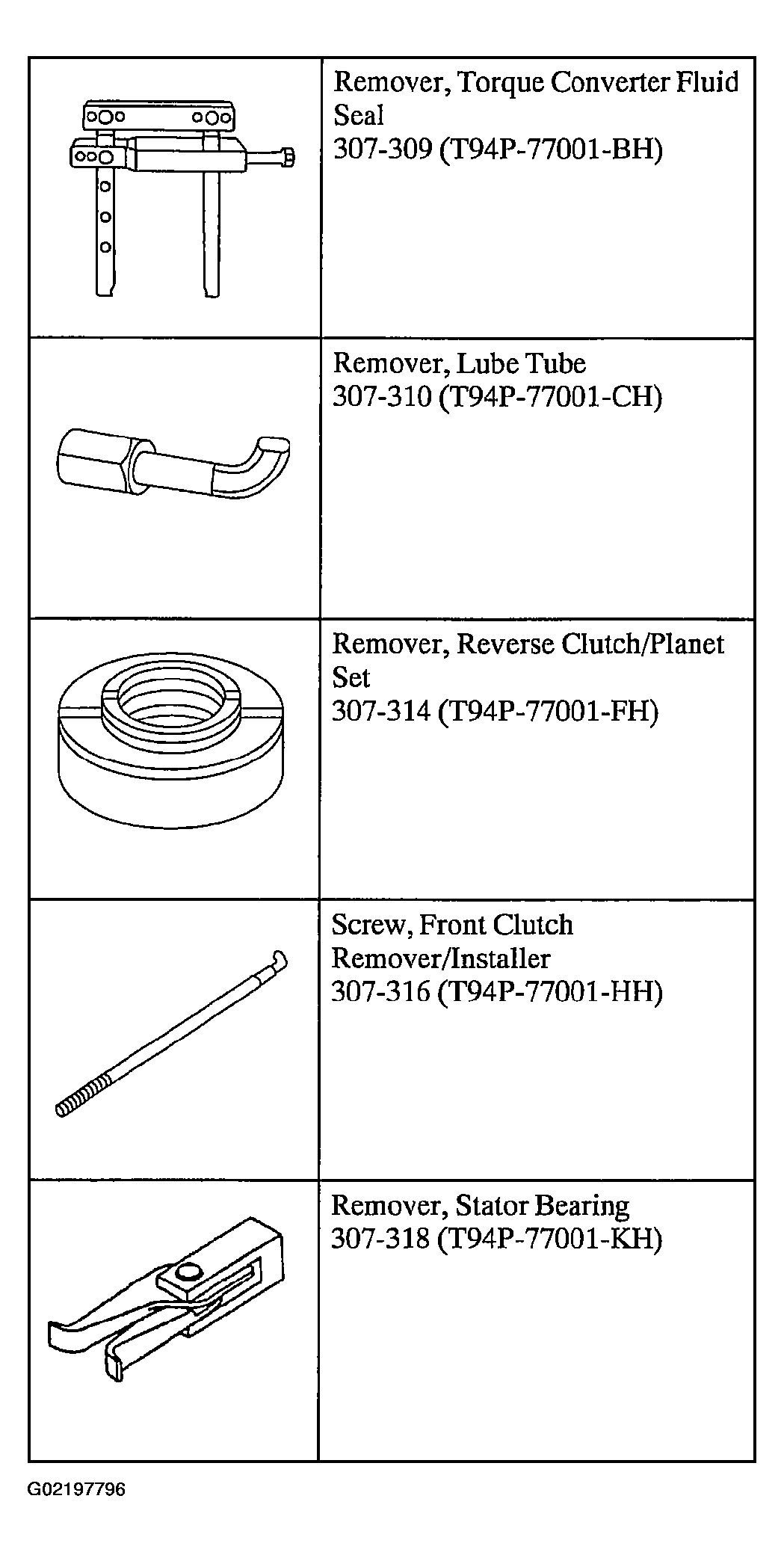

Fig 3: Transaxle Disassembly Special Tools (3 Of 4)
G02197796

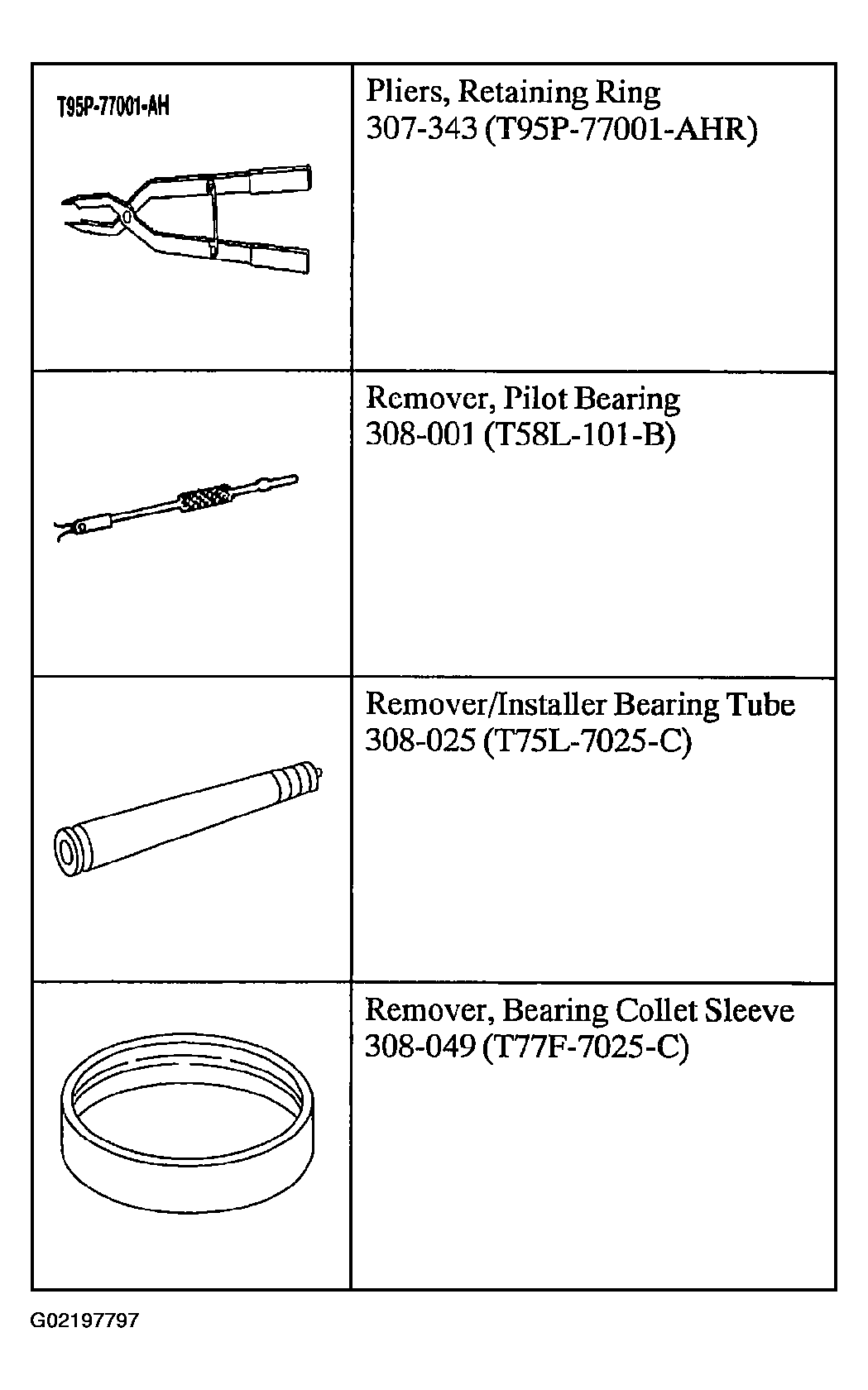

Fig 4: Transaxle Disassembly Special Tools (4 Of 4)
G02197797
