Fill Procedure

  1. Park the vehicle on level ground and apply the parking brake.
  2. Disconnect the vehicle speed sensor (VSS) electrical connector.

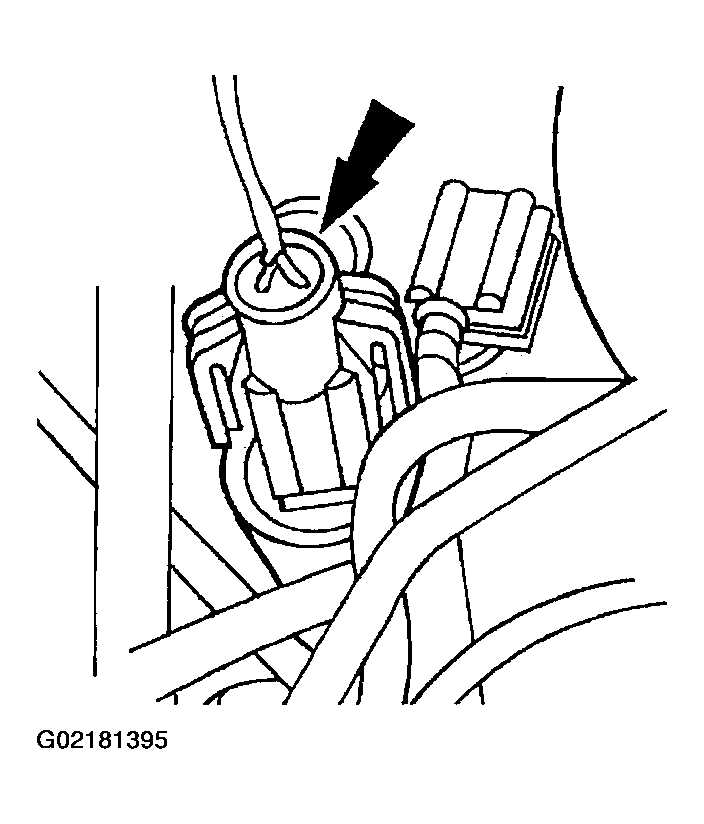

    Fig 1: Disconnecting Vehicle Speed Sensor (VSS) Electrical Connector
    G02181395
  3. Remove the bolt and the VSS.

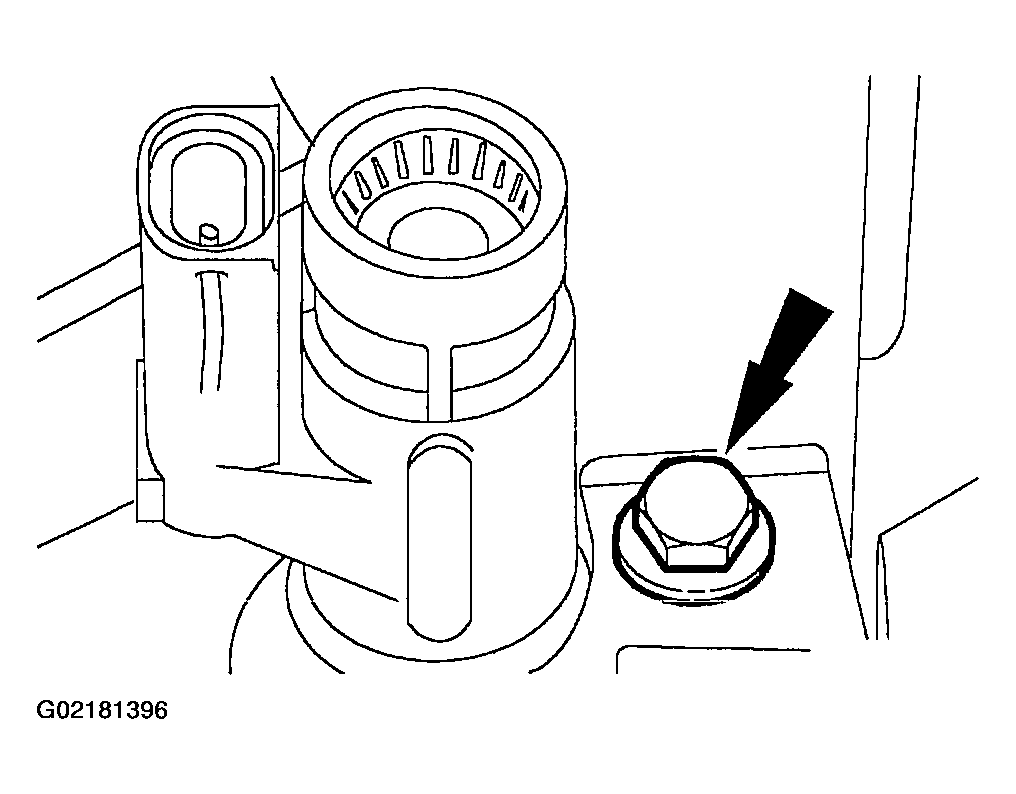

    Fig 2: Removing Bolt & VSS
    G02181396
  4. Place a funnel into the VSS hole.

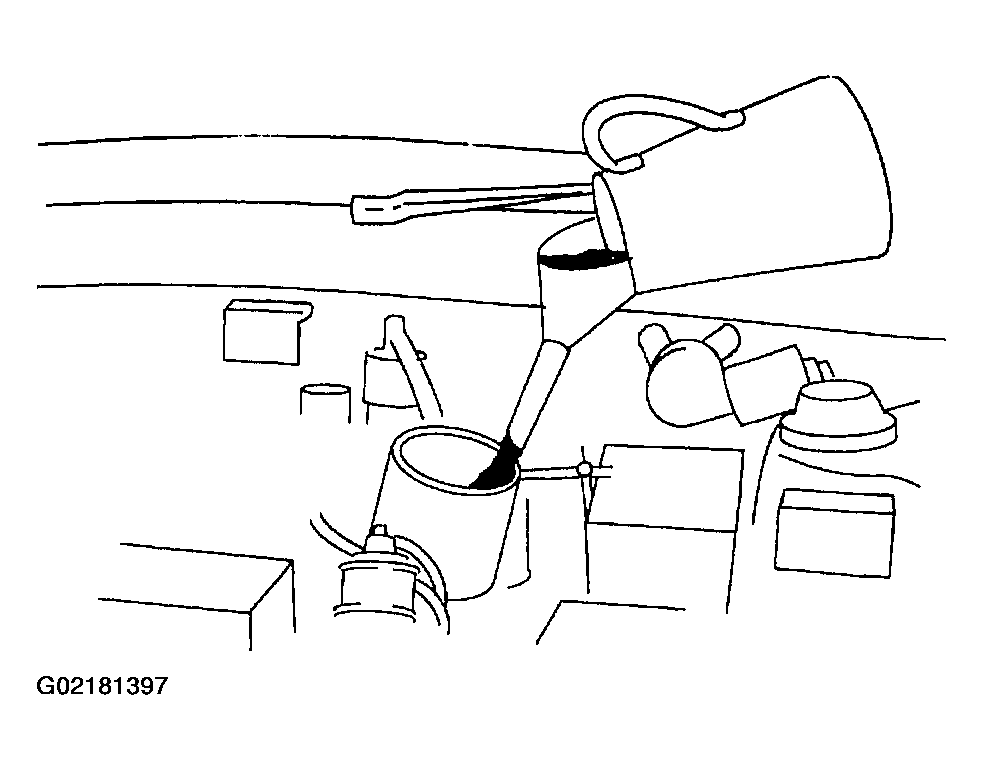

    Fig 3: Placing Funnel Into VSS Hole
    G02181397
  5. Add the specified transaxle fluid until the full level on the VSS is reached.

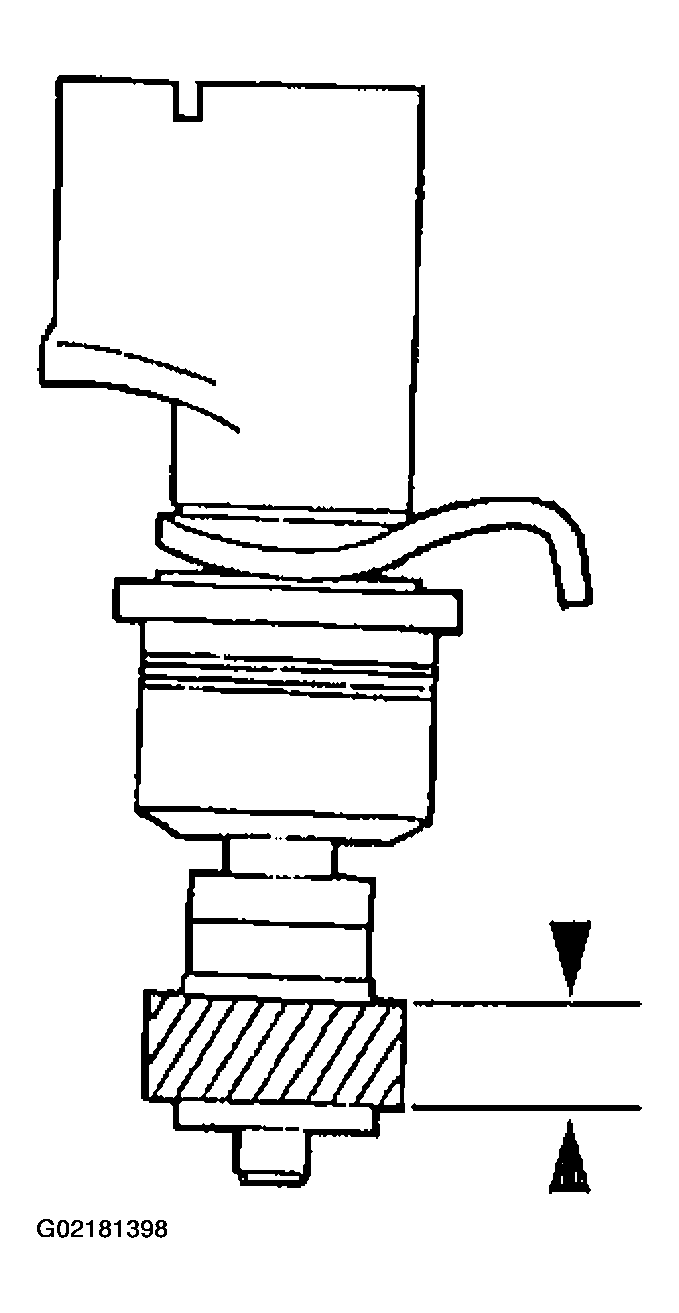

    Fig 4: Identifying Transaxle Fluid Full Level On VSS
    G02181398
  6. Install the VSS and the bolt.

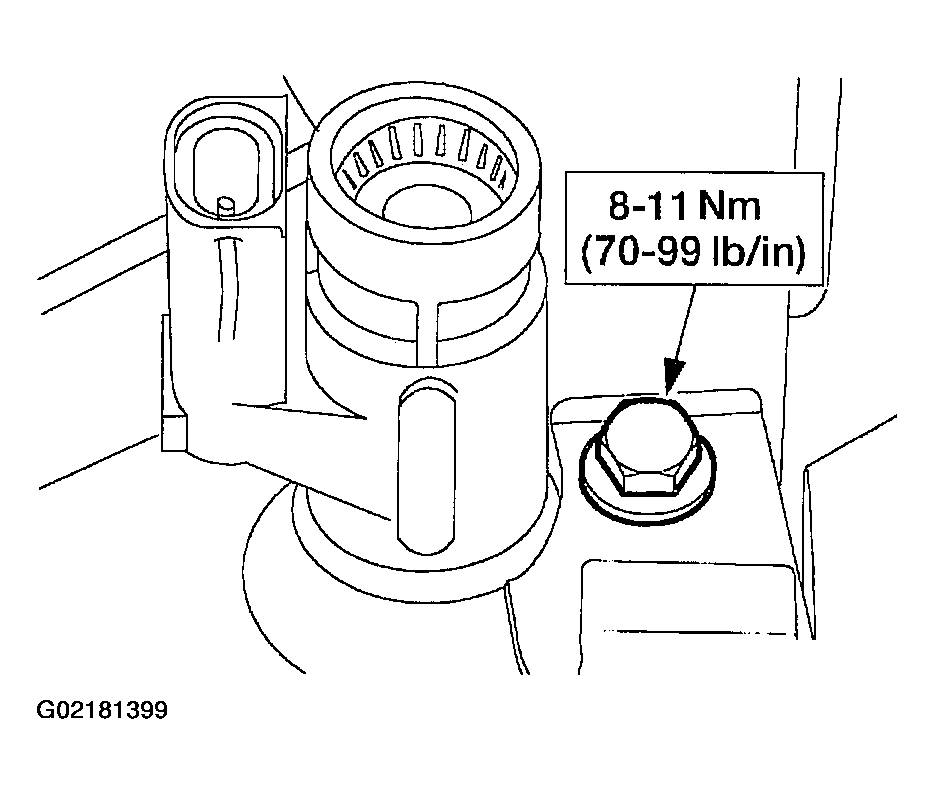

    Fig 5: Installing VSS & Bolt
    G02181399
  7. Connect the VSS electrical connector.
    Fig 6: Connecting VSS Electrical Connector
    G02181400
