Diagnostic Tool Message Index

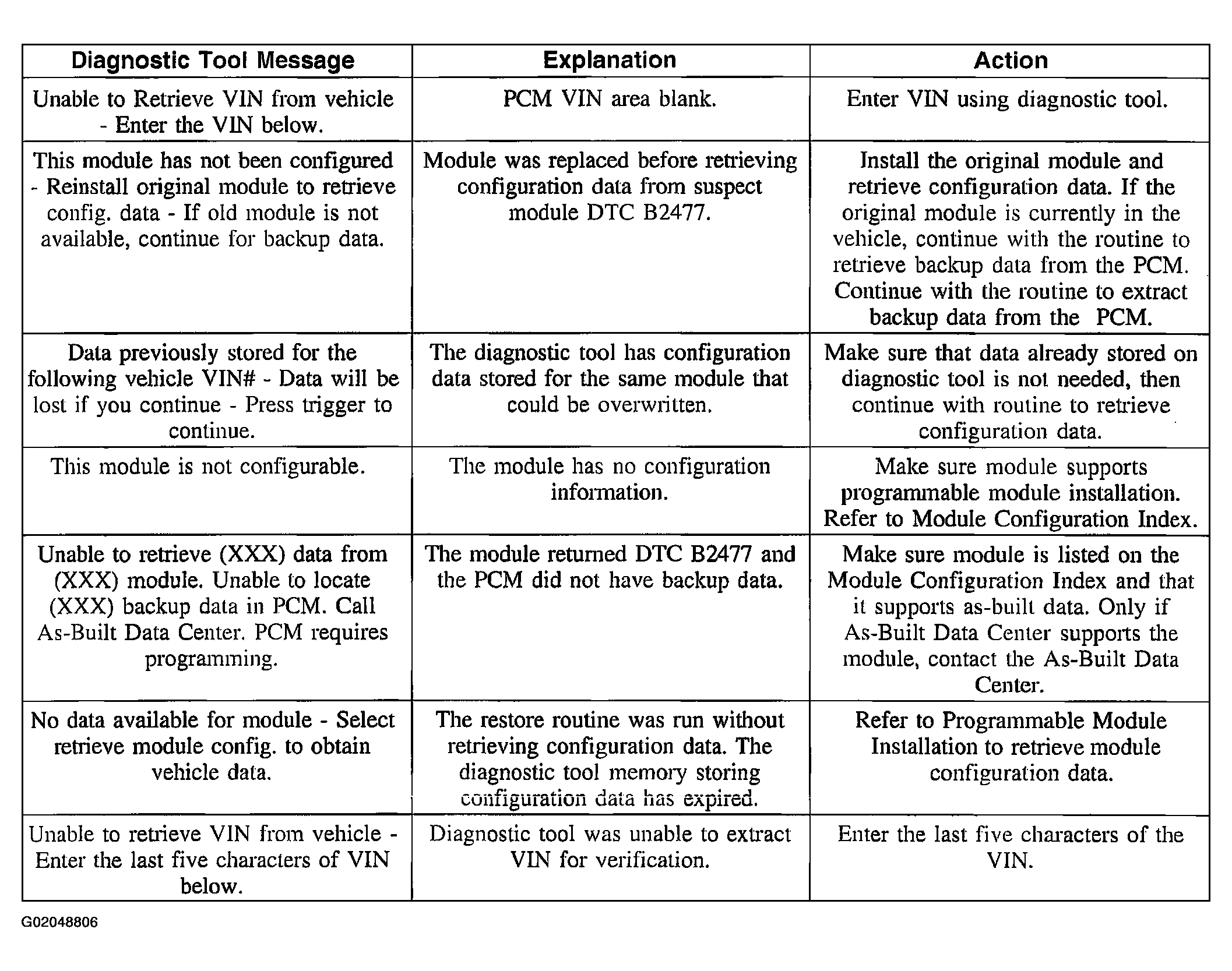

Fig 1: Diagnostic Tool Message Index (1 Of 2)

G02048806

Courtesy of FORD MOTOR CO.

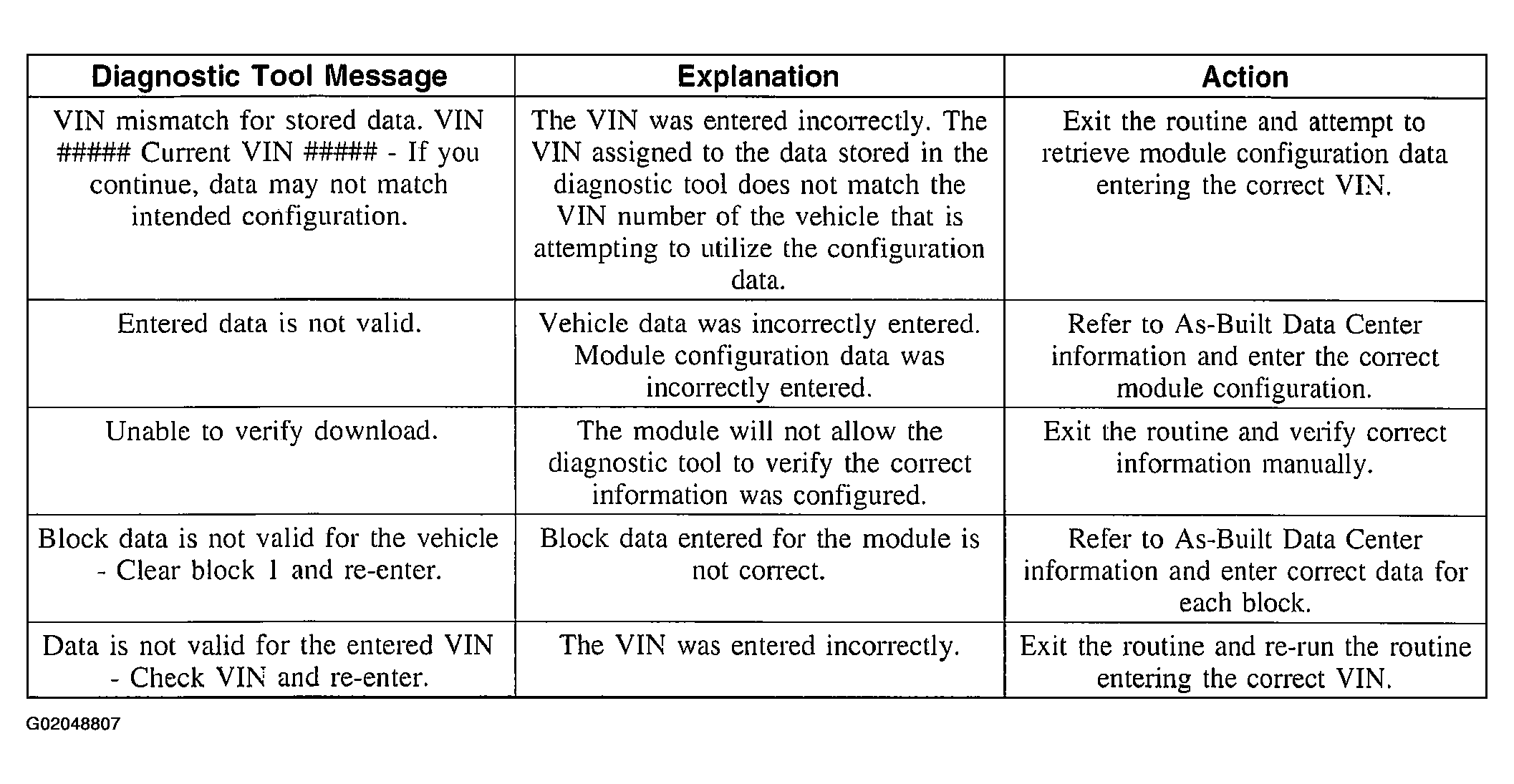

Fig 2: Diagnostic Tool Message Index (2 Of 2)

G02048807

Courtesy of FORD MOTOR CO.
