Home >> Ford >> 2002 >> Focus S2 >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission >> Disassembly And Assembly Of Subassemblies >> Direct Clutch >> Material

Direct Clutch: Material

MATERIAL SPECIFICATIONS

Automatic transmission fluid

XT -5-QM (MERCON® V)

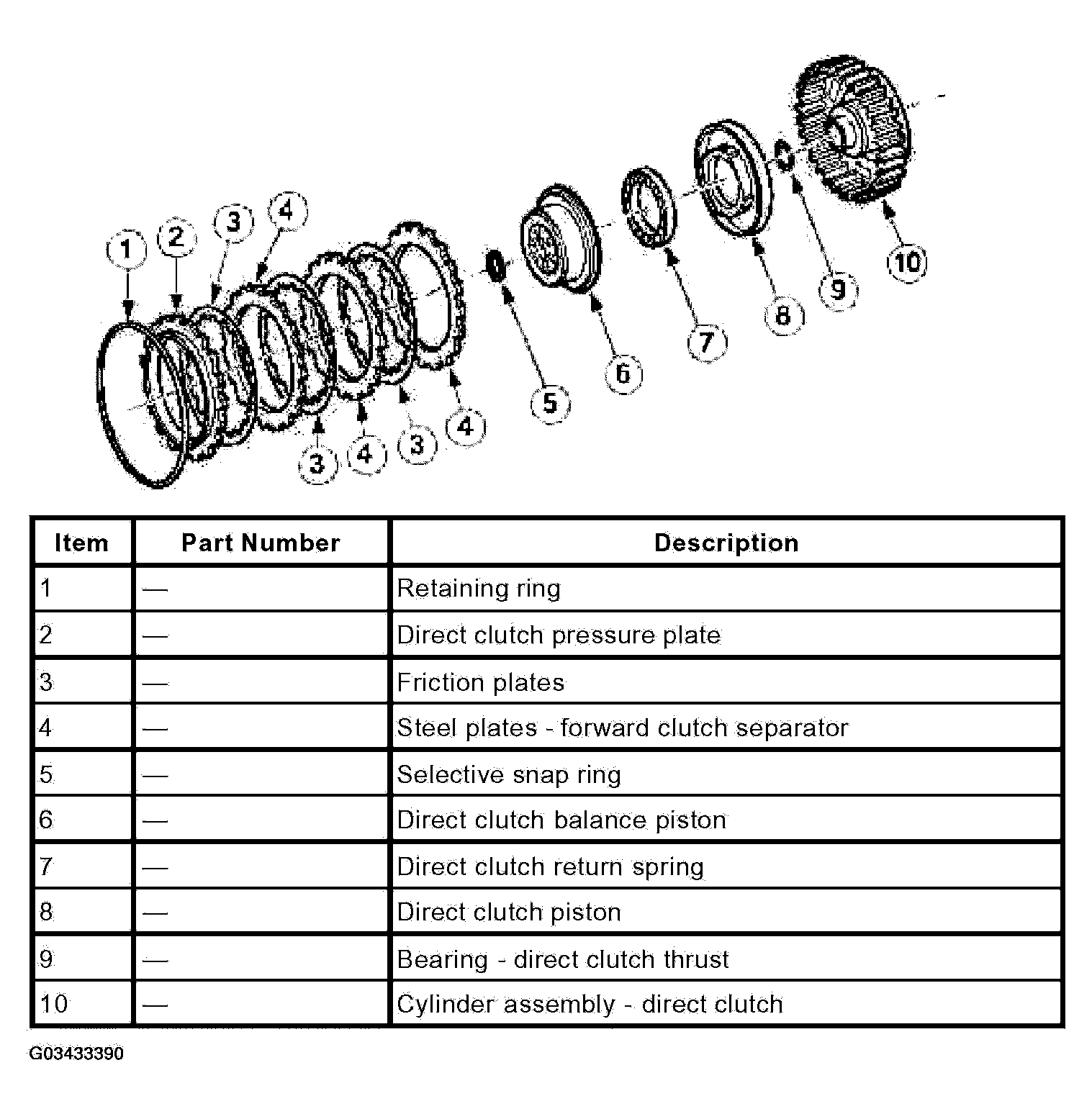

Fig 1: Identifying Direct Clutch Component

G03433390

Courtesy of FORD MOTOR CO.
