Forward Clutch: Material

MATERIAL SPECIFICATIONS

Automatic transmission fluid

XT -5-QM (MERCON® V)

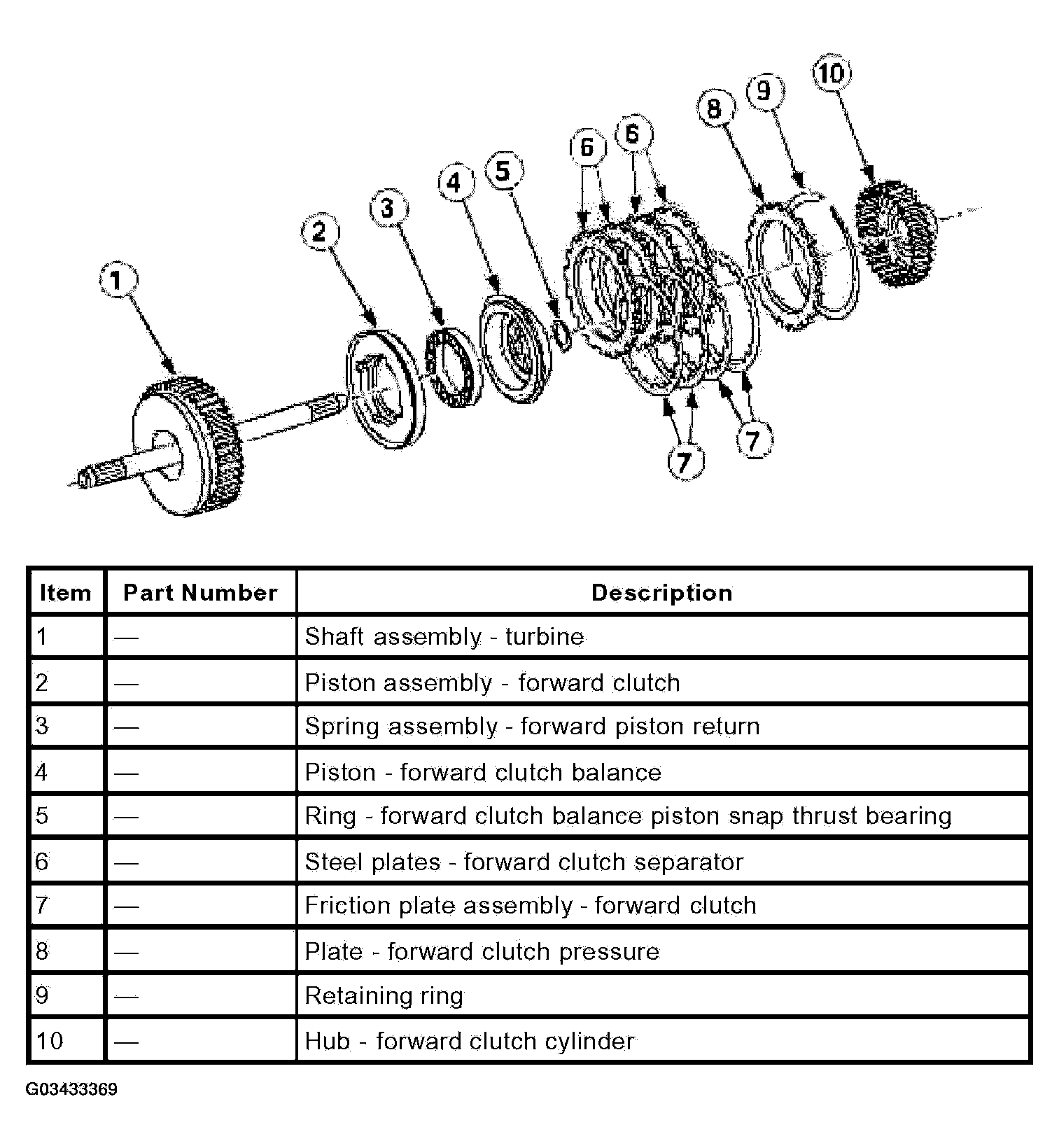

Fig 1: Identifying Forward Clutch Component

G03433369

Courtesy of FORD MOTOR CO.
