Main Control Valve Body: Disassembly

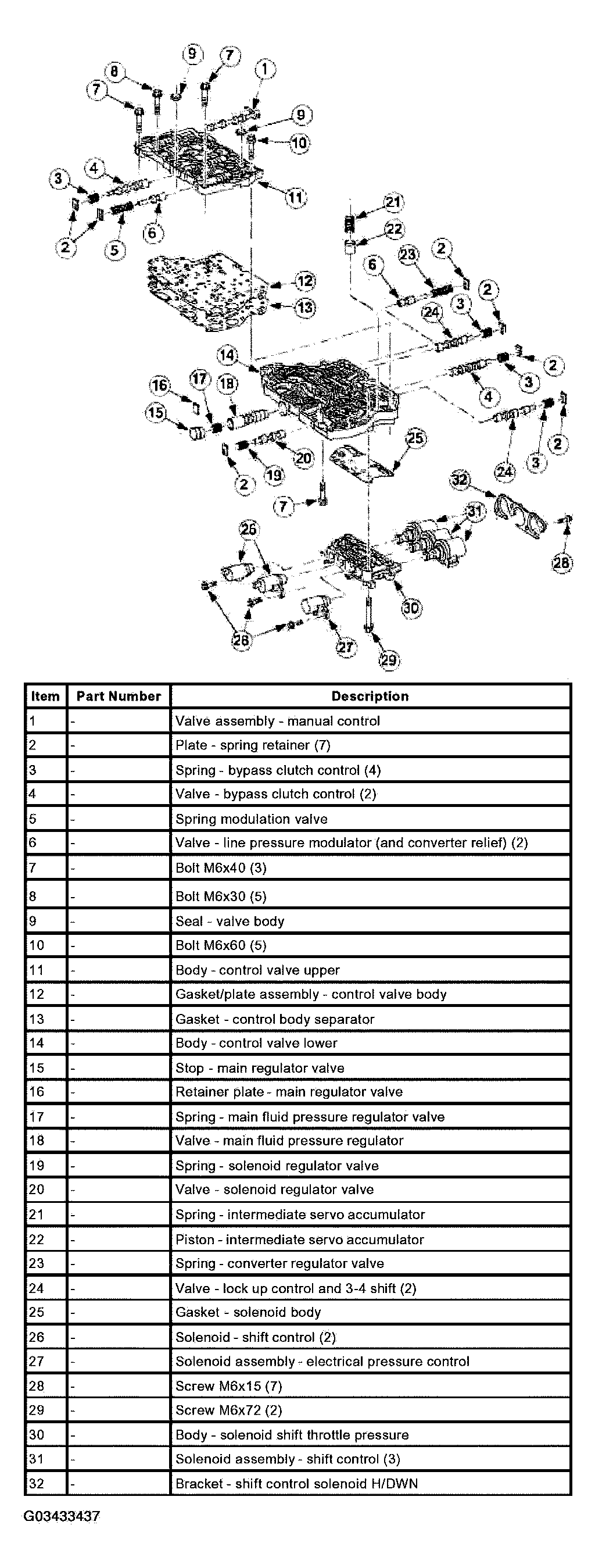

Fig 1: Disassembling View Of Main Control Valve Body
G03433437Courtesy of FORD MOTOR CO.
  1. Remove the solenoid body bolts and the solenoid body.

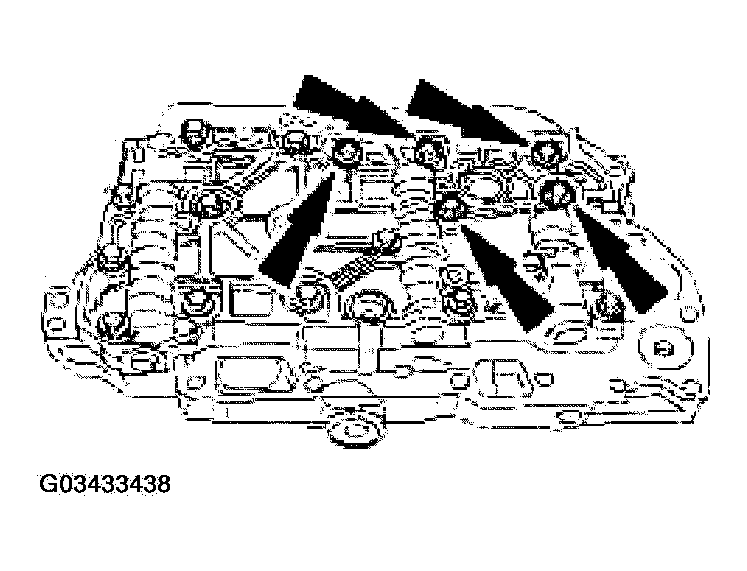

    Fig 2: Removing Solenoid Body Bolts And Solenoid Body
    G03433438Courtesy of FORD MOTOR CO.
  2. Remove and discard the solenoid body gaskets.

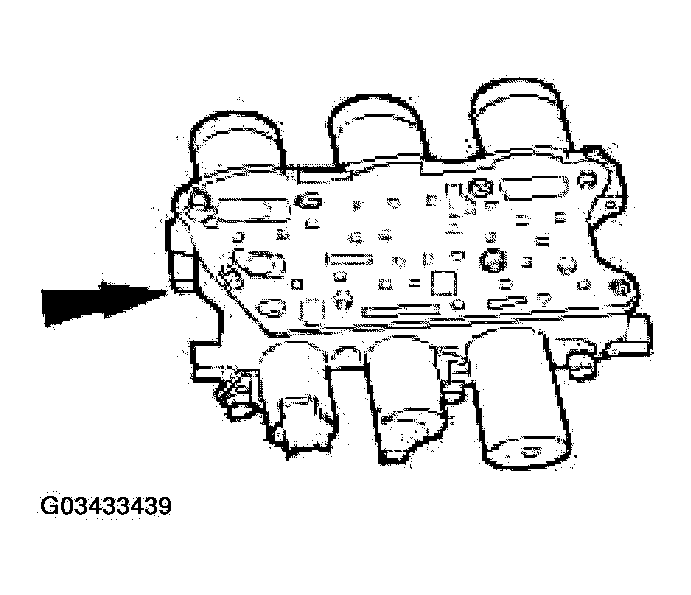

    Fig 3: Removing Solenoid Body Gaskets
    G03433439Courtesy of FORD MOTOR CO.
  3. Remove and discard the seals.

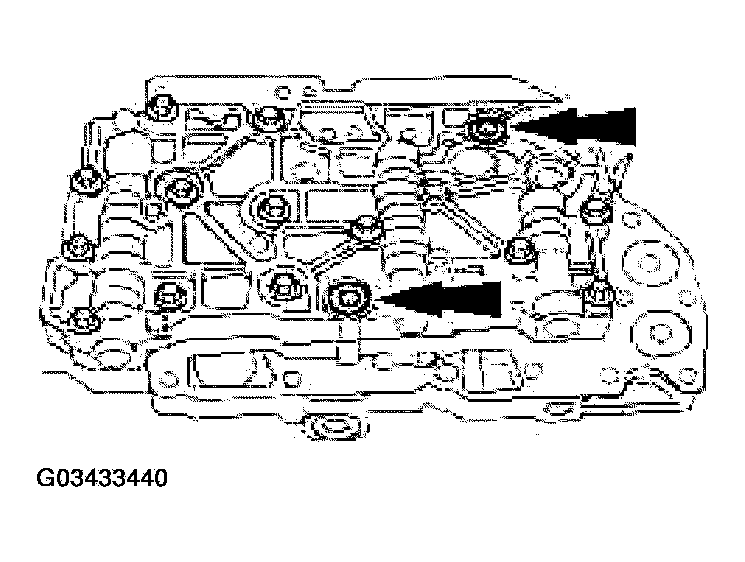

    Fig 4: Removing Seals
    G03433440Courtesy of FORD MOTOR CO.
  4. Disassemble the main control valve body.

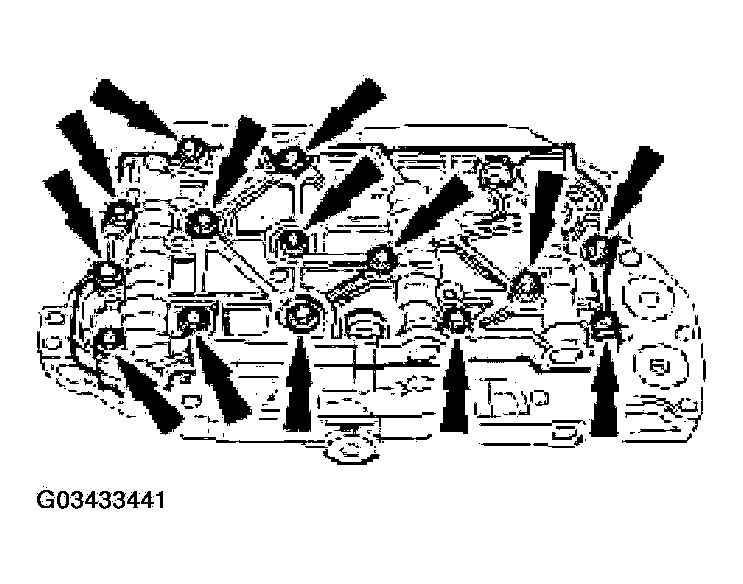

    Fig 5: Disassembling Main Control Valve Body
    G03433441Courtesy of FORD MOTOR CO.
