Piston Diameter

GENERAL EQUIPMENT (MICROMETER)

Micrometer
    NOTE: Mark the piston to make sure the piston is installed correctly.

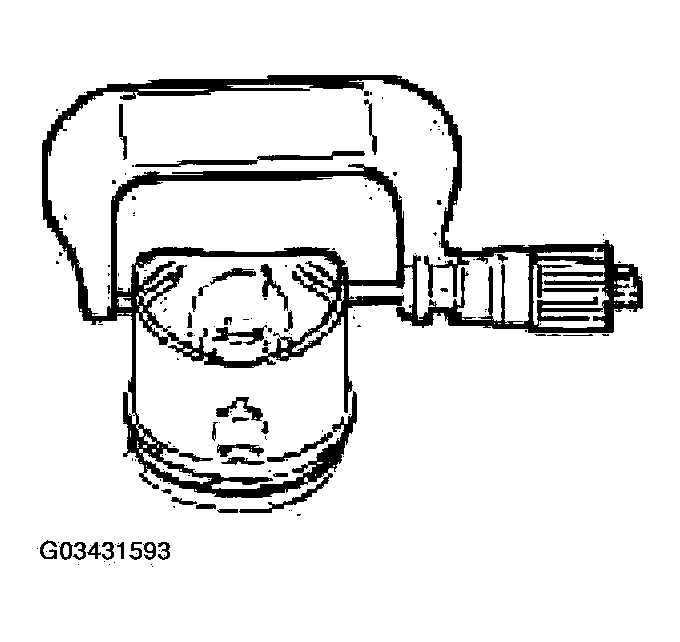

    Fig 1: Measuring Piston Diameter
    G03431593Courtesy of FORD MOTOR CO.
  1. Using a Micrometer measure the piston diameter.
