Home >> Ford >> 2002 >> Focus ZX5, Automatic >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Control >> Diagnosis And Testing >> Anti-Lock Control >> Pinpoint Tests >> Pinpoint Test A: No Communication With The Abs Module

Pinpoint Test A: No Communication With The Abs Module

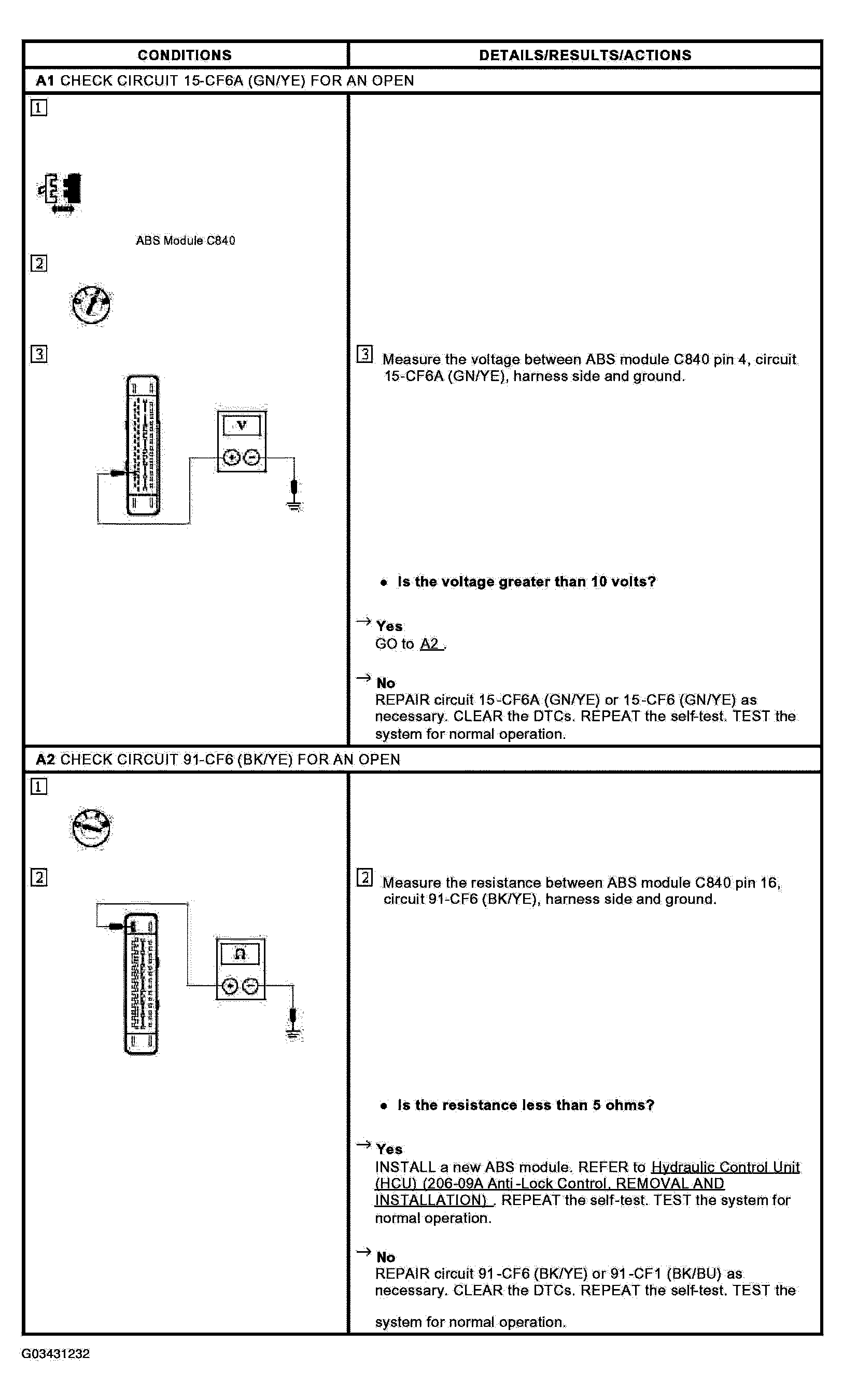

Fig 1: Pinpoint Test A Chart - No Communication With ABS Module
G03431232Courtesy of FORD MOTOR CO.
