Home >> Ford >> 2002 >> Mustang Base, 2D Convertible, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission >> Description And Operation >> Apply Components >> Clutch-Reverse

Apply Components: Clutch-Reverse

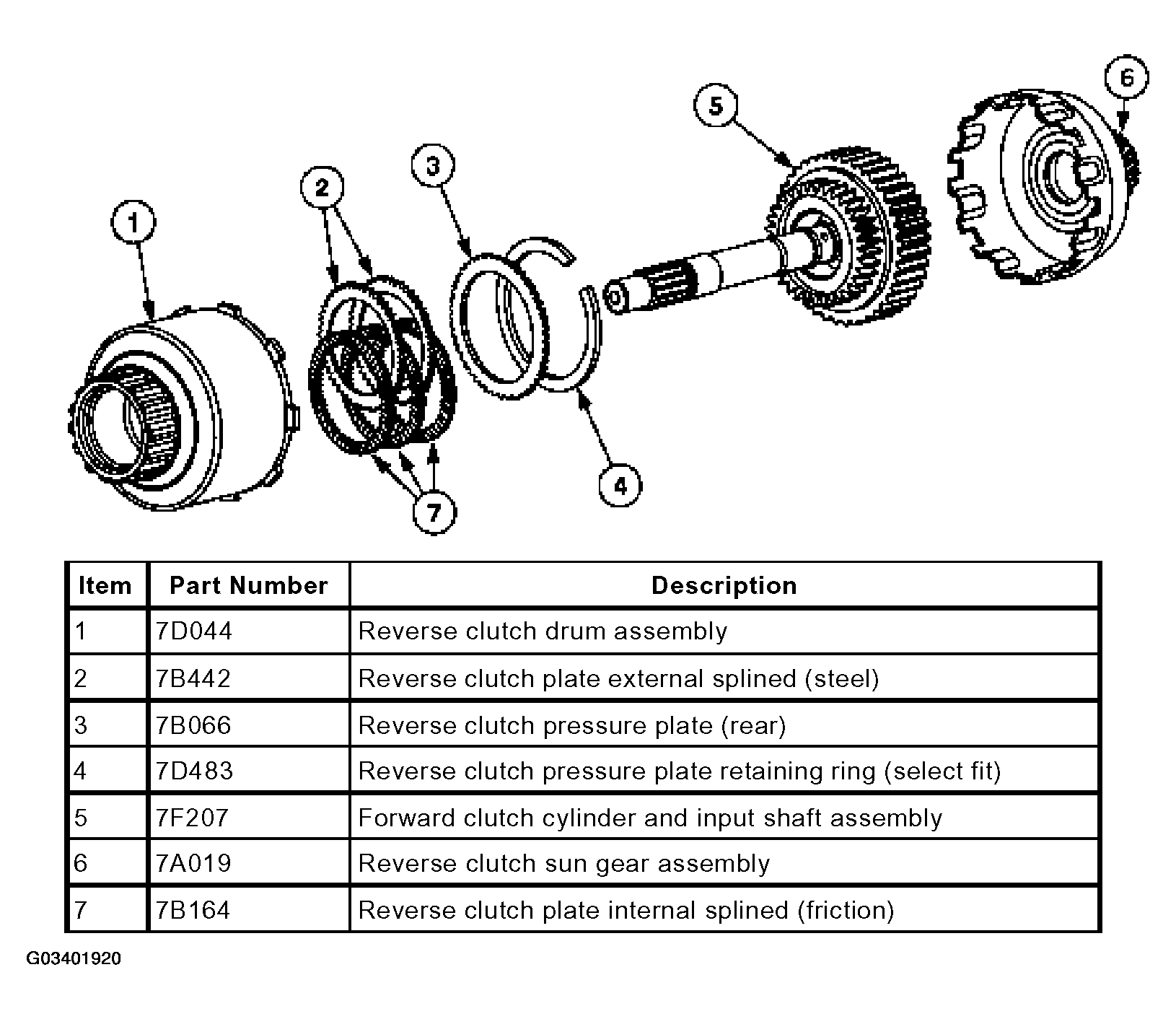

Fig 1: Identifying Clutch Reverse

G03401920

Courtesy of FORD MOTOR CO.

The reverse clutch couples the input shaft to the reverse sun gear, applied in reverse range only.
