Cylinder Block-Distortion

Special Tool(s)

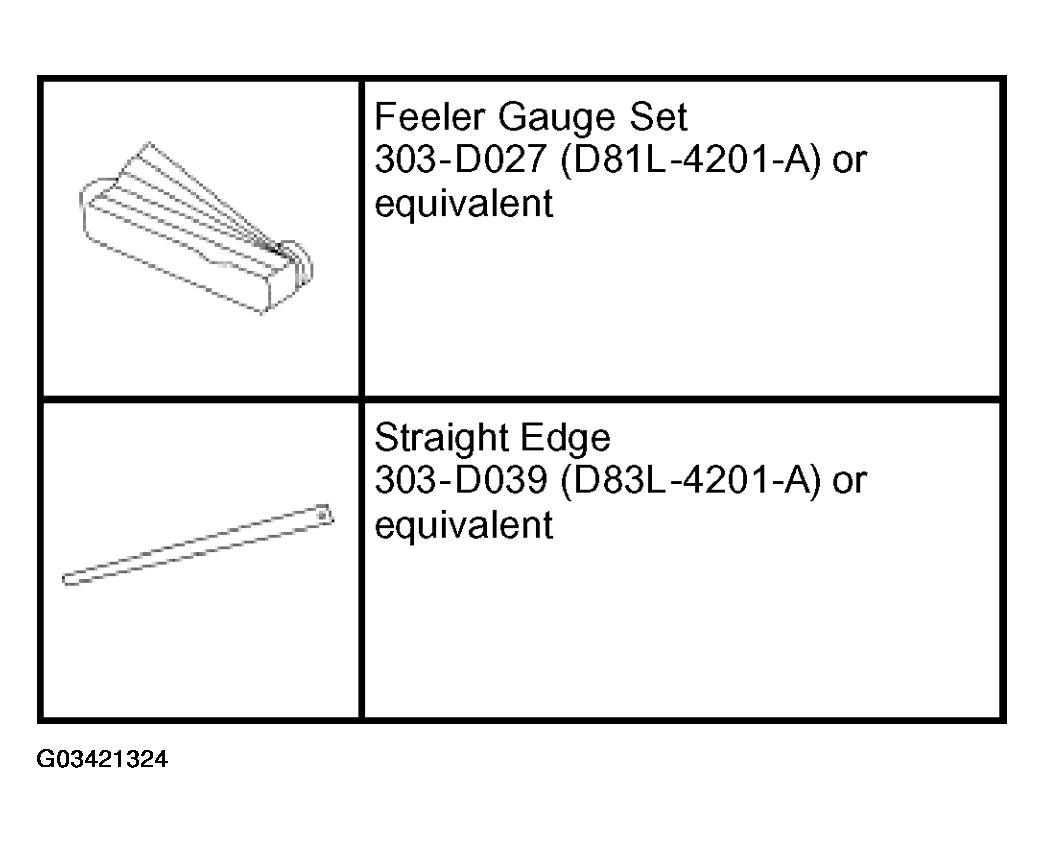

Fig 1: Identifying Special Tool
G03421324Courtesy of FORD MOTOR CO.
  1. Use the special tools to inspect the cylinder block for flatness. If the cylinder block is distorted, install a new cylinder block.

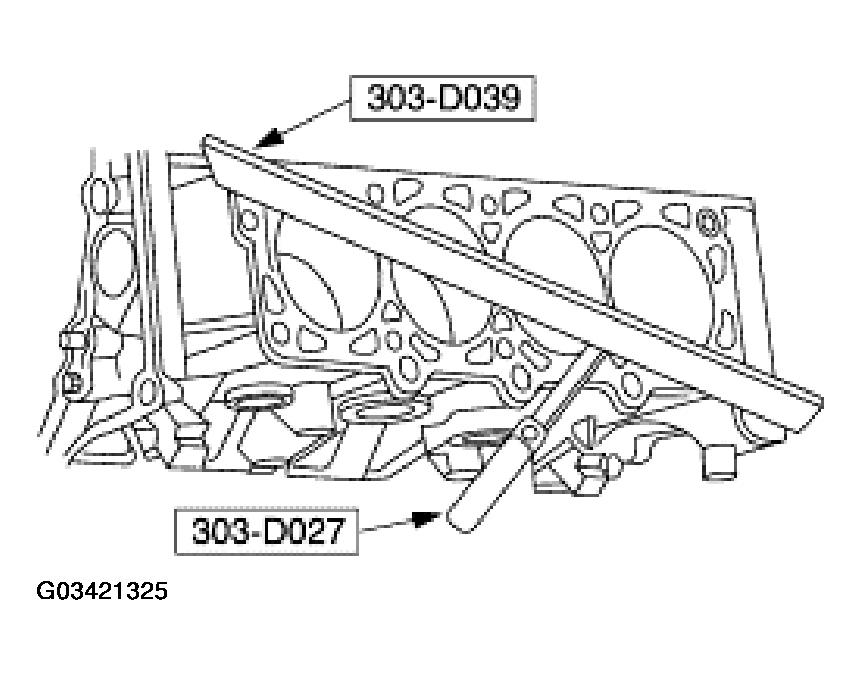

    Fig 2: Inspecting Cylinder Block For Flatness
    G03421325Courtesy of FORD MOTOR CO.
