Valve-Guide Inner Diameter

  1. Measure the inner diameter of the valve guides in two directions where indicated.
    • Refer to GENERAL SPECIFICATIONS . .

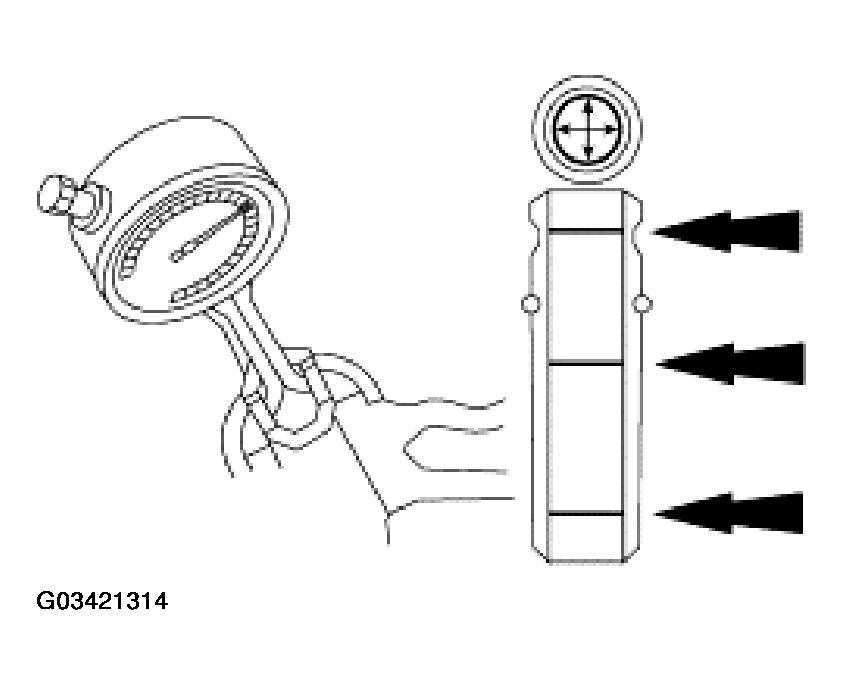

      Fig 1: Measuring Inner Diameter Of Valve Guides
      G03421314Courtesy of FORD MOTOR CO.
