Compass Zone Adjustment

    NOTE: The compass zone setting is preset from the factory to Zone 8.

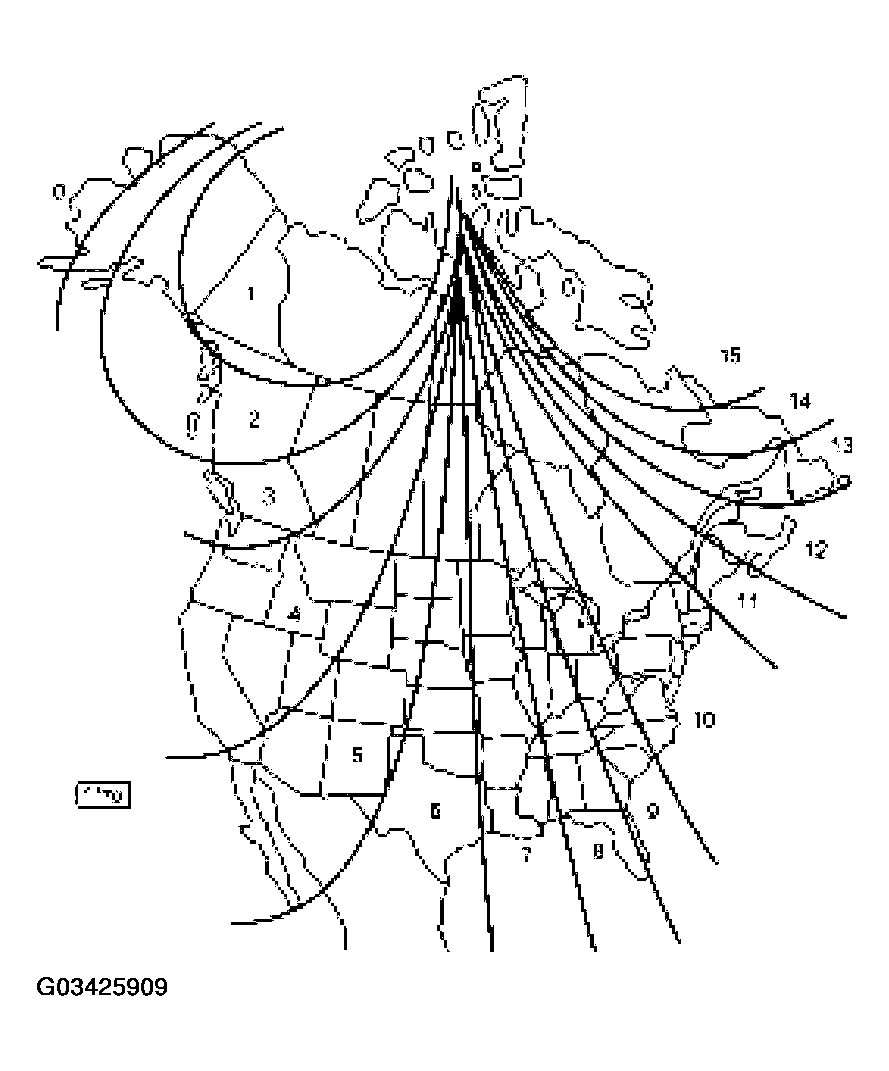

    Fig 1: Identifying Geographic Location Display
    G03425909Courtesy of FORD MOTOR CO.
  1. Determine which magnetic zone you are in for your geographic location.
  2. Turn the ignition key to the ON position.
  3. Press the message center switch INFO button until the compass and temperature information is displayed.
  4. Press and hold the RESET button until the message center display shows the correct zone setting. Release the RESET button and press down again.
  5. Press the SETUP button repeatedly until the correct zone setting for your geographic location is displayed.
  6. Press the RESET button to exit the zone setting mode and lock in your individual zone.
