Disassembled Views

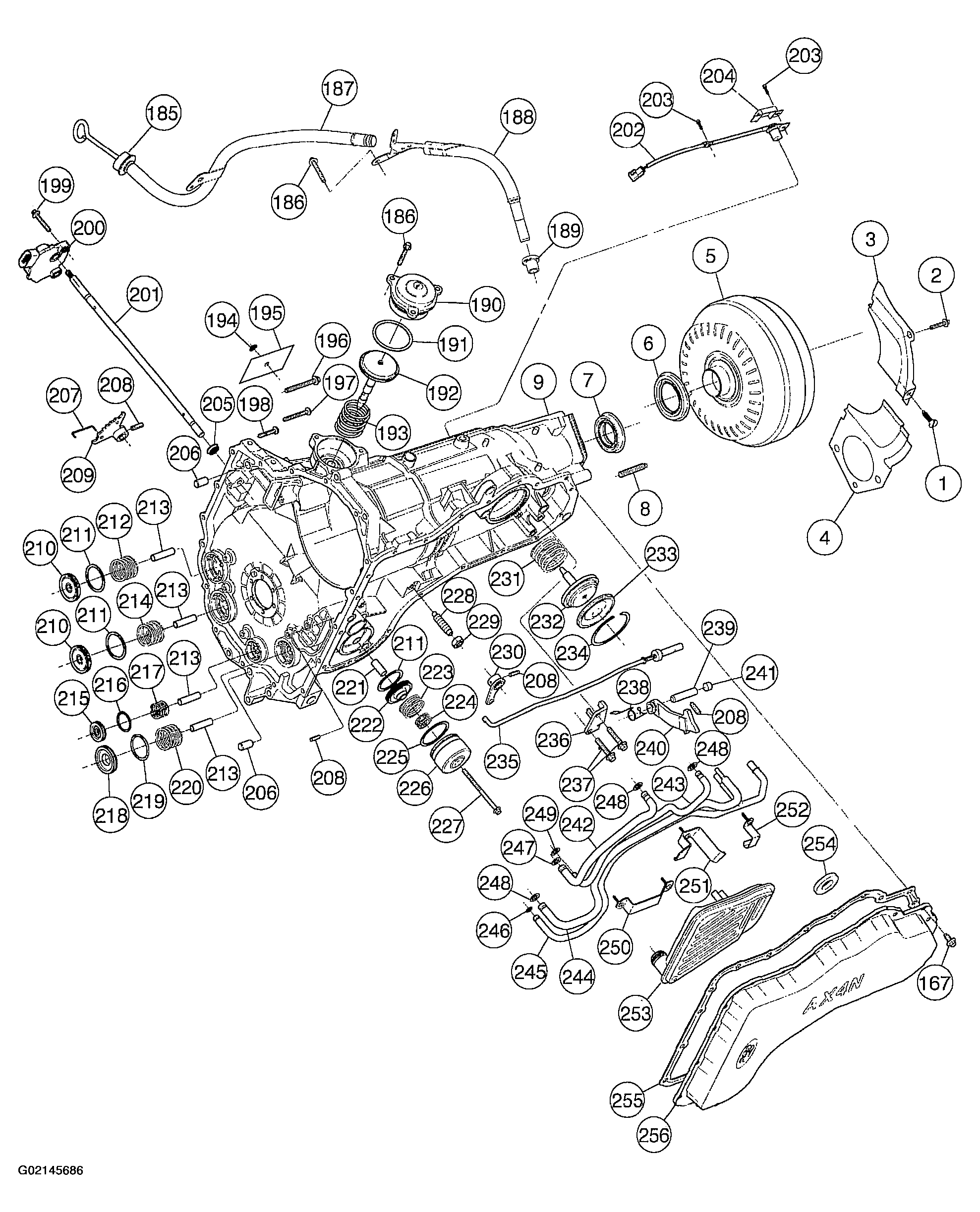

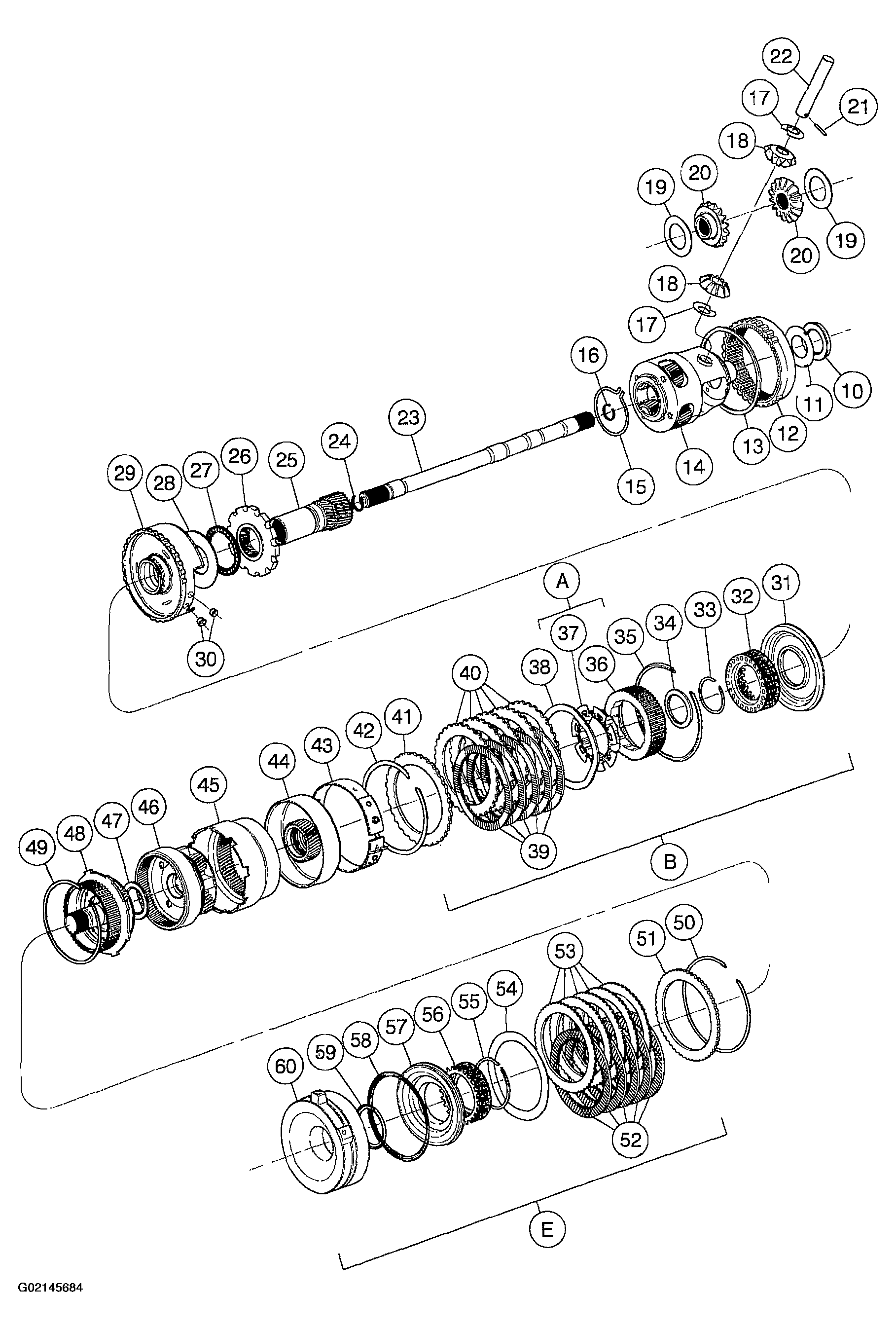

Fig 1: Exploded View Of Transaxle Components (1 Of 4)

Courtesy of FORD MOTOR CO.

Fig 2: Exploded View Of Transaxle Components (2 Of 4)

Courtesy of FORD MOTOR CO.

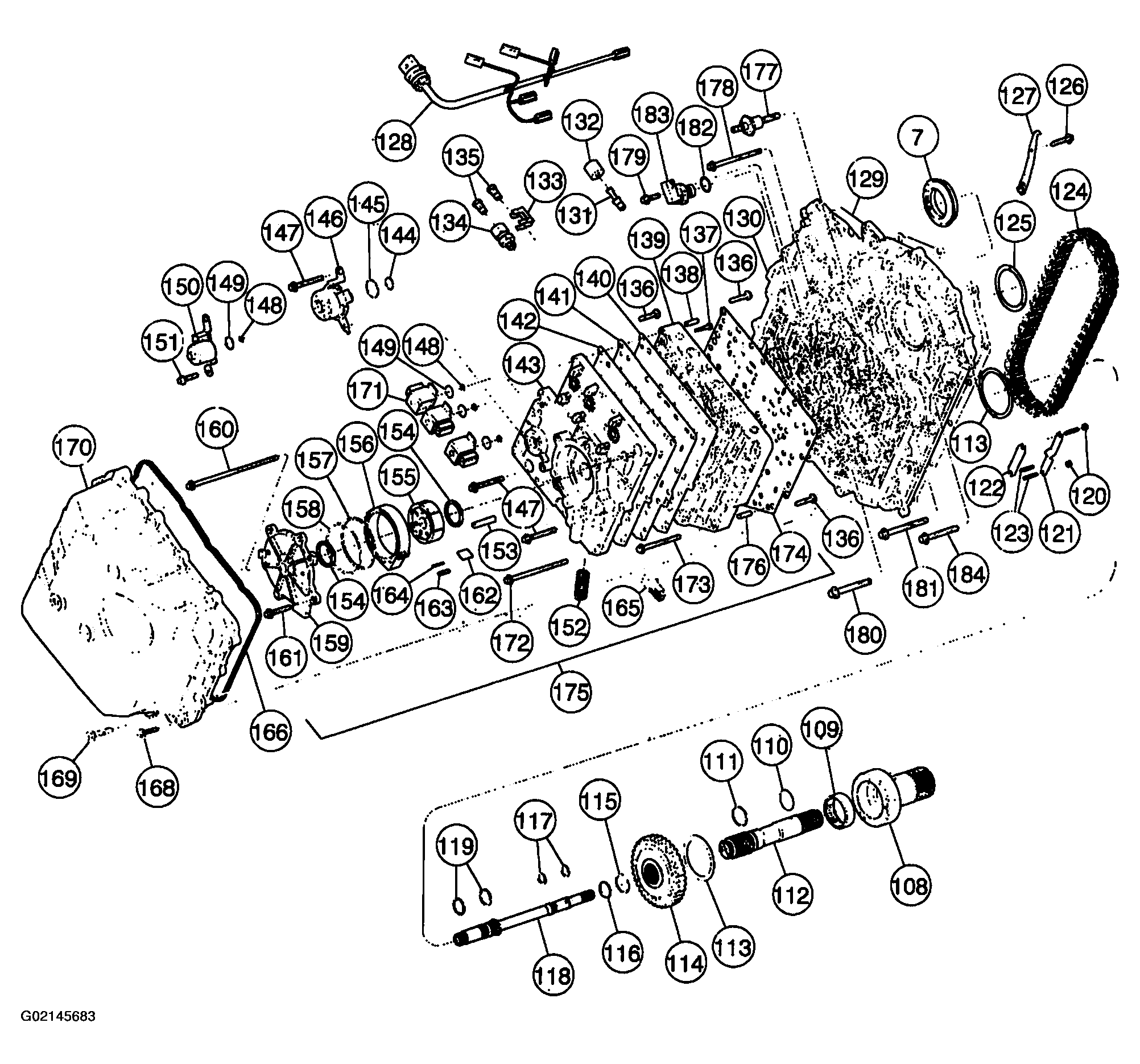

Fig 3: Exploded View Of Transaxle Components (3 Of 4)

Courtesy of FORD MOTOR CO.

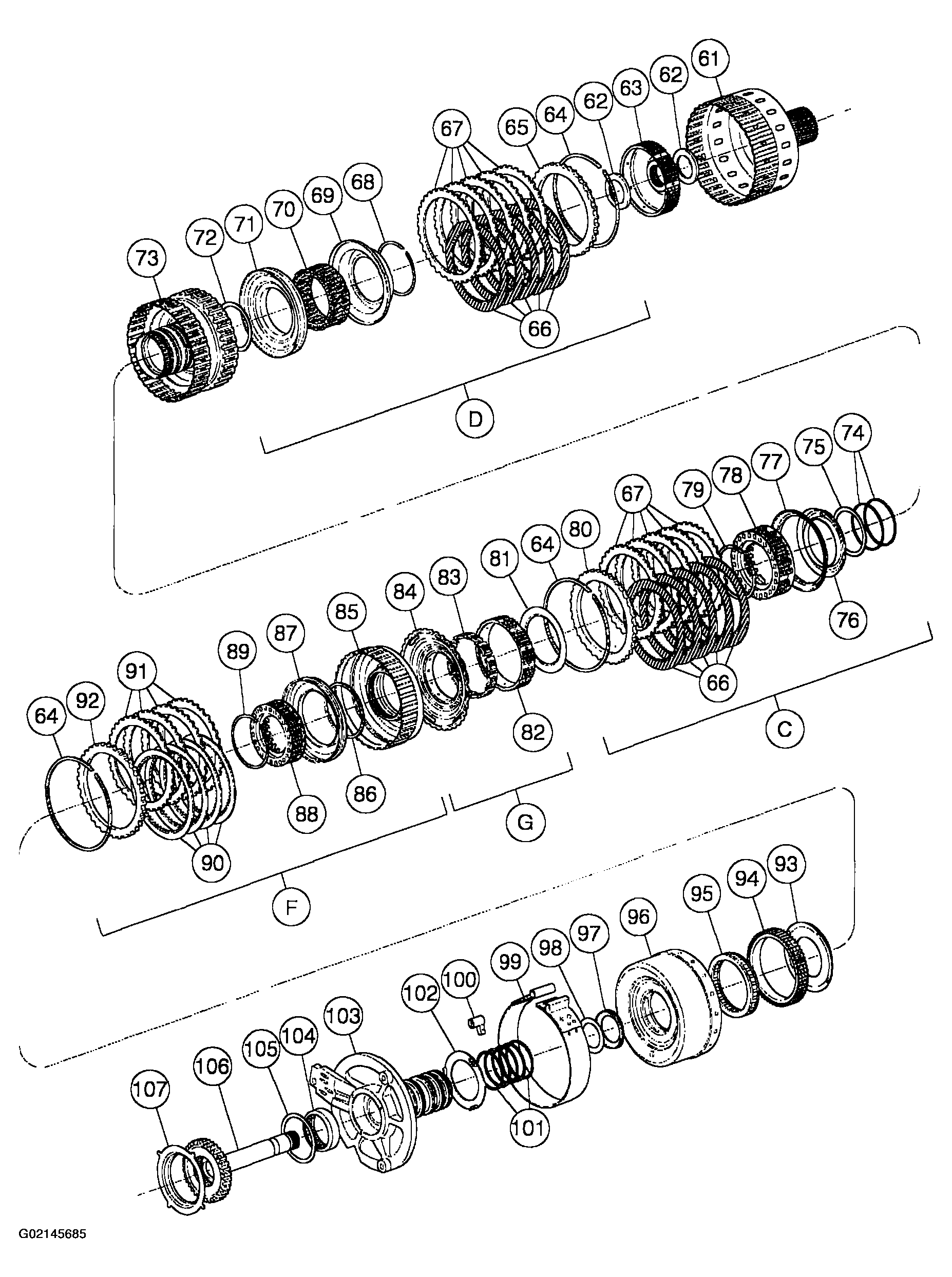

Fig 4: Exploded View Of Transaxle Components (4 Of 4)

Courtesy of FORD MOTOR CO.

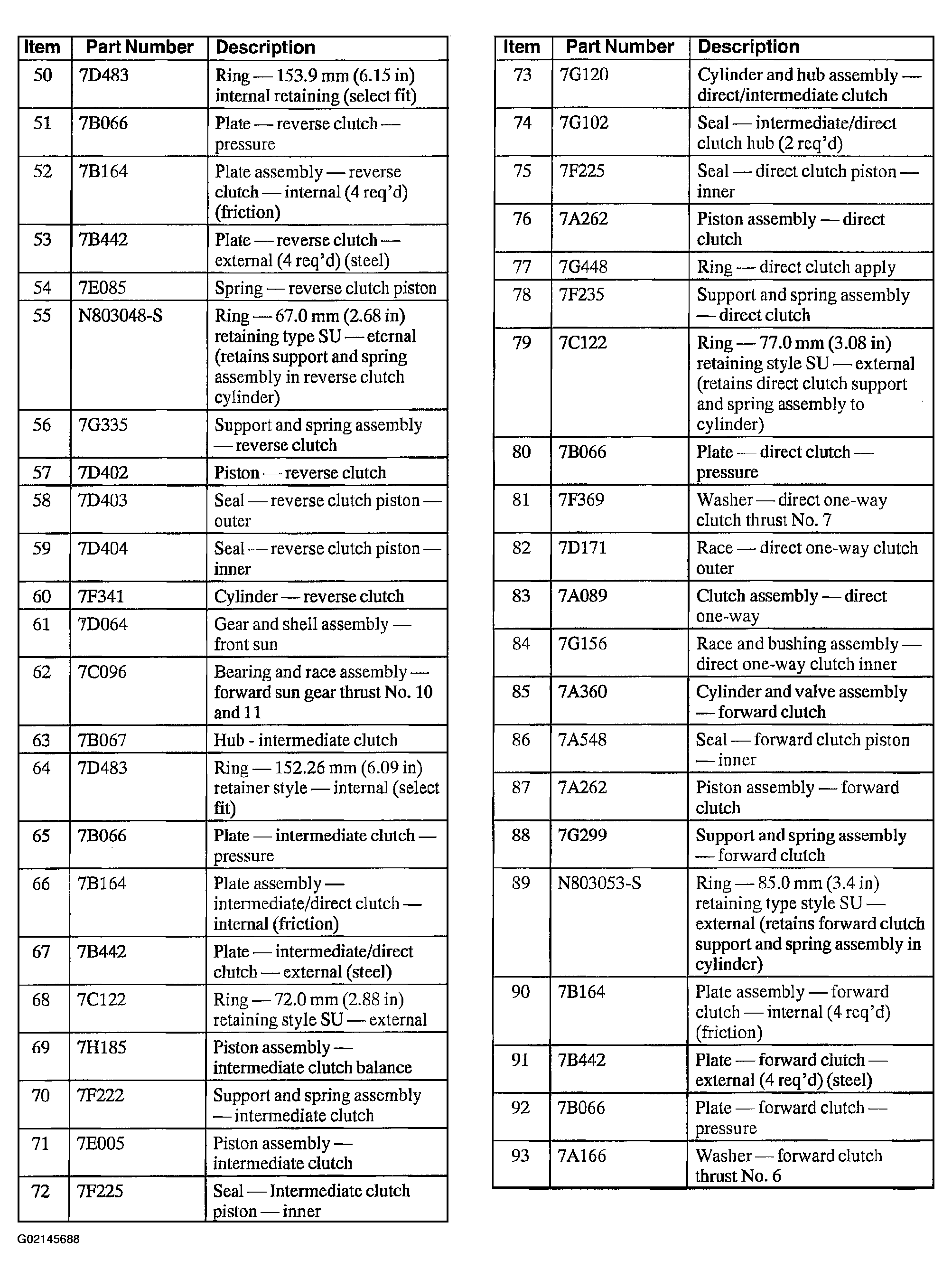

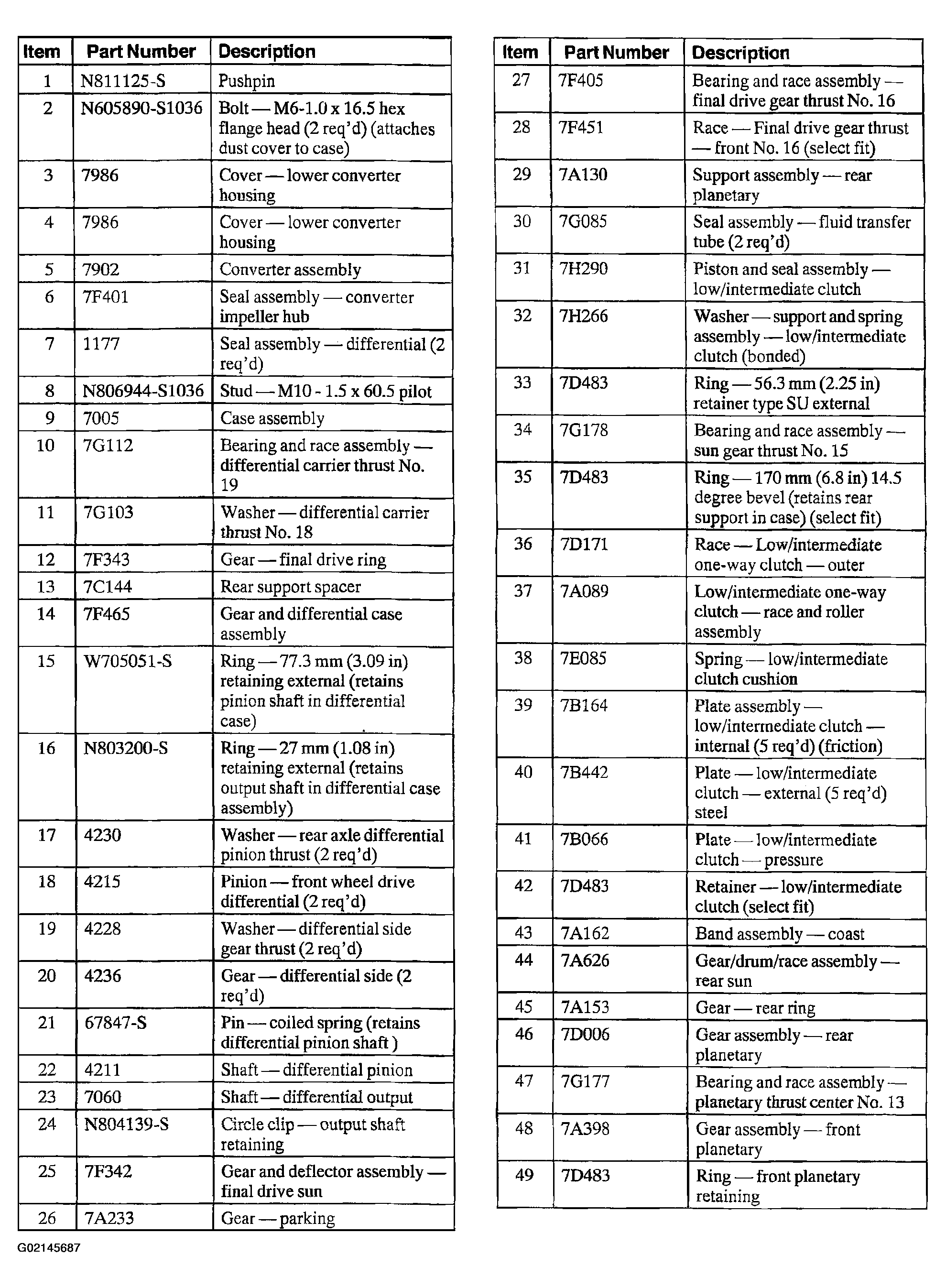

Fig 5: Transaxle Components Description Chart (Items 1-49)

Courtesy of FORD MOTOR CO.

Fig 6: Transaxle Components Description Chart (Items 50-93)

Courtesy of FORD MOTOR CO.

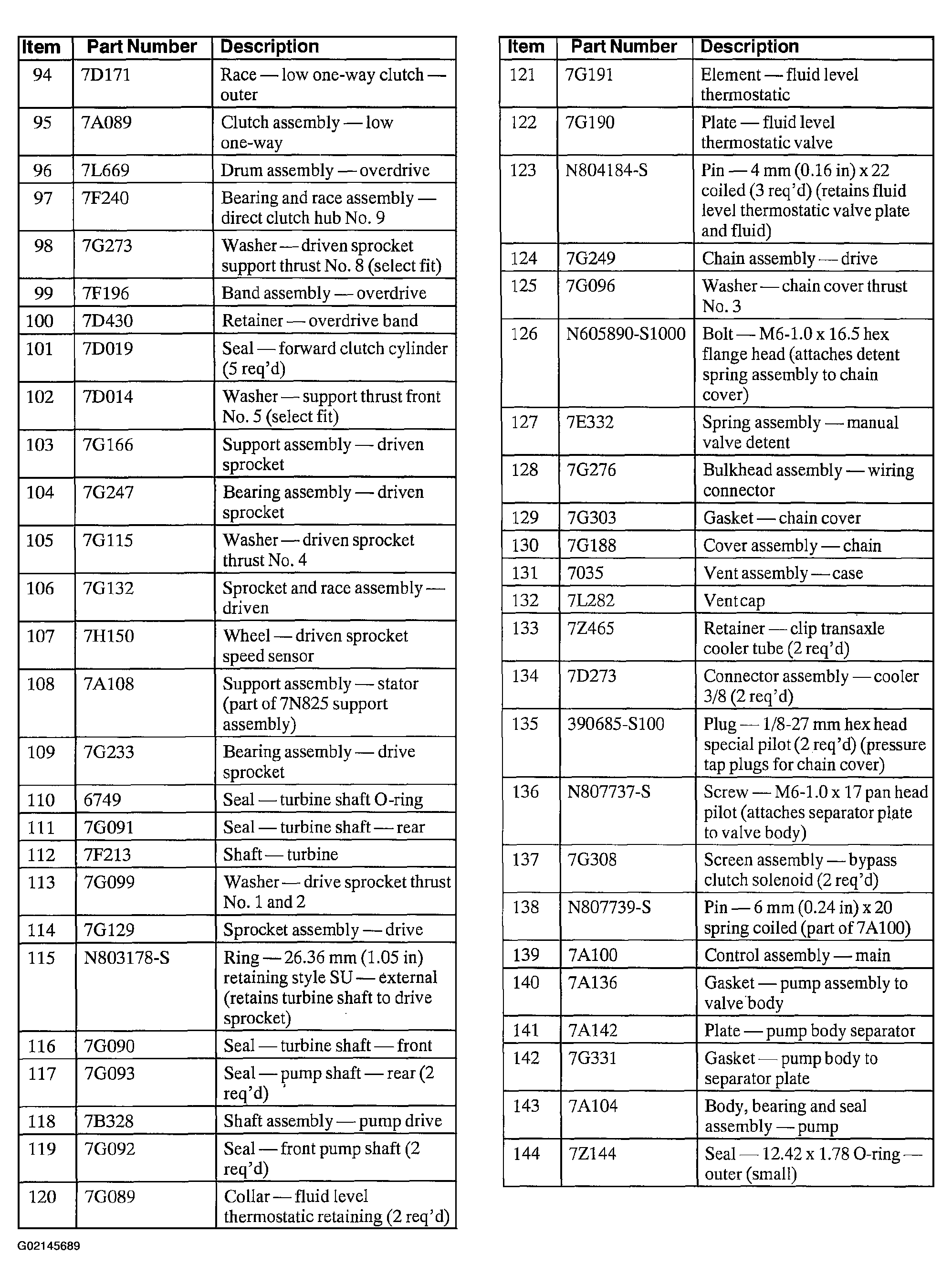

Fig 7: Transaxle Components Description Chart (Items 94-144)

Courtesy of FORD MOTOR CO.

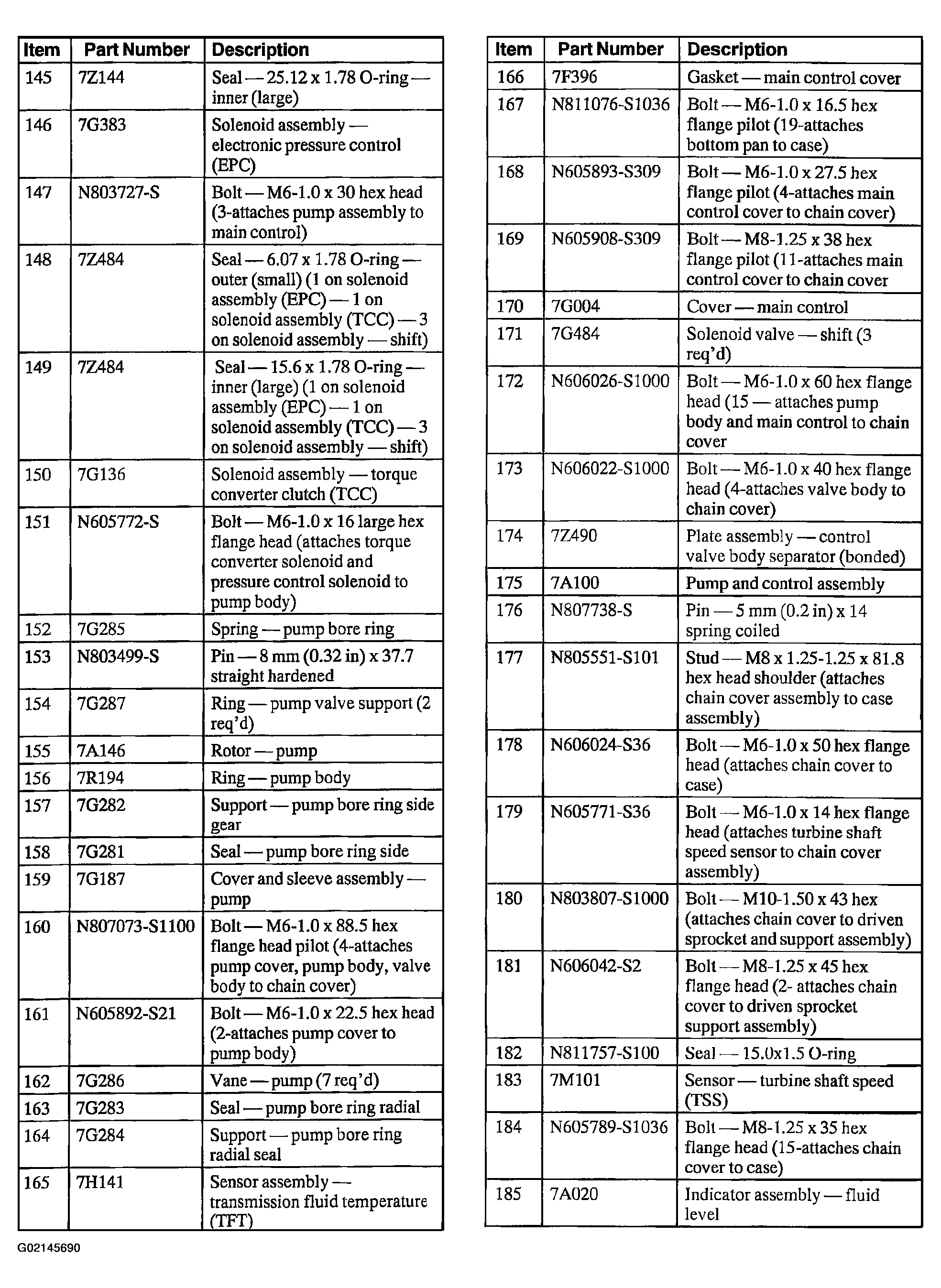

Fig 8: Transaxle Components Description Chart (Items 145-185)

Courtesy of FORD MOTOR CO.

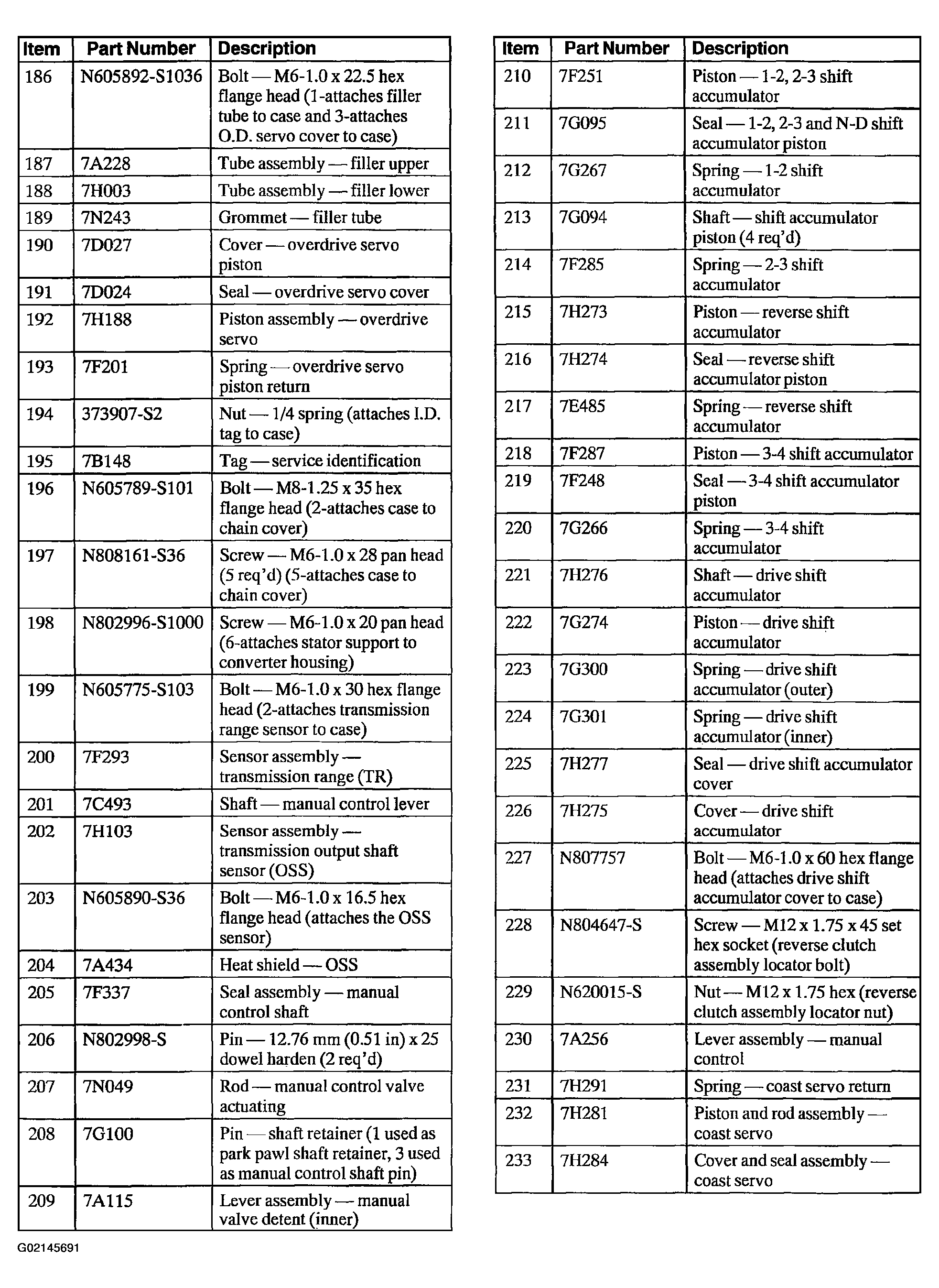

Fig 9: Transaxle Components Description Chart (Items 186-233)

Courtesy of FORD MOTOR CO.

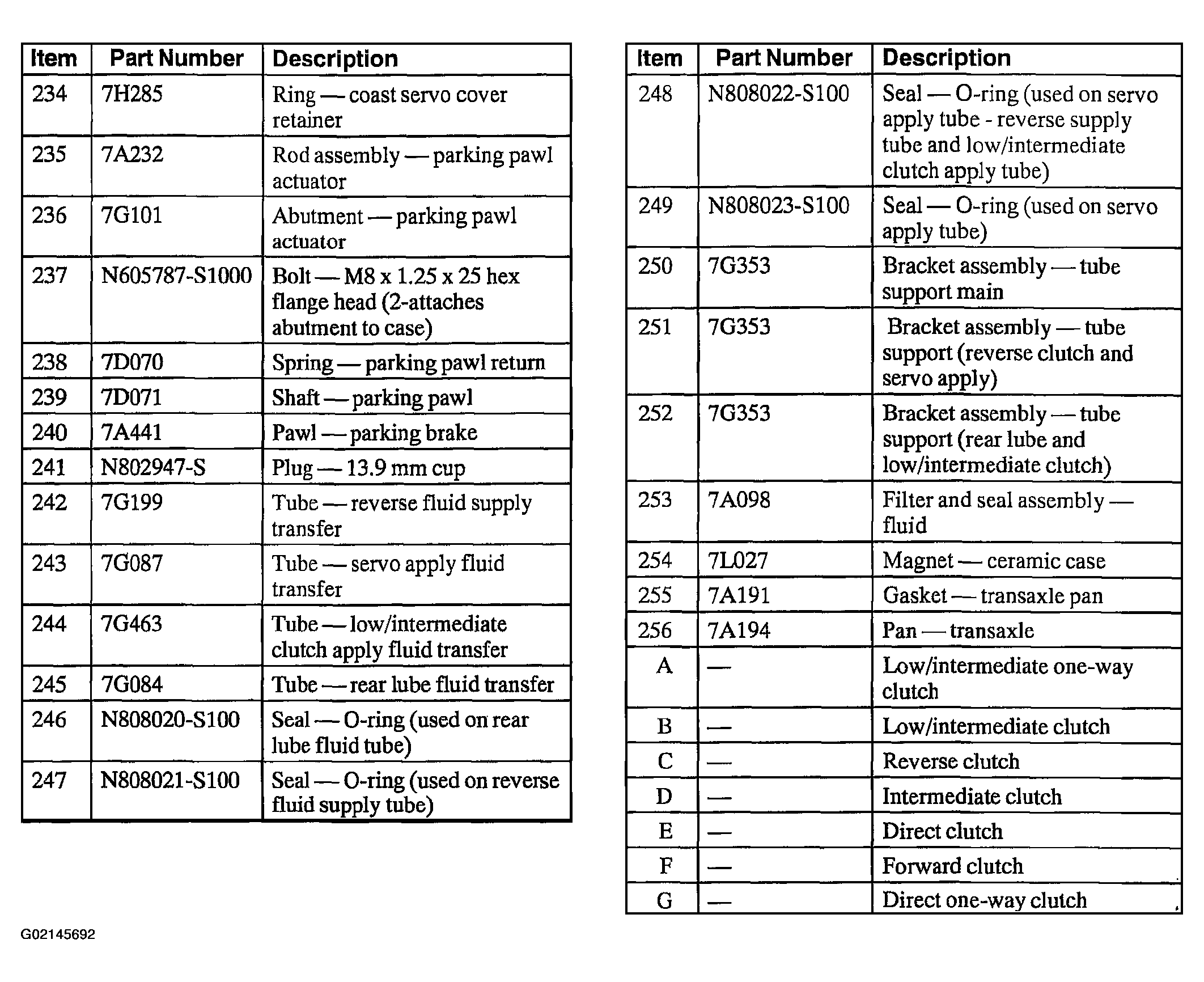

Fig 10: Transaxle Components Description Chart (Items 234-256; A-G)

Courtesy of FORD MOTOR CO.
