Hydraulic Control Unit: Installation
To install, reverse the removal procedure.
Bleed the brake system. Refer to
BLEEDING BRAKE SYSTEM
.

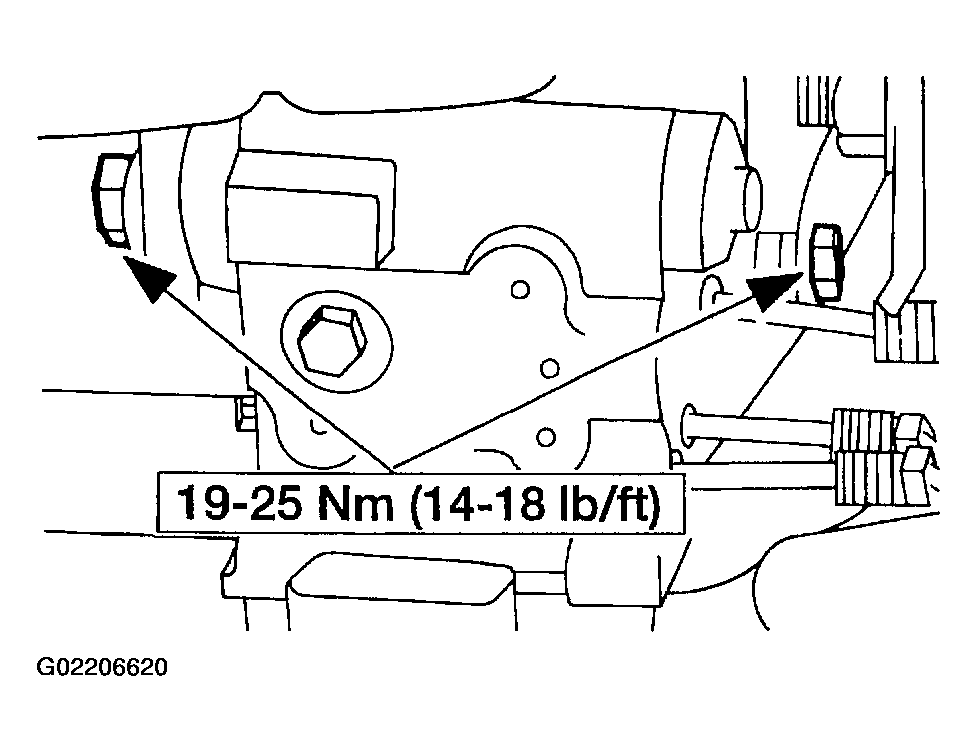

Fig 1: Installing HCU
Courtesy of FORD MOTOR CO.

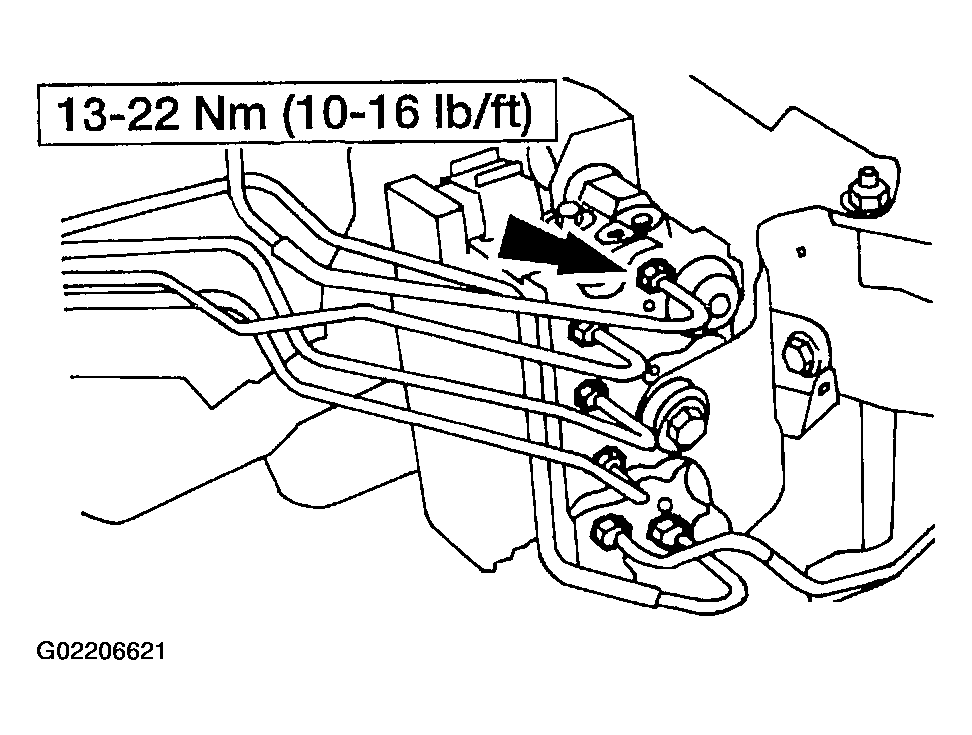

Fig 2: Connecting Hydraulic Brake Lines
Courtesy of FORD MOTOR CO.
