Engine Lubrication Components - Exploded View

WARNING: This page is about a different car, the 2006 Mercury Montego, 2006 Ford Freestyle, and 2006 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

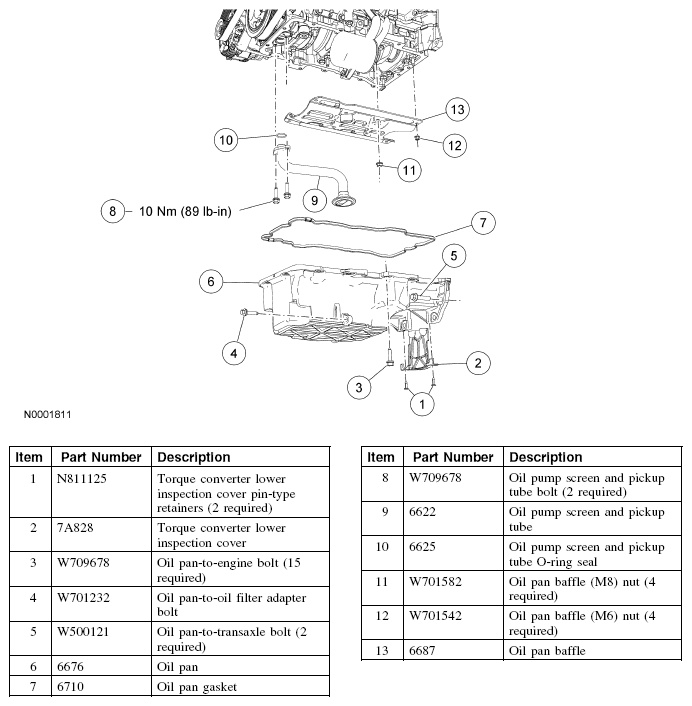

Fig 1: Oil Pan, Oil Pump Screen, Pickup Tube & Oil Pan Baffle Replacement Components With Torque Specifications
G04655712Courtesy of FORD MOTOR CO.

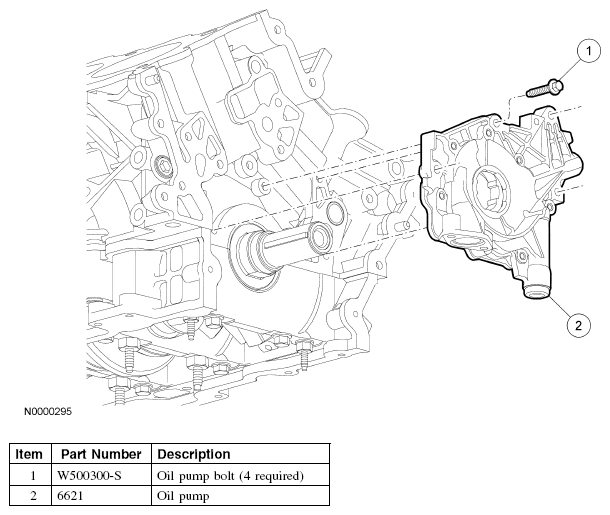

Fig 2: Identifying Oil Pump Components
G04655713Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the appropriate procedure.
