Engine Mount - Anti-Roll: Notes

WARNING: This page is about a different car, the 2006 Mercury Montego, 2006 Ford Freestyle, and 2006 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL

Item Specification
Threadlock and Sealer TA-25 WSK-M2G351-A5
NOTE: 6 speed transaxle shown, CVT similar.

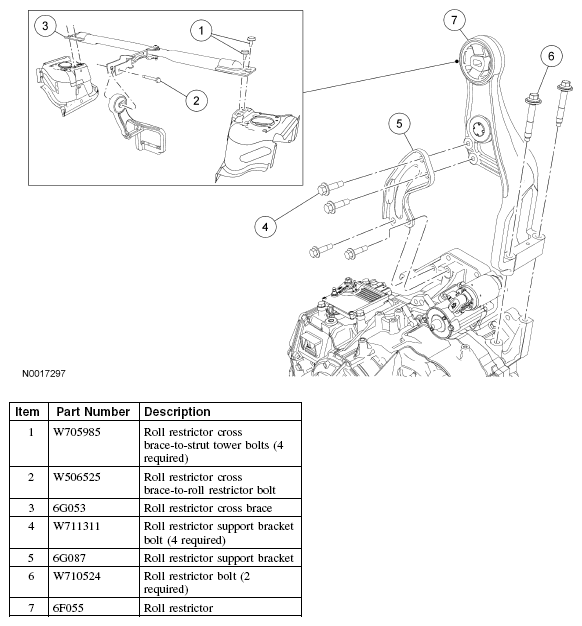

Fig 1: Identifying Engine Mount Components - Anti-Roll
G04655738Courtesy of FORD MOTOR CO.
