Micro ISO: Notes

WARNING: This page is about a different car, the 2003 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

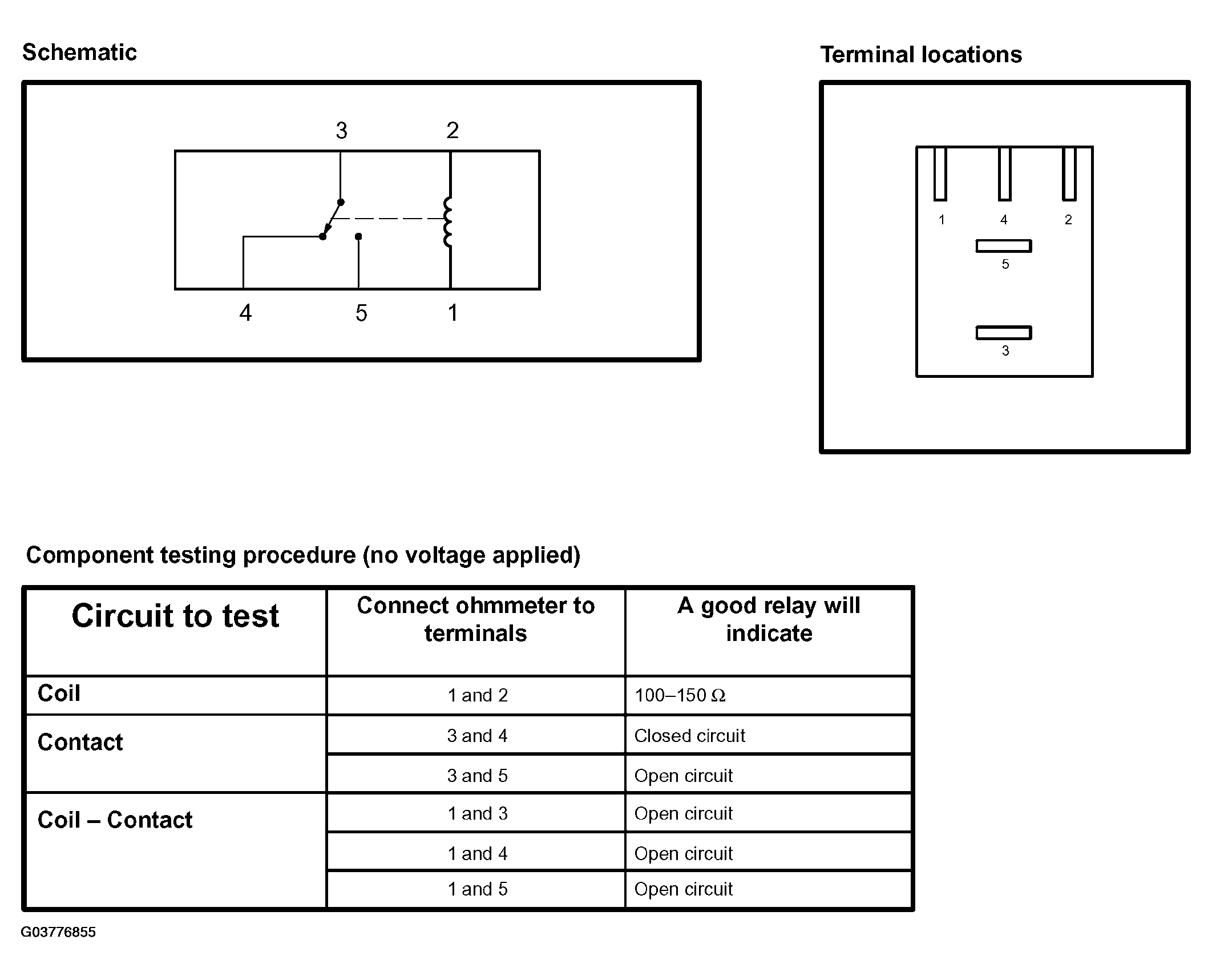

Fig 1: Testing Micro ISO
G03776855Courtesy of FORD MOTOR CO.
