Power seat switch

WARNING: This page is about a different car, the 2003 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

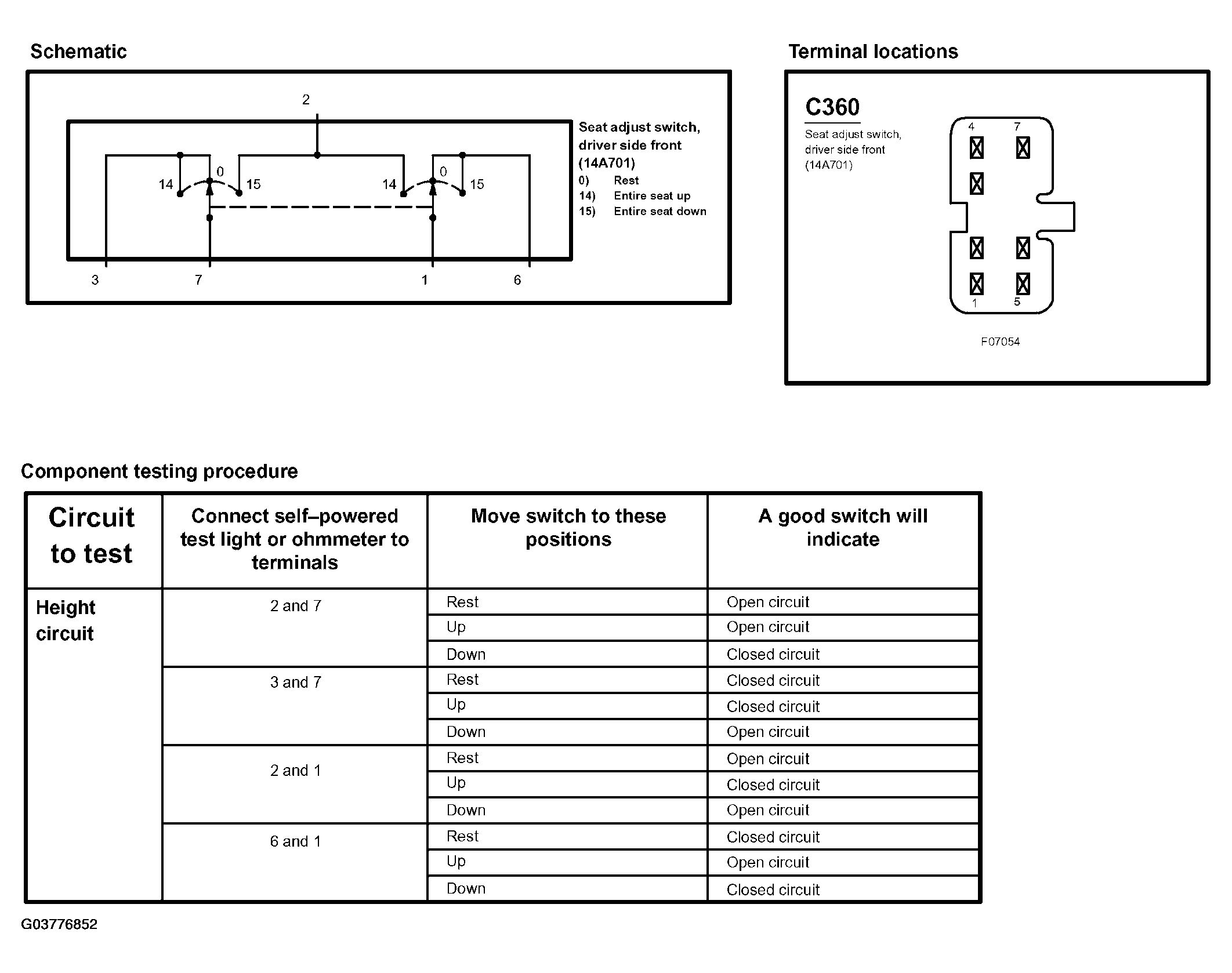

Fig 1: Testing Power Seat Switch
G03776852Courtesy of FORD MOTOR CO.
