2-4 Band: Notes

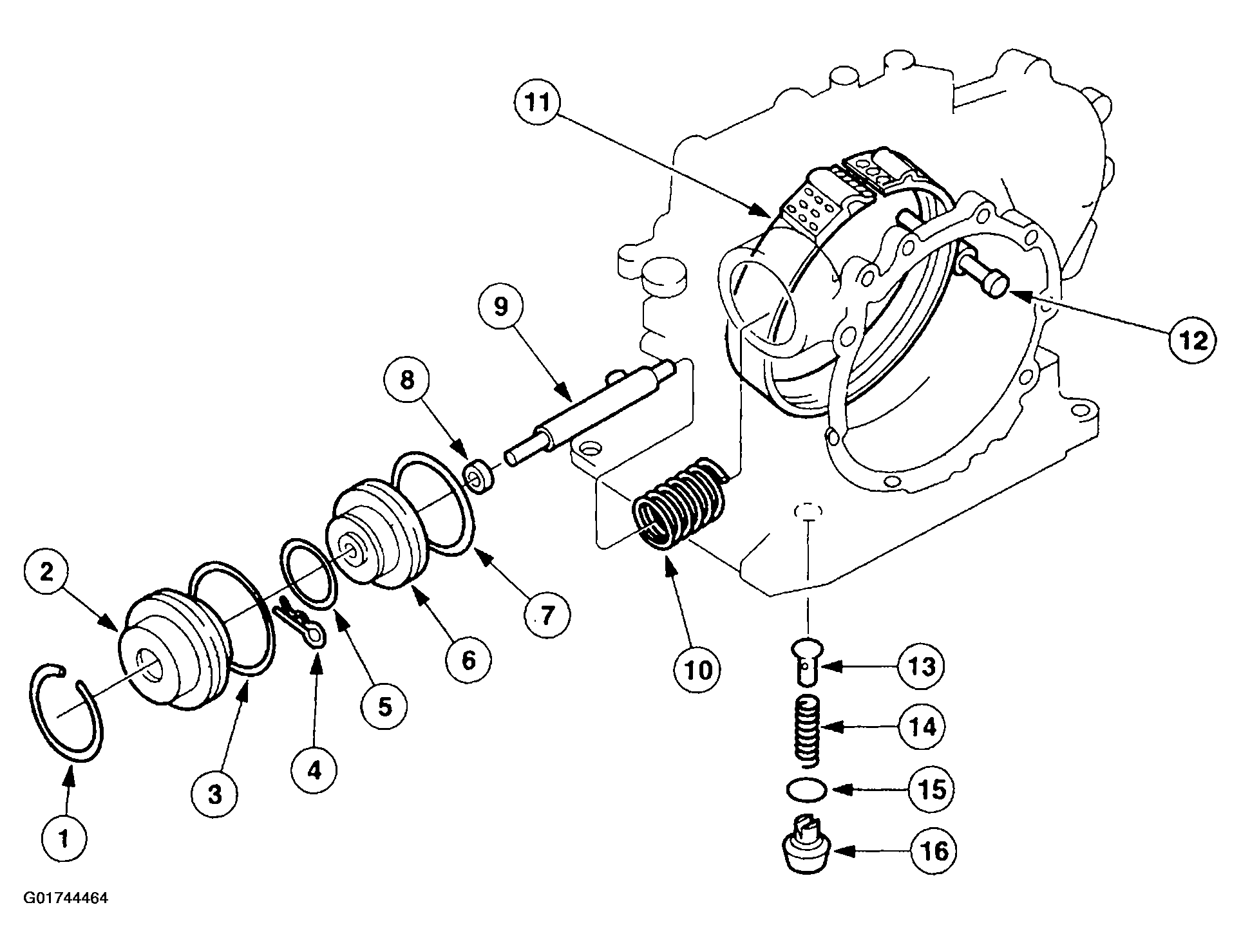

Fig 1: Identifying 2-4 Band Components
G01744464Courtesy of FORD MOTOR CO.

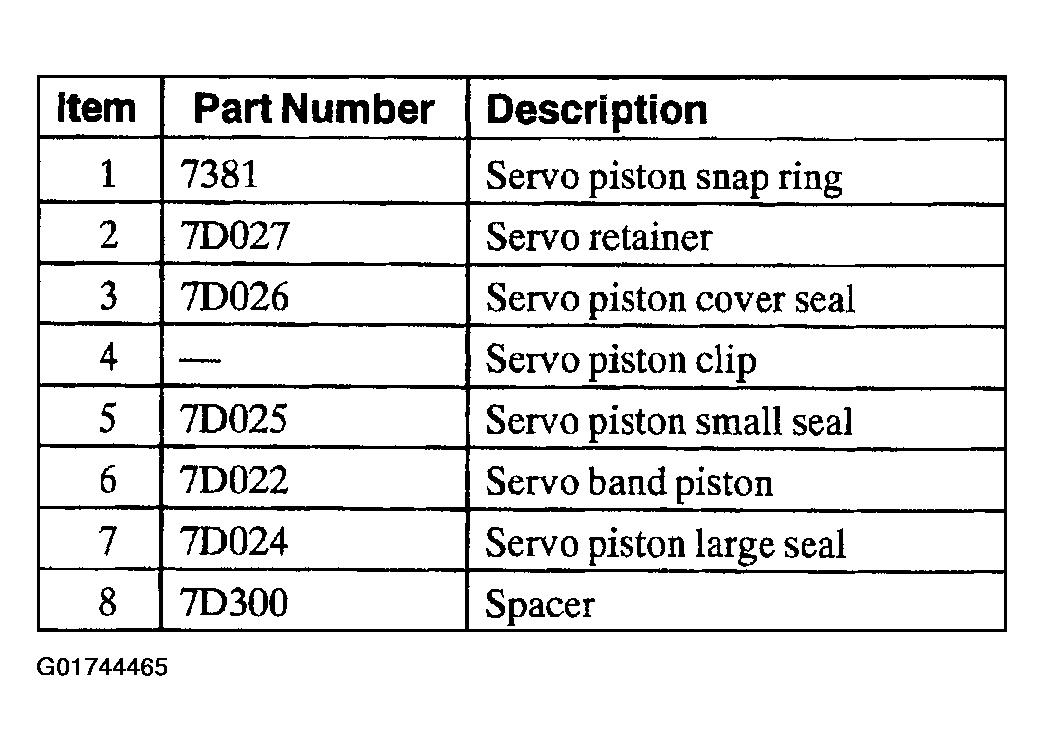

Fig 2: 2-4 Band Components Legend (Items 1-8)
G01744465Courtesy of FORD MOTOR CO.

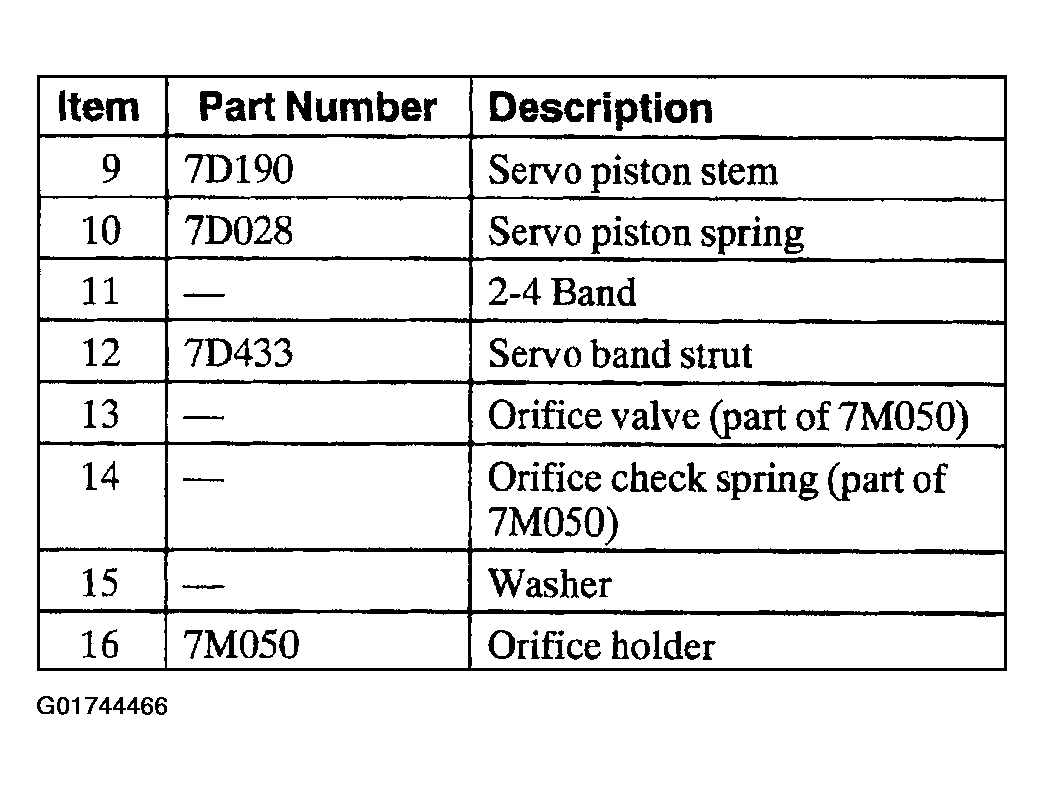

Fig 3: 2-4 Band Components Legend (Items 9-16)
G01744466Courtesy of FORD MOTOR CO.
