Fluid Pump Assembly: Notes

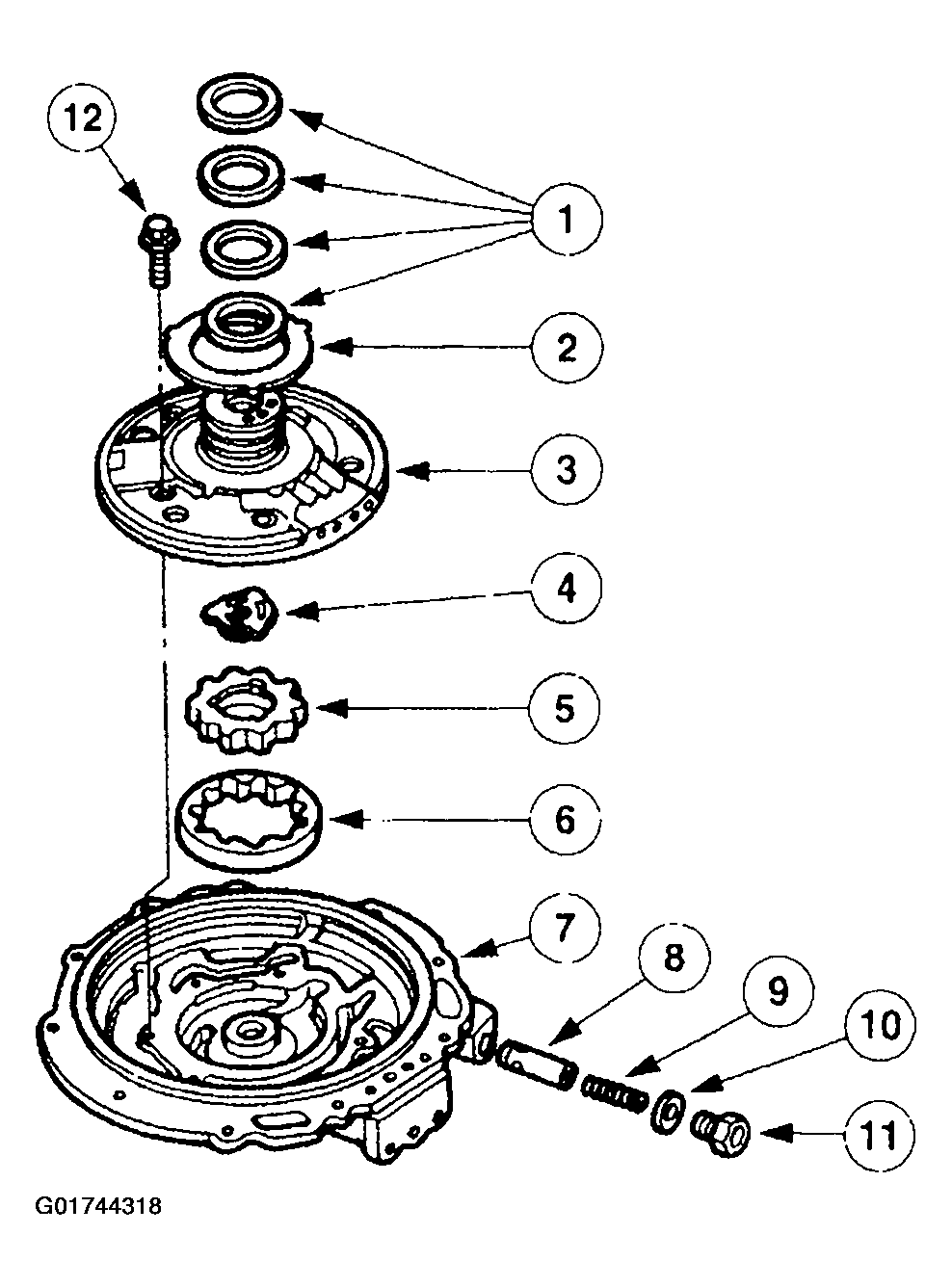

Fig 1: Identifying Fluid Pump Assembly Components
G01744318Courtesy of FORD MOTOR CO.

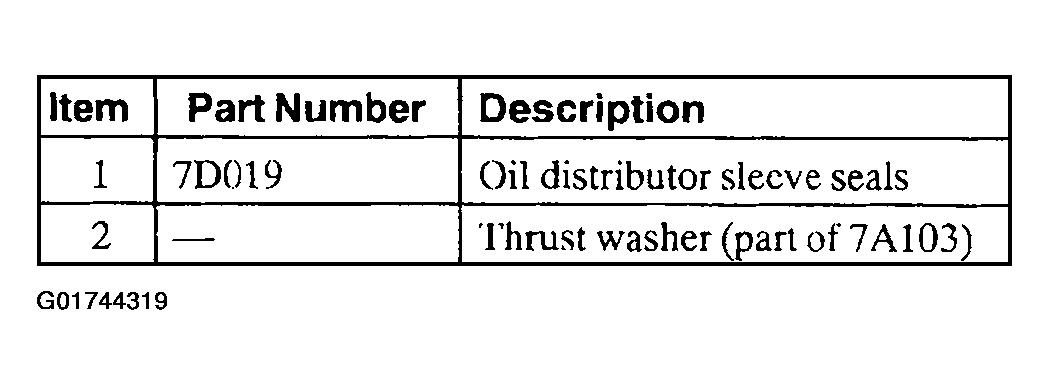

Fig 2: Fluid Pump Assembly Components Legend (Items 1 & 2)
G01744319Courtesy of FORD MOTOR CO.

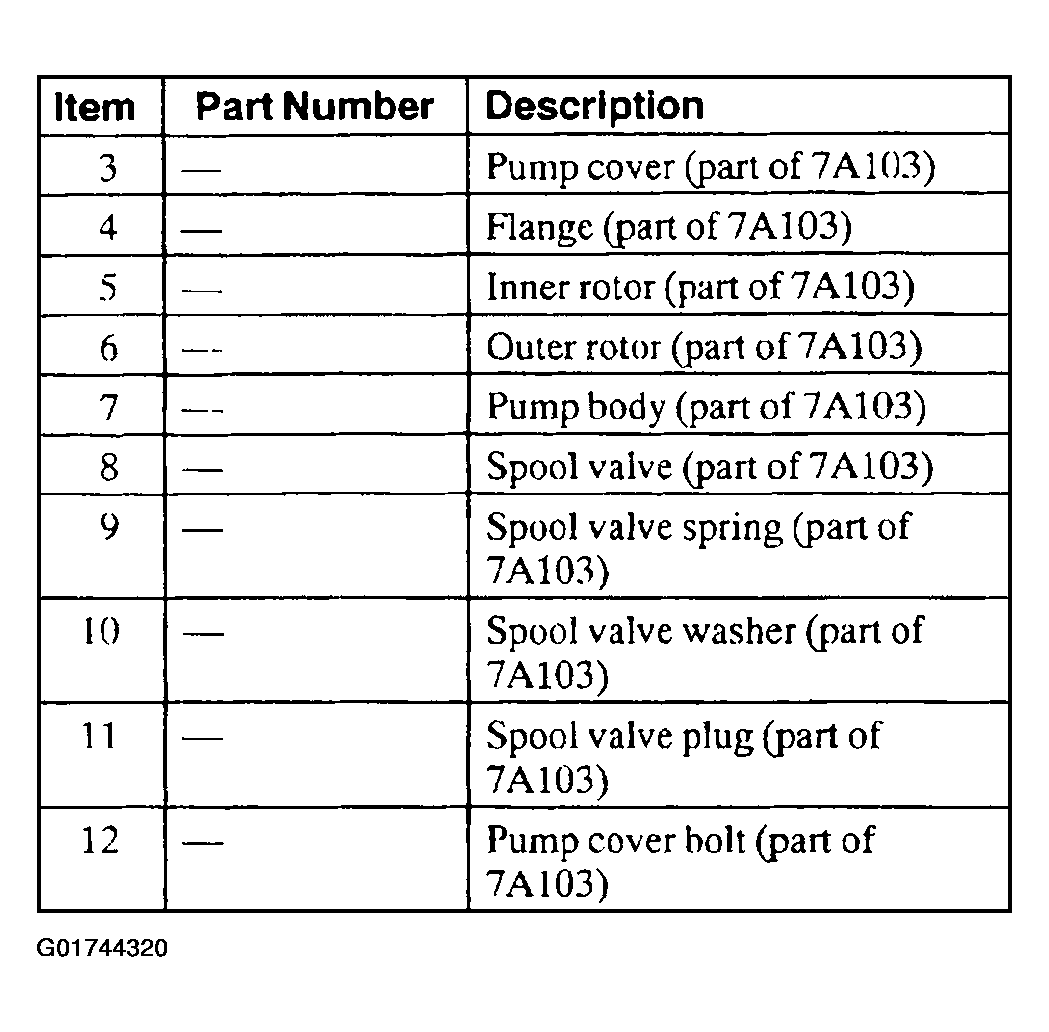

Fig 3: Fluid Pump Assembly Components Legend (Items 3-12)
G01744320Courtesy of FORD MOTOR CO.
