Power Steering: Notes

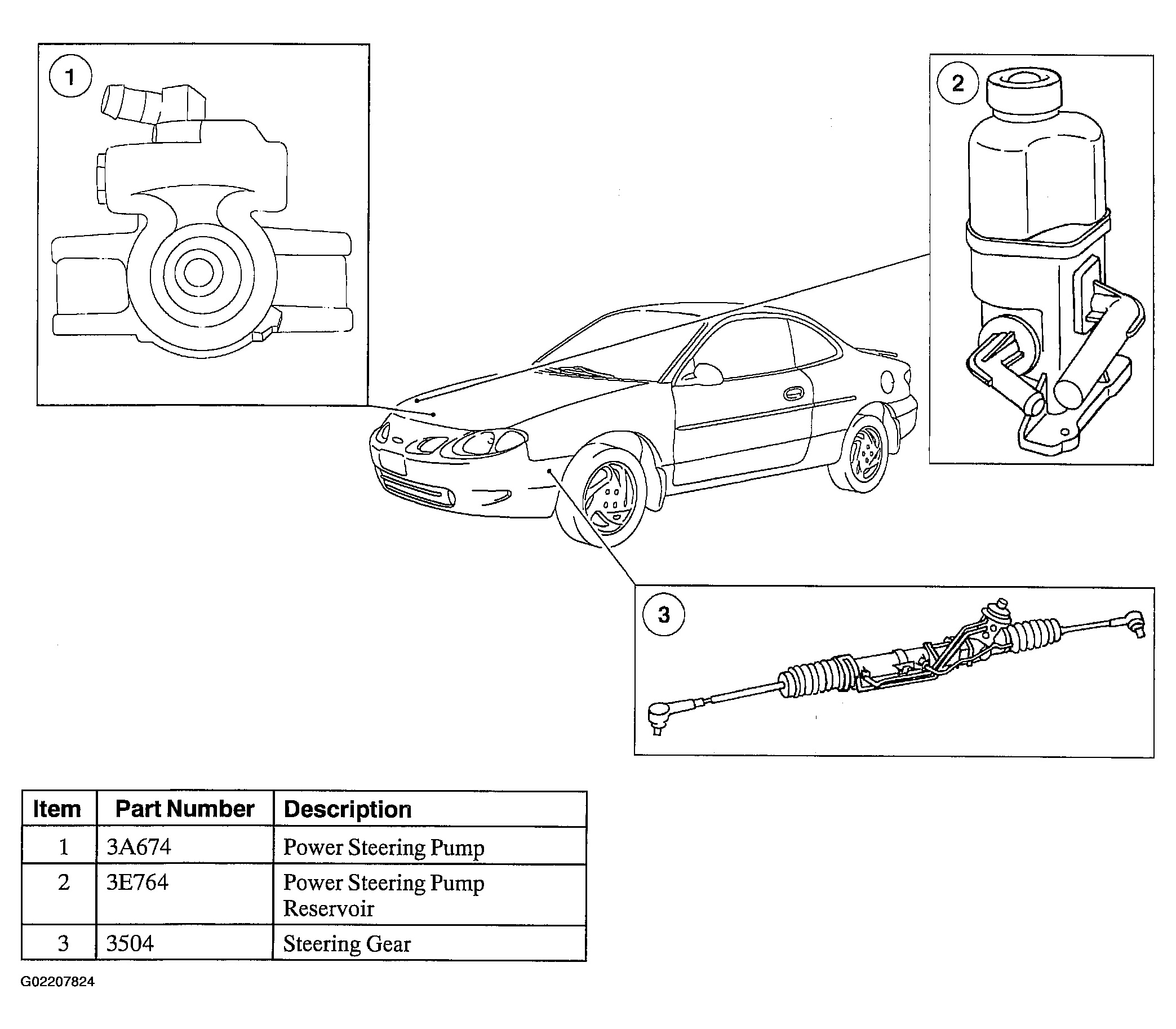

Fig 1: Identifying Power Steering System Components Location - Coupe Zetec

Courtesy of FORD MOTOR CO.

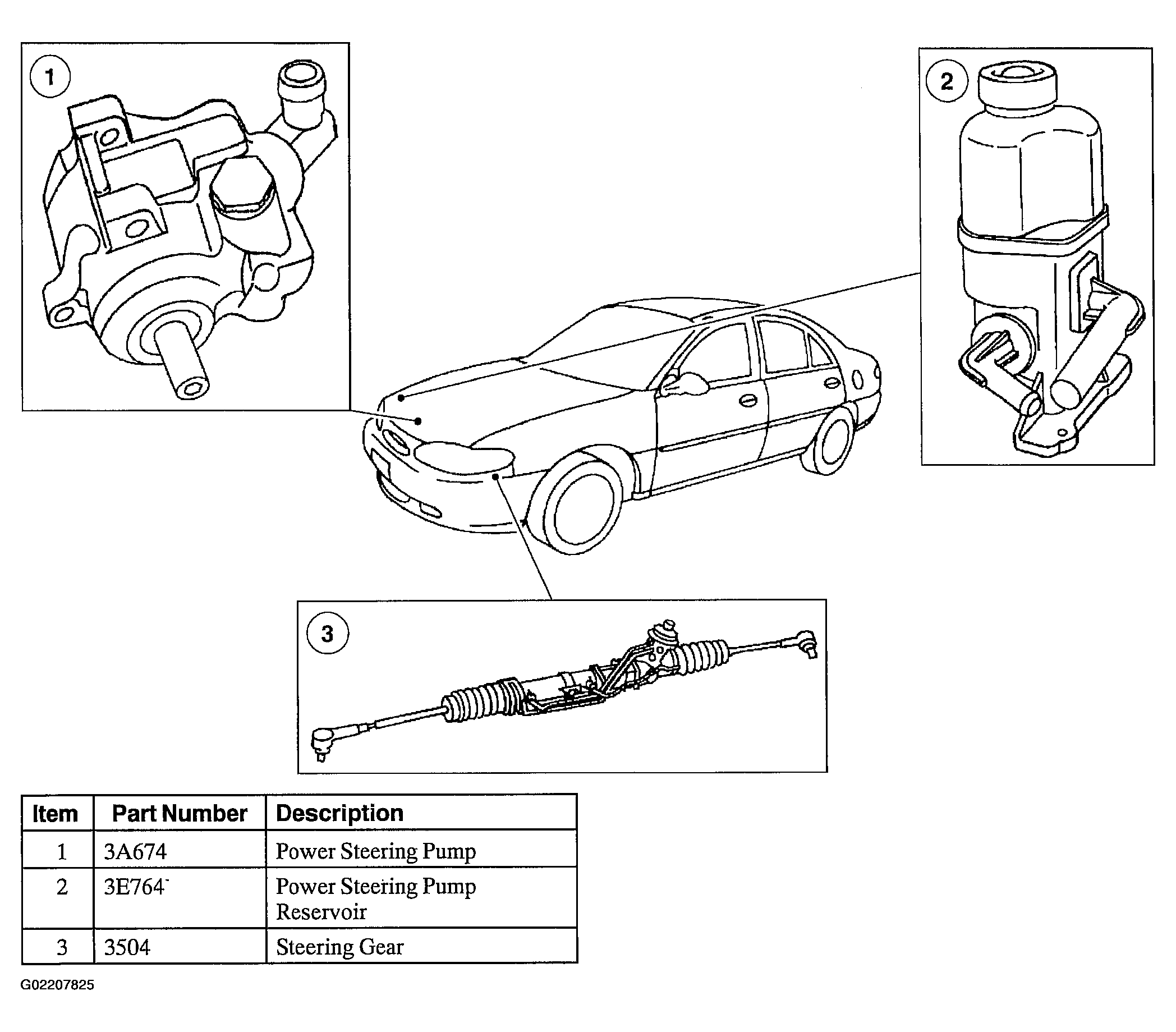

Fig 2: Identifying Power Steering System Components Location - Sedan 2.0L

Courtesy of FORD MOTOR CO.

The power steering system uses hydraulic pressure generated by the power steering pump (3A674) to reduce the force required to turn the steering wheel (3600). The power steering pump cannot be disassembled. It must be replaced as a unit.
