Home >> Ford >> 2002 >> ZX2 Standard >> Repair and Diagnosis >> Transmission >> Manual Trans >> Manual Transmission >> Disassembly And Assembly Of Subassemblies >> Input Shaft >> Notes

Input Shaft: Notes

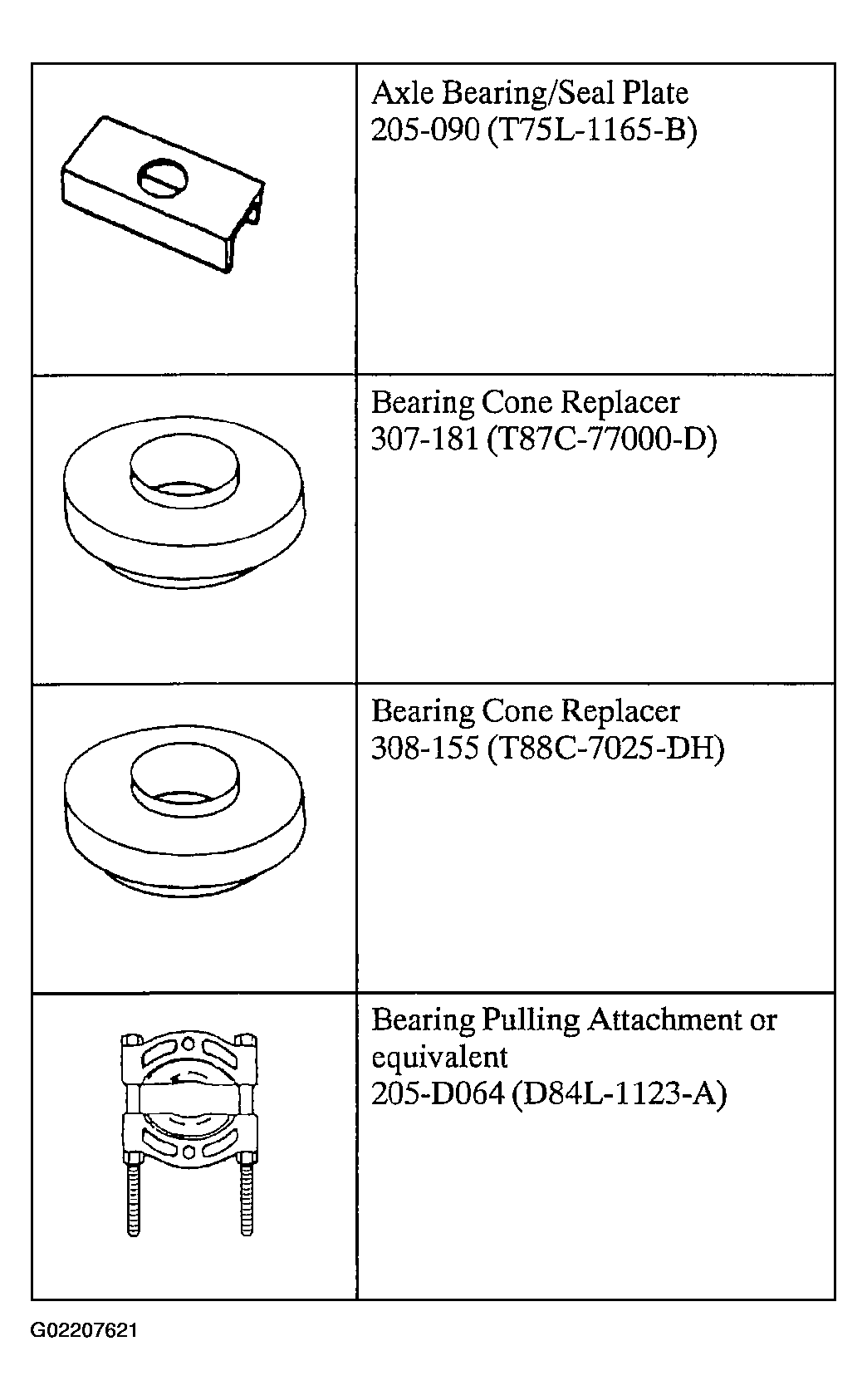

Fig 1: Identifying Special Tools (1 Of 2)
G02207621Courtesy of FORD MOTOR CO.

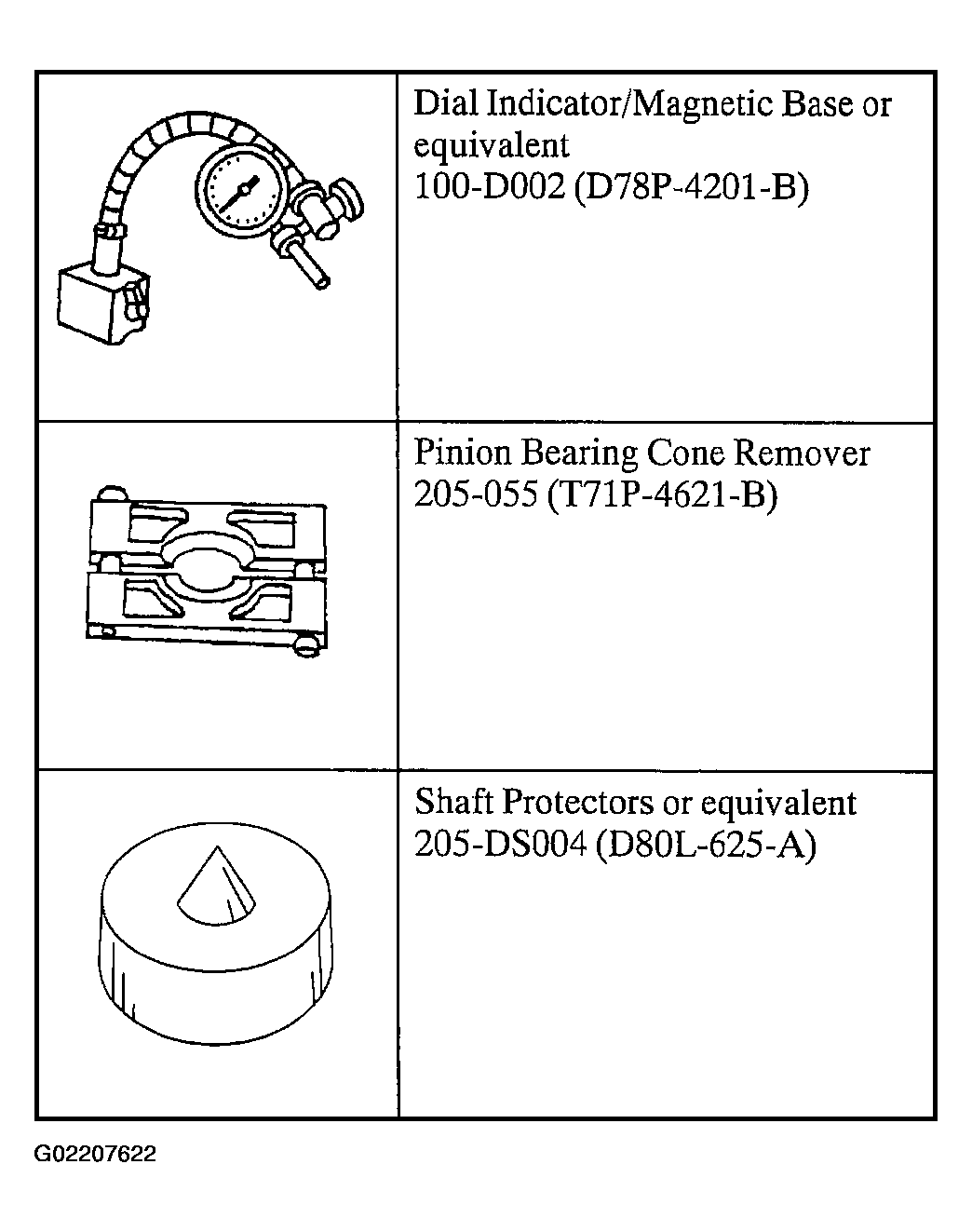

Fig 2: Identifying Special Tools (2 Of 2)
G02207622Courtesy of FORD MOTOR CO.

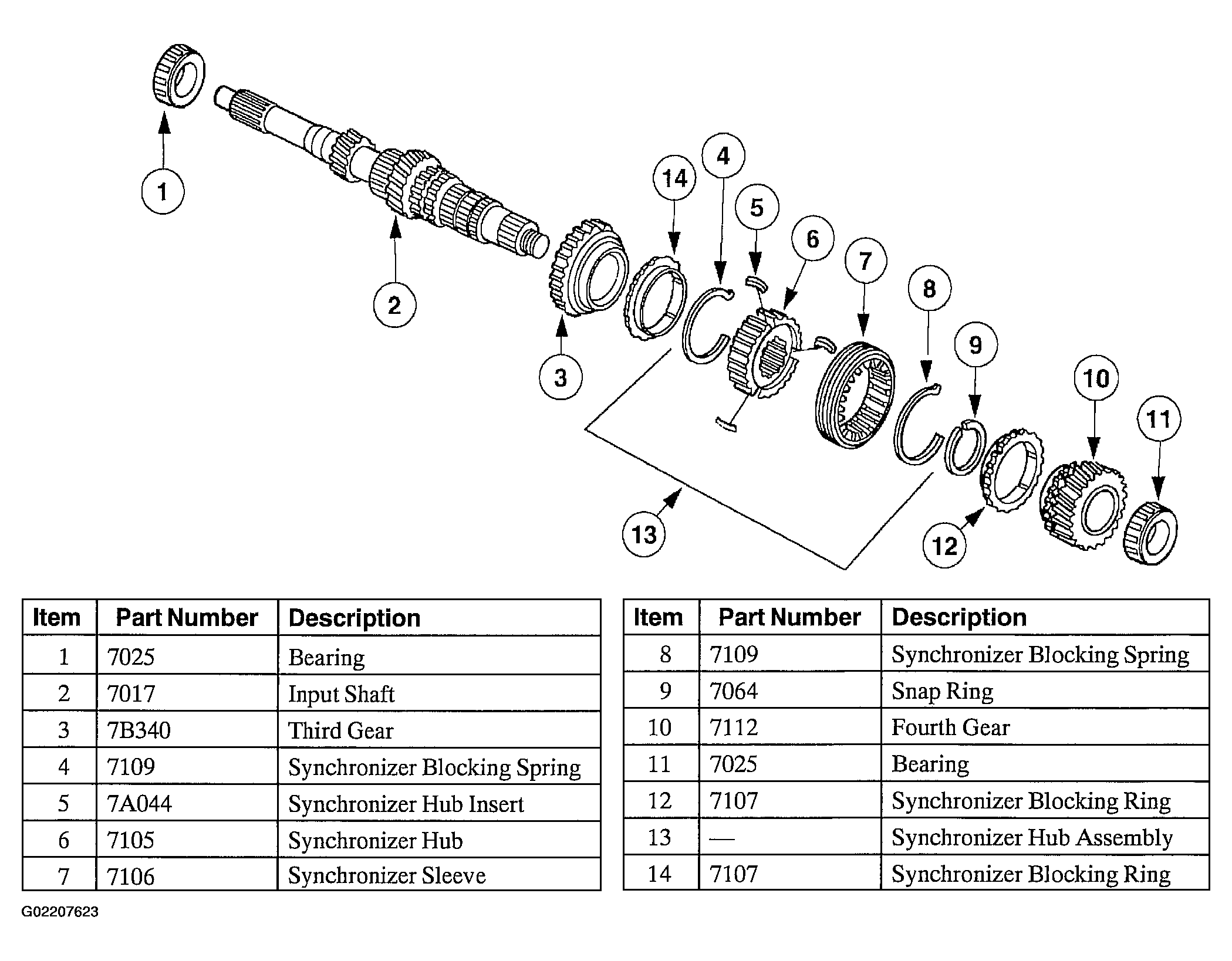

Fig 3: Identifying Input Shaft Components
G02207623Courtesy of FORD MOTOR CO.
